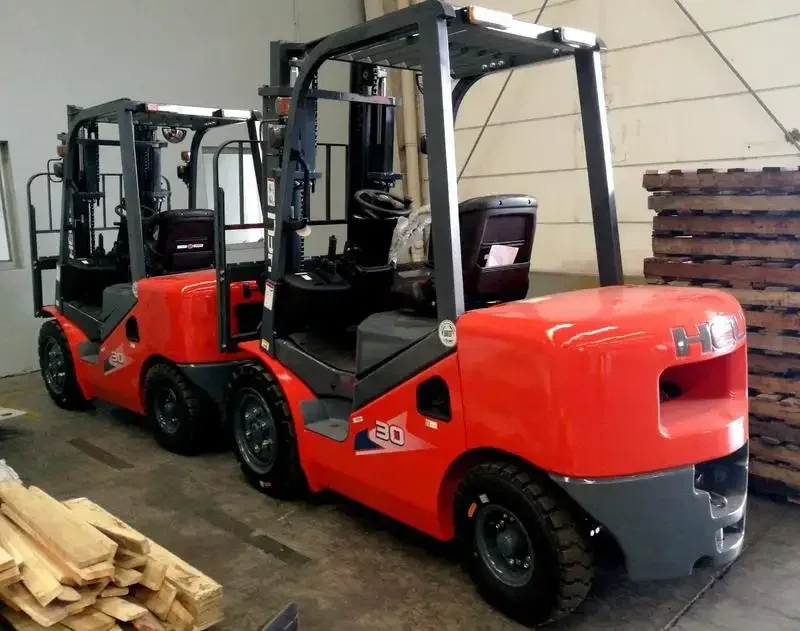

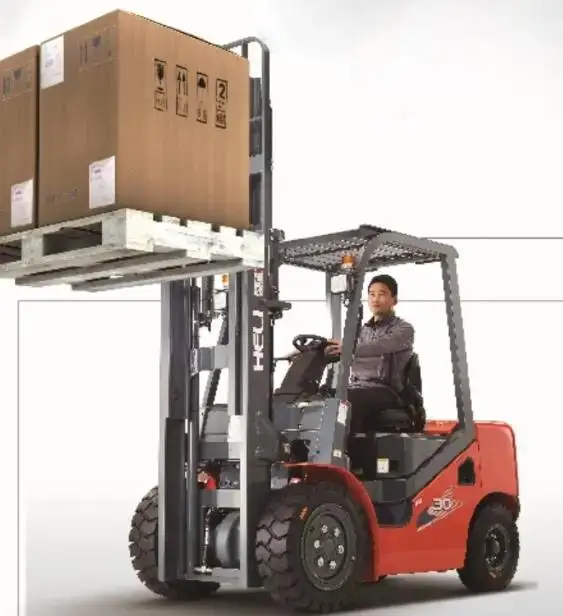

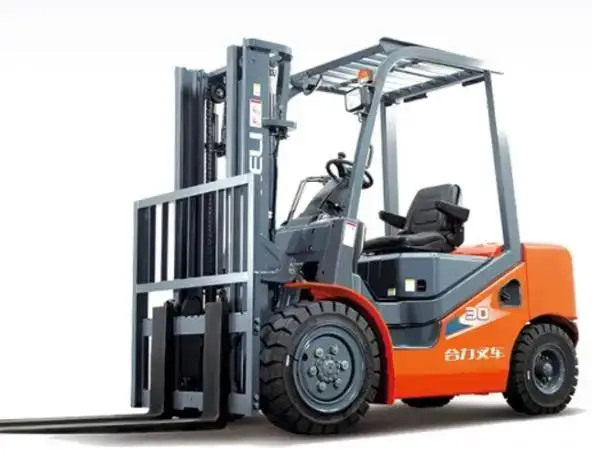

Product Description
We are professional in forklift
Specification
|
modle
|
CPCD30
|
CPCD35
|
CPC30
|
CPC35
|
|||||
|
Powe type
|
Diesel/gasoline/LPG
|
||||||||
|
Rated load
|
3000
|
3500
|
3000
|
3500
|
|||||
|
Load center distance
|
500
|
||||||||
|
Lift height
|
3000
|
||||||||
|
Free lift height
|
155
|
||||||||
|
Fork size
|
L×W×T
|
1070×125×45
|
1070×125×50
|
1070×125×45
|
1070×125×50
|
||||
|
Mast tilt angle
|
FR/RR
|
8/10
|
|||||||
|
Minimum turning radius
|
2550
|
2570
|
2550
|
2570
|
|||||
|
Minimum right angle stacking aisle width
|
4025
|
4045
|
4025
|
4045
|
|||||
|
Minimum right angle aisle width
|
2750
|
2770
|
2750
|
2770
|
|||||
|
Minimum ground clearance
|
Frame center(no load)
|
140
|
|||||||
|
Mast Bottom（no load）
|
130
|
||||||||
|
Height of overhead guard
|
2090
|
||||||||
|
Overhang (FR)
|
475
|
485
|
475
|
485
|
|||||
|
Maximum travel speed
|
Full load
|
19
|
19
|
19
|
19
|
||||
|
No load
|
19
|
20
|
19
|
20
|
|||||
|
Maximum lift speed
|
Full load
|
560
|
430
|
560
|
430
|
||||
|
No load
|
570
|
450
|
570
|
450
|
|||||
|
Maximum drawbar pull
|
Full load
|
20
|
28
|
20
|
28
|
||||
|
Maximum gradeability
|
15
|
||||||||
|
Overall length
|
Without forks
|
2765
|
2810
|
2765
|
2810
|
||||
|
Overall width
|
1230
|
||||||||
|
Mast height at maximum lift (with backrest)
|
4260
|
4260
|
4260
|
4260
|
|||||
|
Mast lowered height
|
2075
|
2075
|
2075
|
2075
|
|||||
|
Tires
|
Front wheel
|
28×9-15-14PR
|
28×9-15-14PR
|
||||||
|
Rear wheel
|
6.50-10-10PR
|
||||||||
|
Wheelbase
|
1760
|
||||||||
|
Tread
|
Front wheel/rear wheel
|
1000/970
|
|||||||
|
Self weight
|
Without load
|
4140
|
4600
|
4100
|
4560
|
||||
|
Battery
|
Voltage/capacity
|
12/80
|
|||||||
|
Engine
|
Model
|
xinchang4D29V41/Nissan K25
|
xincang4D29V41/Nissan K25
|
||||||
|
Rated output
|
36.8/2500
|
36.8/2500
|
|||||||
|
Rated torque
|
165/1600-1800
|
165/1600-1800
|
|||||||
|
Bore x stroke
|
93×105
|
93×105
|
|||||||
|
Number of cylinders
|
4
|
4
|
|||||||
|
Displacement
|
2.85
|
2.85
|
|||||||
|
Fuel tank capacity
|
55
|
||||||||
|
Transmissions (FWD/RWD)
|
1/1
manual shift |
2/2
manual shift |
|||||||
|
Operating pressure
|
18.5
|
||||||||
|
Tire type (FR/RR)
|
Pneumatic
|
||||||||
|
Number of wheels (FR/RR)
|
2/2
|
||||||||
|
Lowering speed (full load)
|
460
|
330
|
460
|
330
|
|||||
|
Lowering speed (no load)
|
430
|
330
|
430
|
330
|
|||||
|
Axle load distribution (full load) (FR/RR)
|
6426/714
|
7260/840
|
6390/710
|
7240/820
|
|||||
|
Axle load distribution (no load) (FR/RR)
|
1656/2484
|
1720/2880
|
1640/2460
|
1700/2860
|
|||||

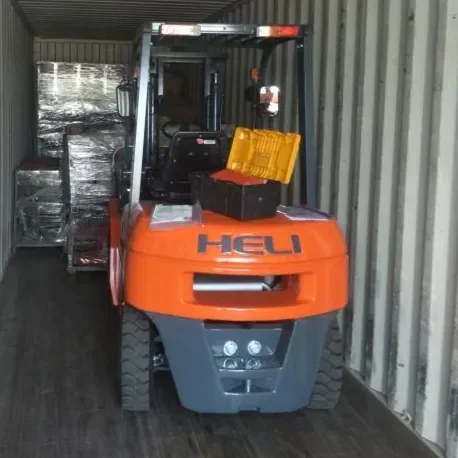

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

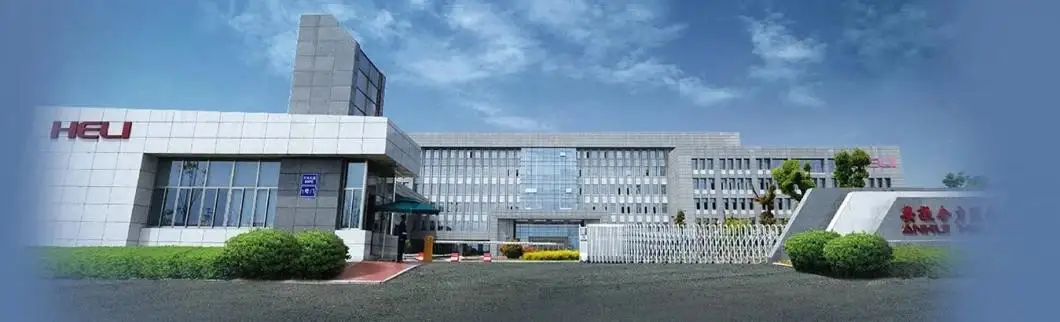

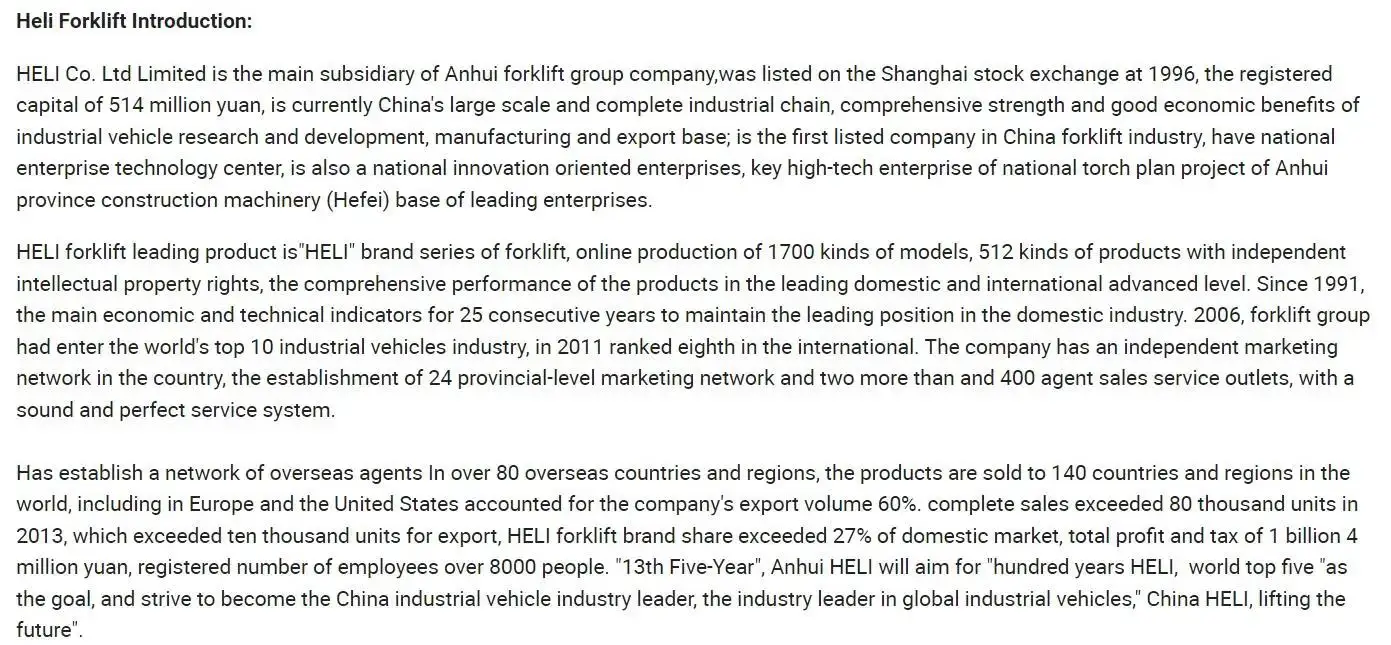

Company Profile
Customer Photos
transport

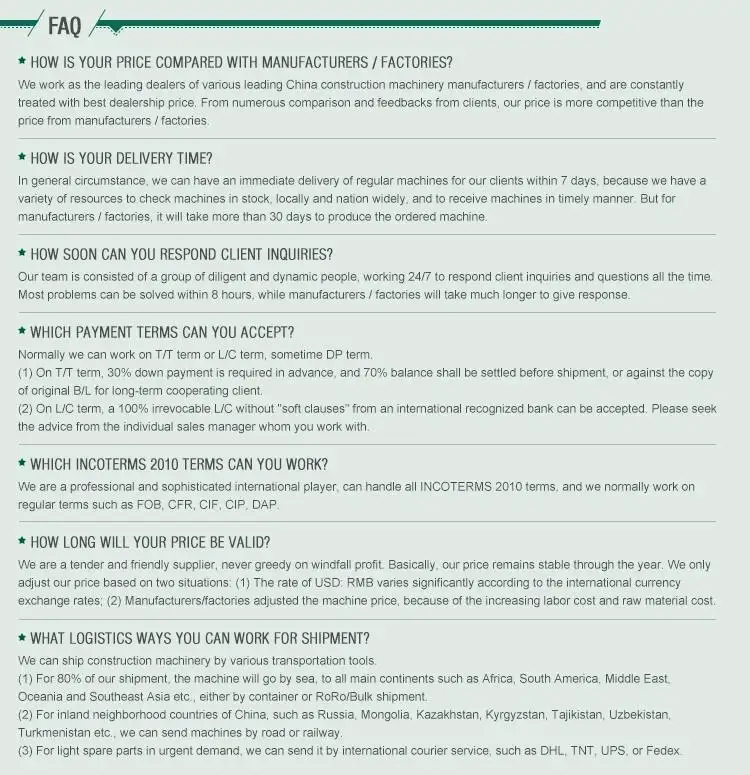

FAQ
