Product Description
|
Product Name
|
Four leg chain sling
|
||||||
|
Material
|
alloy steel
|
||||||
|
Diameter
|
6mm-32mm
|
||||||
|
Length
|
customizable
|
||||||
|
Safety Factor
|
4:1
|
||||||
|
Surface Treatment
|
polished, black, galvanized, painted
|
||||||
|
Standard
|
EN818-4, ISO 4778:2019, GB/T 20652
|
||||||
|
Components
|
master link assembly, ID tag, connecting link, sling legs, end hardware
|
||||||
|
Product Usage
|
The 4 leg Chain sling is widely used in steel mills, steel pipe plants, oil pipeline installation, construction sites, loading and unloading of goods at docks.
|
||||||

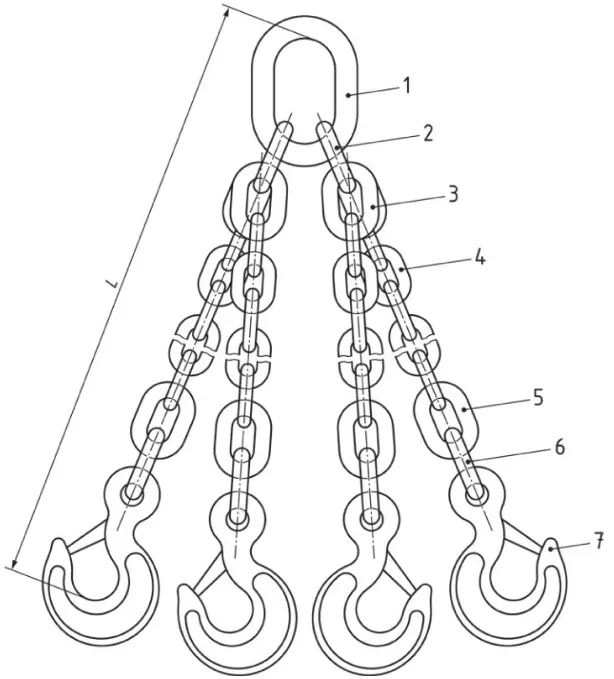

Components
1. master link 2. intermediate master link 3. joining link 4. chain 5. joining link 6. intermediate link (if required) 7. hook or other lower terminal L: nominal reach
|
Model
|
Chain Dia.
(mm)
|
W.L.L (Ton)
|
Weight of Chain
(kg/m)
|
||
|
α≤45°
|
45°＜α≤60°
|
||||
|
ZS080204-6
|
6
|
2.352
|
1.68
|
0.79
|
|
|
ZS080204-8
|
8
|
4.2
|
3
|
1.38
|
|
|
ZS080204-10
|
10
|
6.615
|
4.725
|
2.2
|
|
|
ZS080204-13
|
13
|
11.13
|
7.95
|
3.8
|
|
|
ZS080204-16
|
16
|
16.8
|
12
|
5.7
|
|
|
ZS080204-20
|
20
|
26.25
|
18.75
|
9
|
|
|
ZS080204-22
|
22
|
31.5
|
22.5
|
10.5
|
|
|
ZS080204-26
|
26
|
44.52
|
31.8
|
15.2
|
|
|
ZS080204-32
|
32
|
66.15
|
47.25
|
23
|
|
Steel alloy chain sling with hook

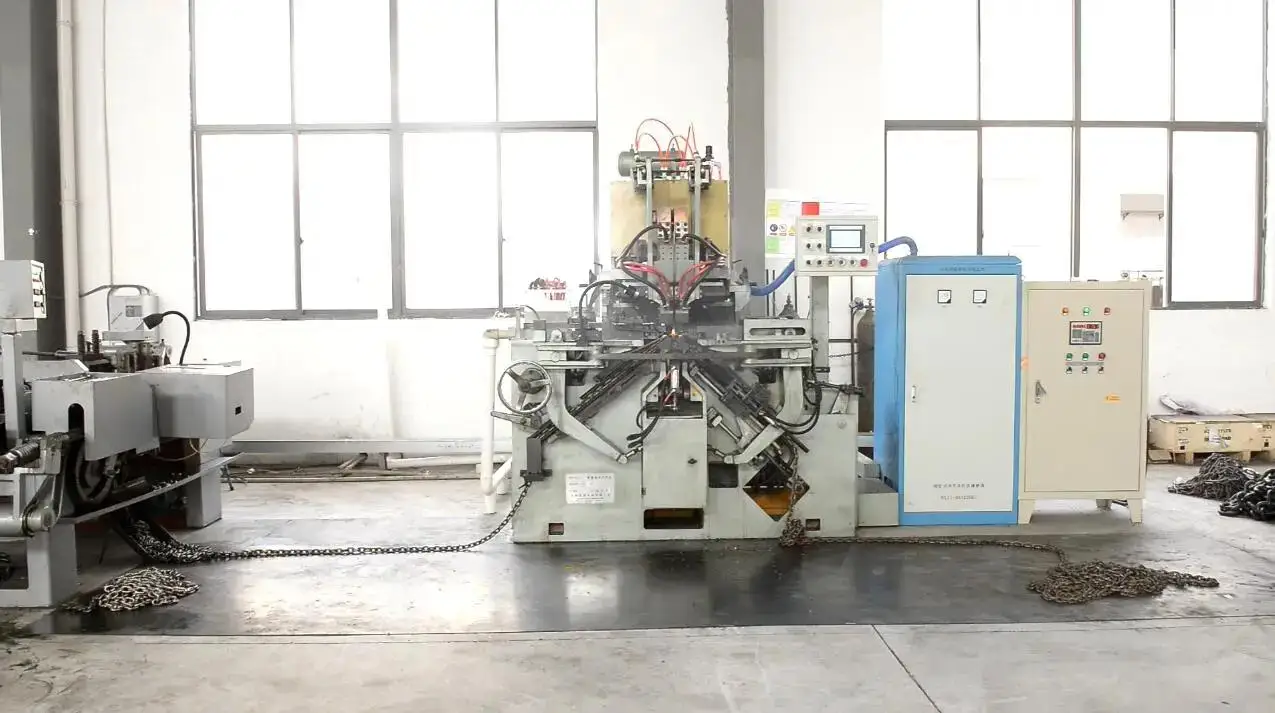

We have our own pulling force testing machine and own designing team.

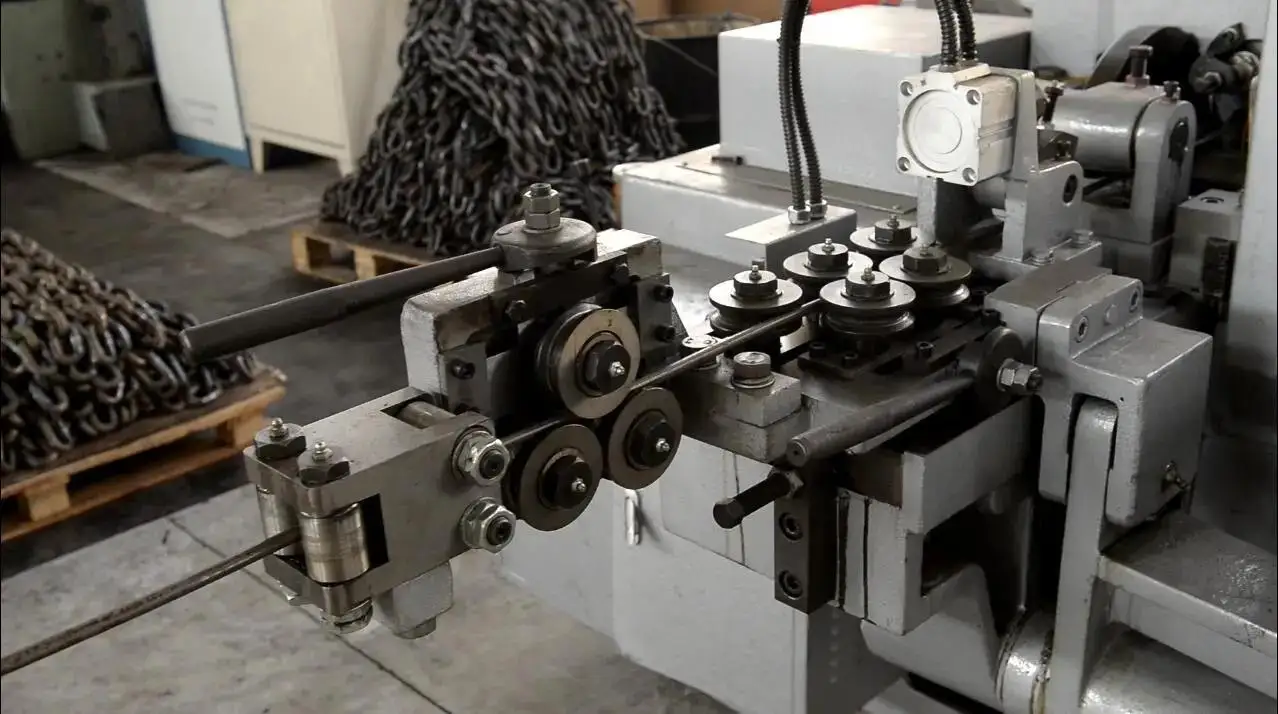

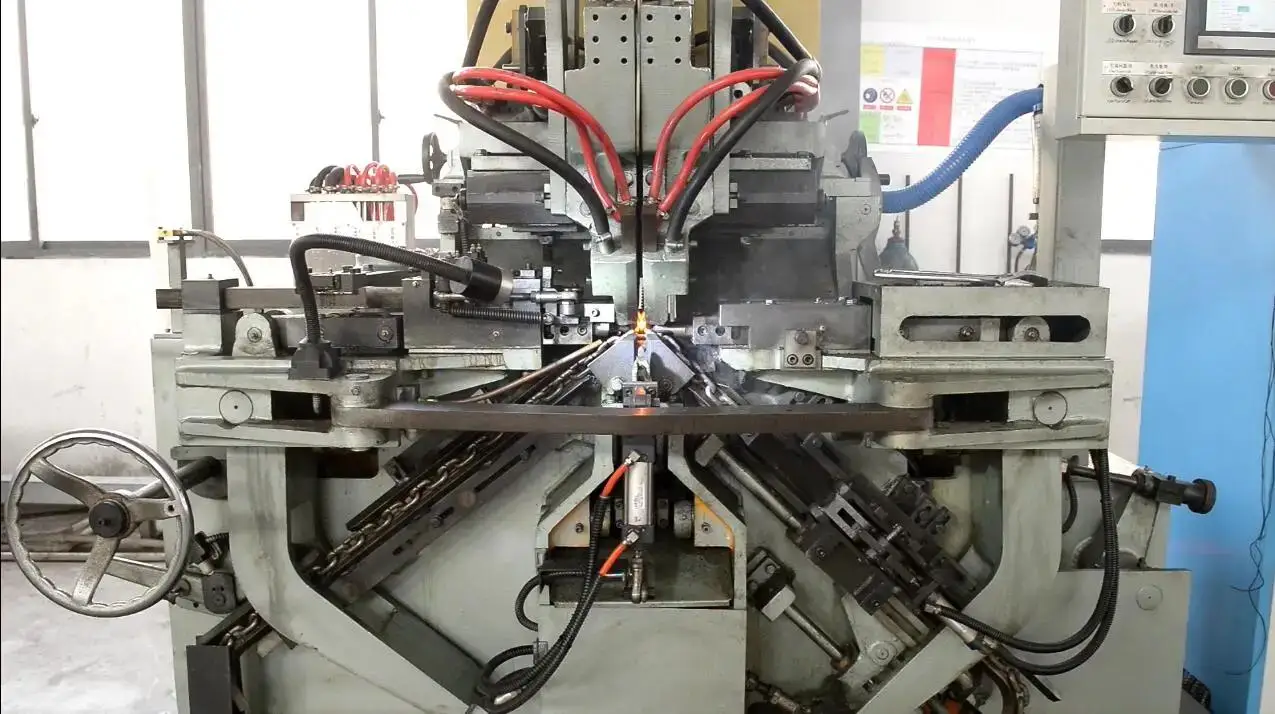

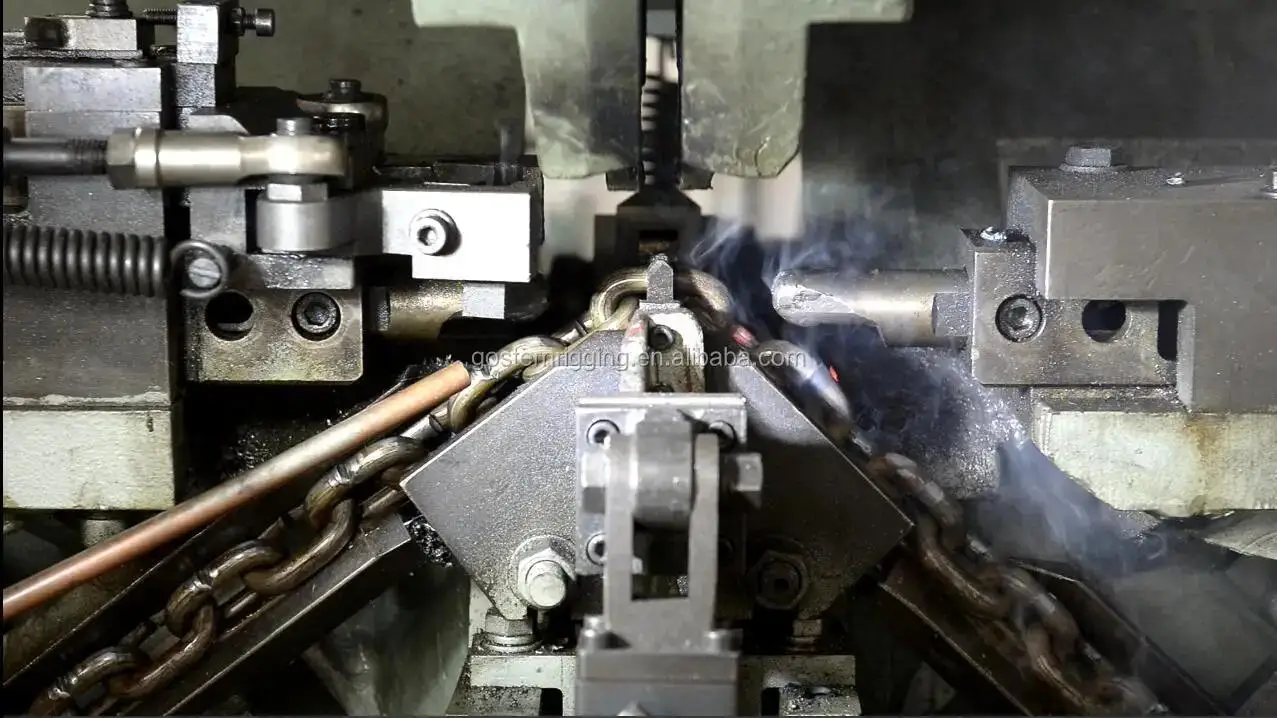

Technological process:cutting- heating- bending –flash welding – trimming -stud setting – heat treatment -proof testing -breaking testing – shot blasting- surface finished -packing.
Technological process:cutting- heating- bending –flash welding – trimming -stud setting – heat treatment -proof testing -breaking testing – shot blasting- surface finished -packing.

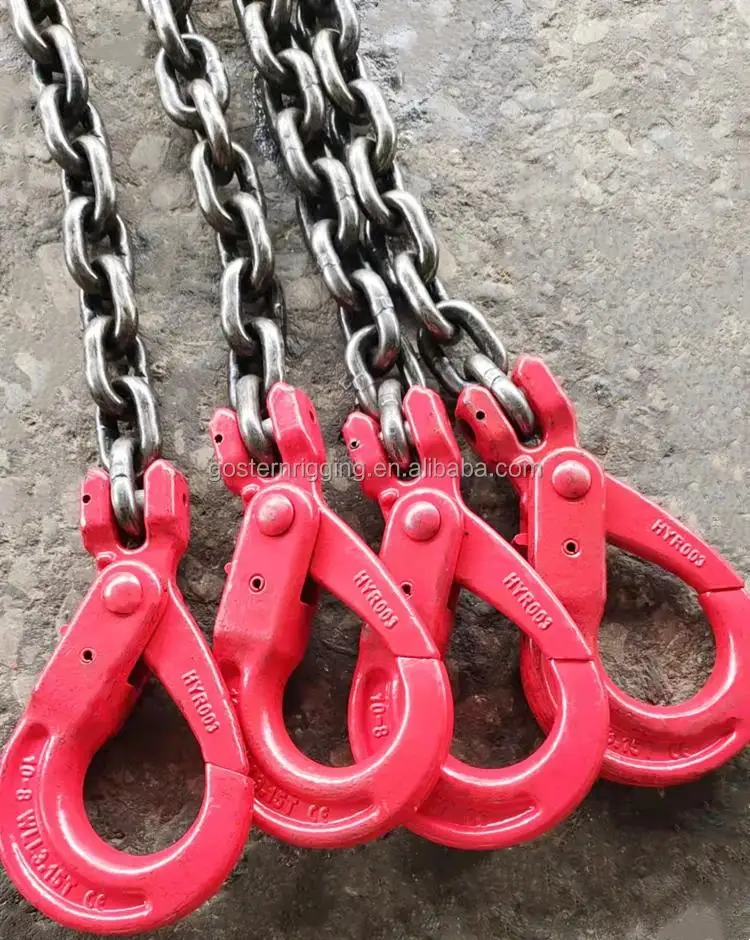

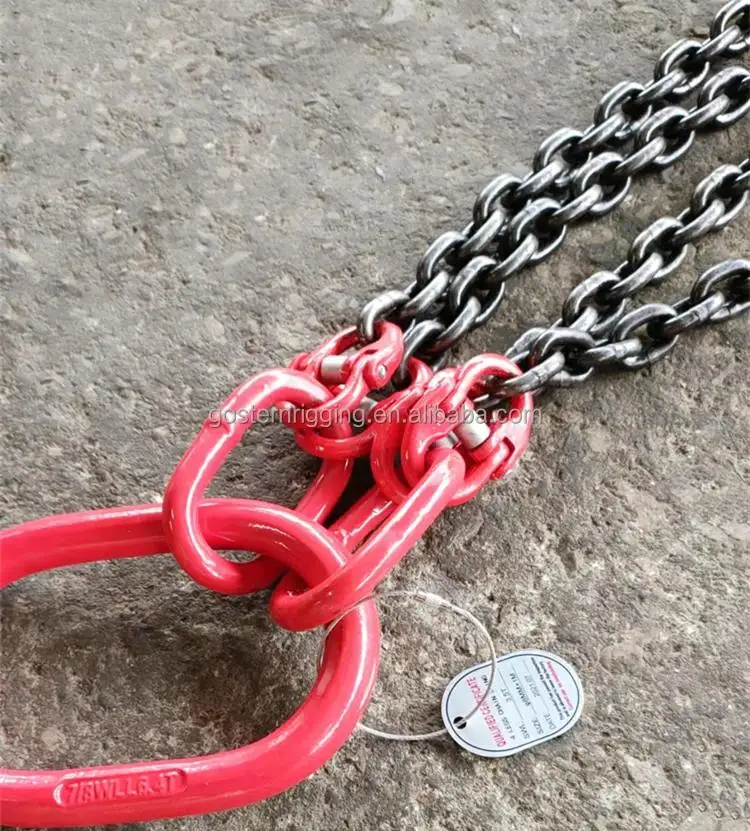

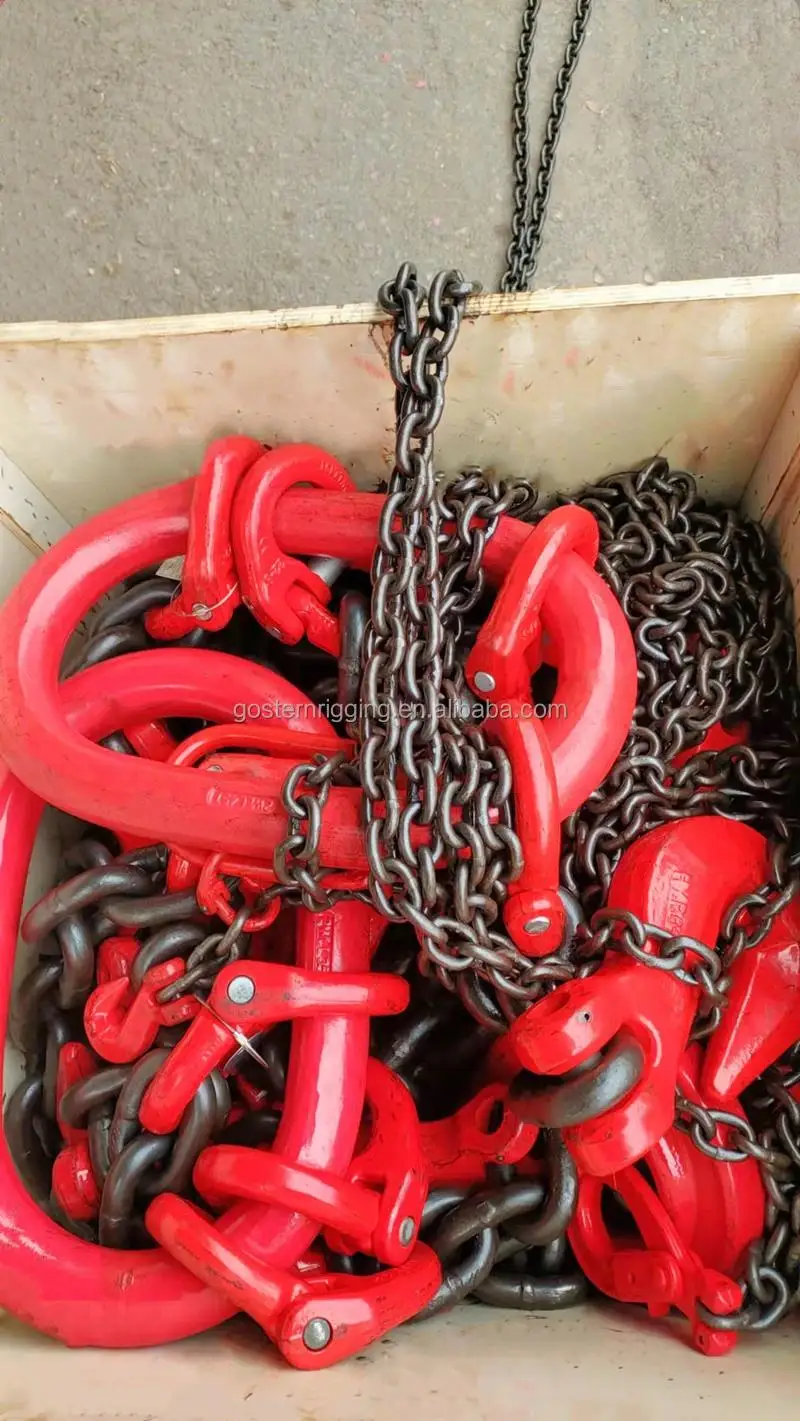

Detailed Images
When send us an inquiry, please kindly advice the strength grade( G80, G100 ),the diameter( 6mm—32mm ), the surface treatment( Self-color, polished, painted, black, galvanized ) .

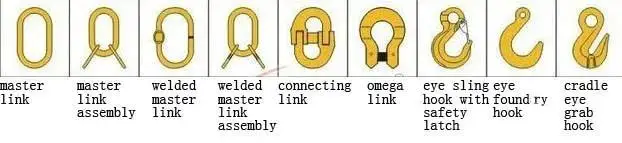

About the end of the chain ,we can supply you the following accessories.
Such as :

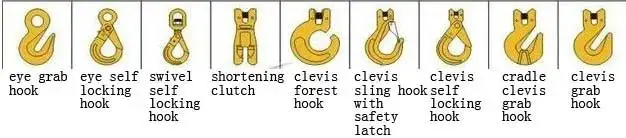

eye sling hook with safety hook,eye foundry hook,cradle eye grab hook,eye grab hook, eye self locking hook, swivel self locking hook, shortening clutch, clevis forest hook, clevis sling hook with safety latch, clevis self locking hook, cradle clevis grab hook, clevis grab hook.
Such as :
eye sling hook with safety hook,eye foundry hook,cradle eye grab hook,eye grab hook, eye self locking hook, swivel self locking hook, shortening clutch, clevis forest hook, clevis sling hook with safety latch, clevis self locking hook, cradle clevis grab hook, clevis grab hook.
Recommend Products

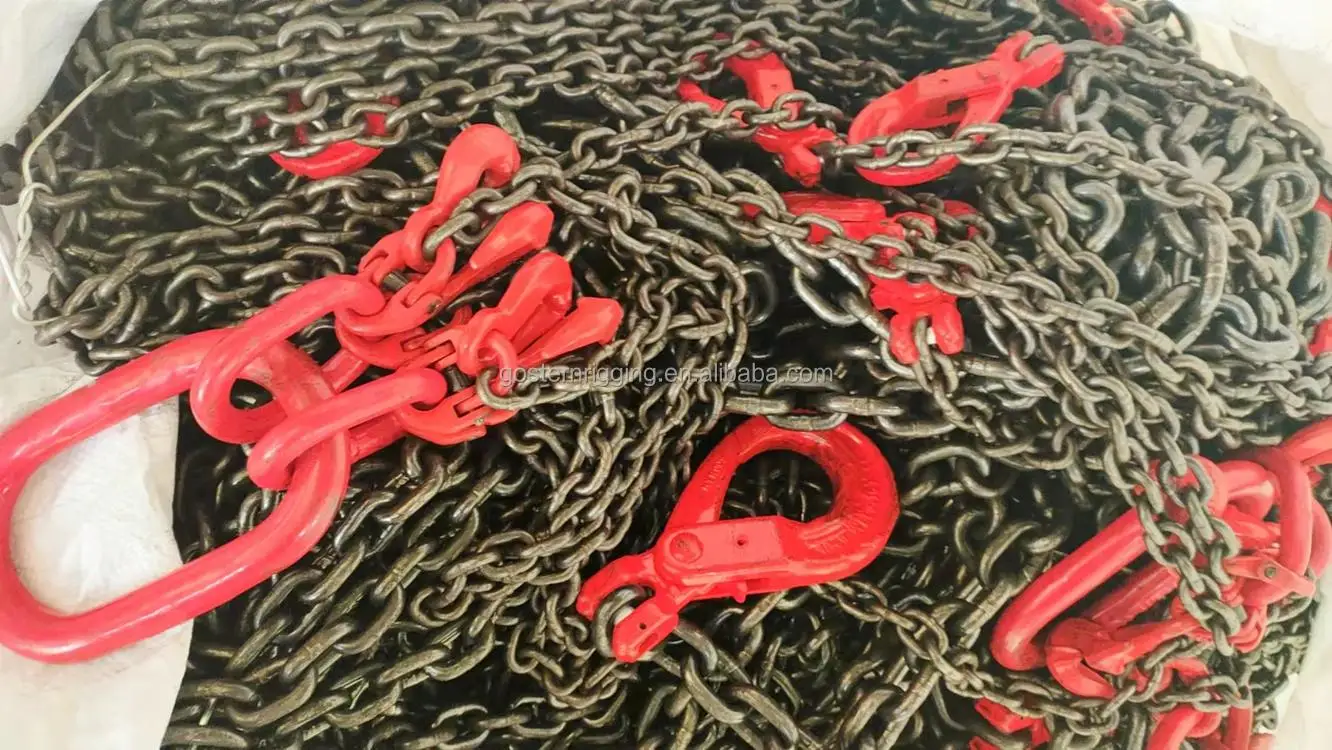

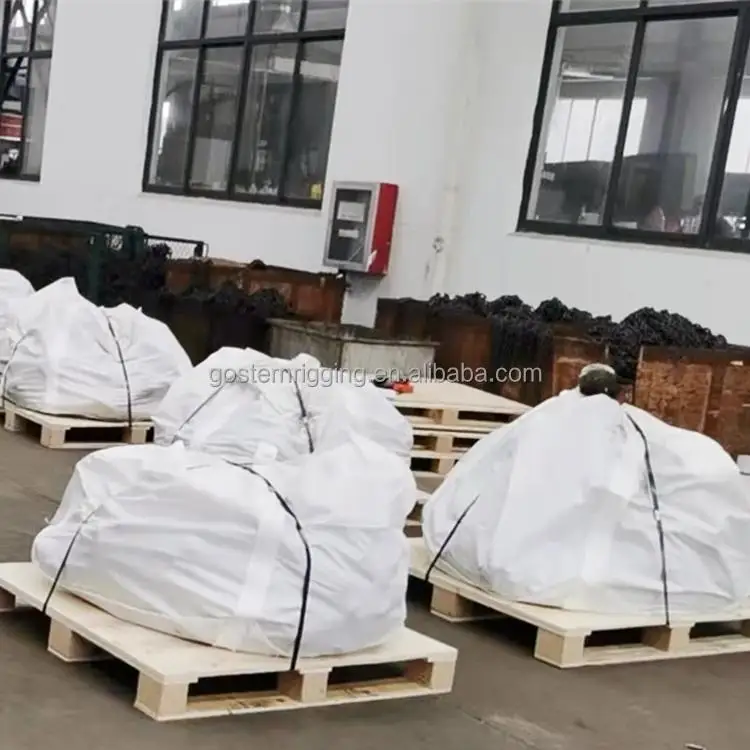

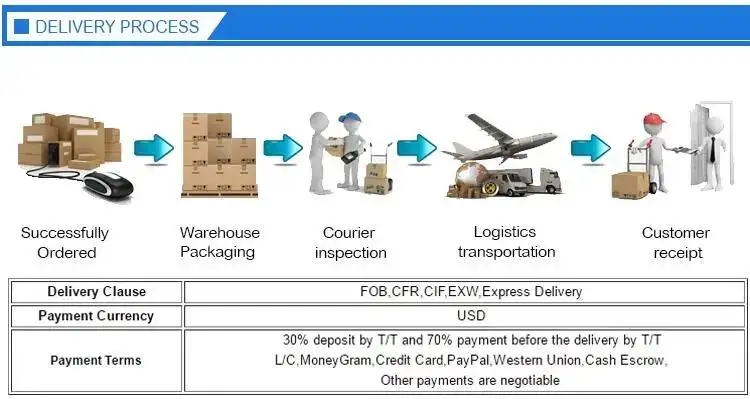

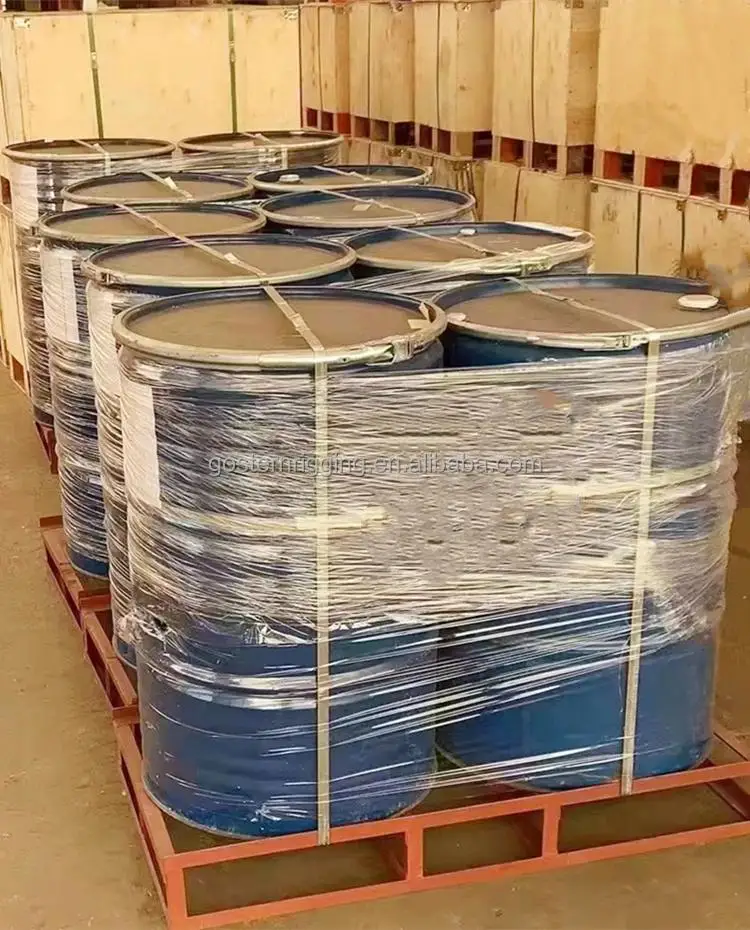

Packing&Shipping

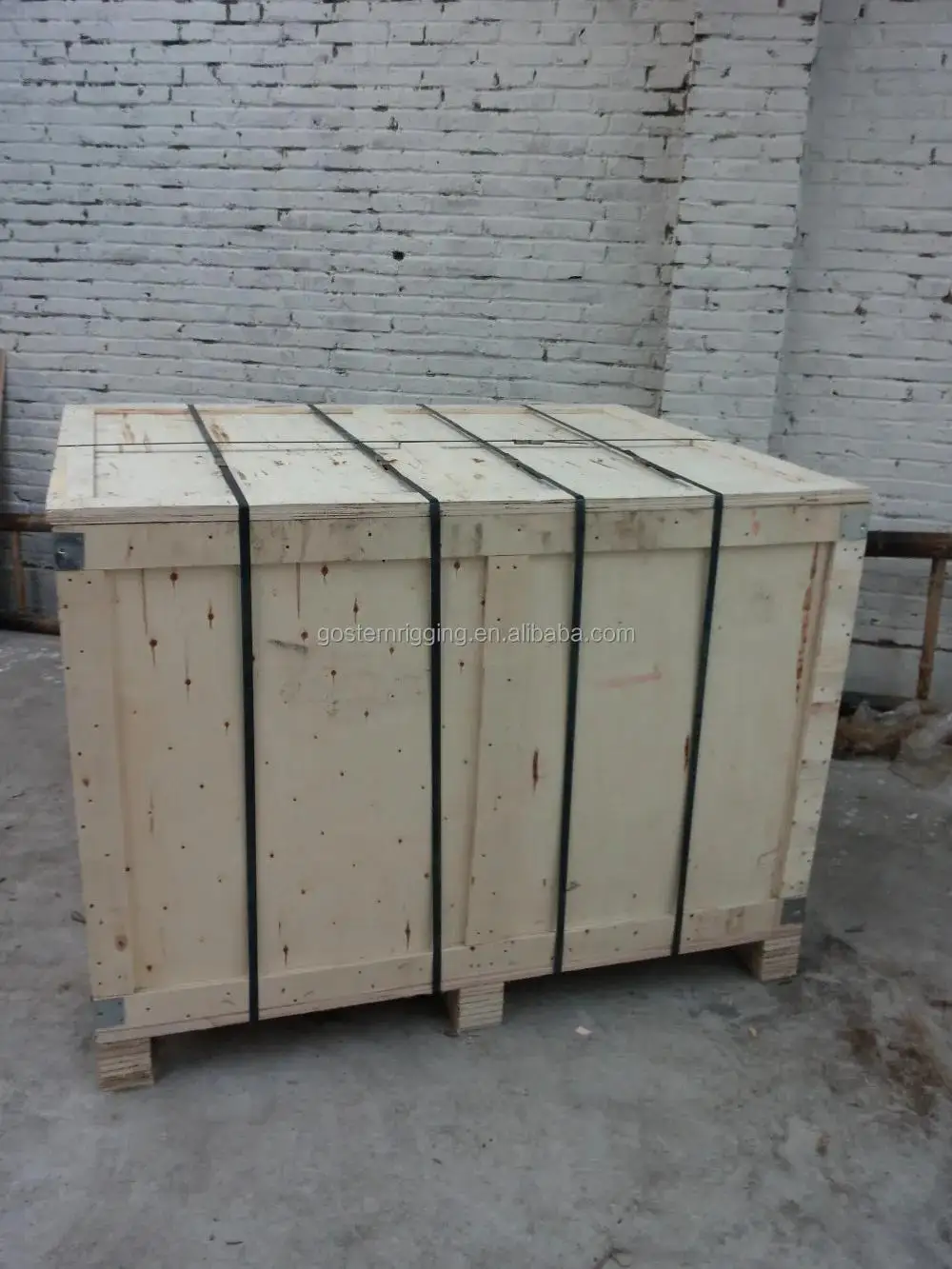

By plywood pallet, iron drum, box or according to customer’s requirements.

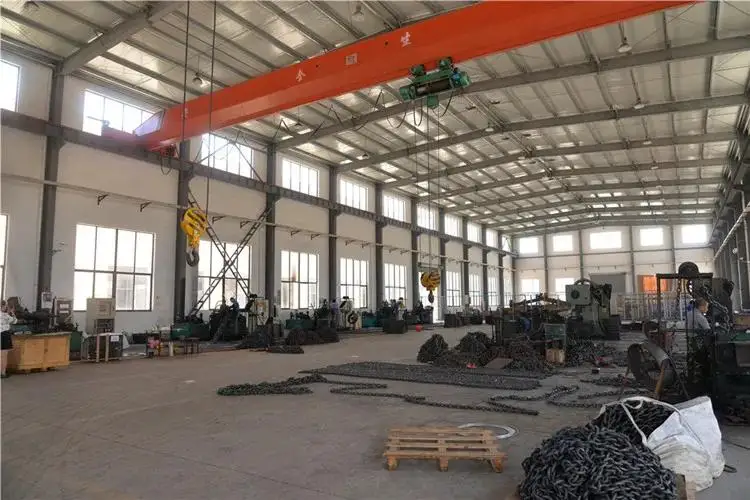

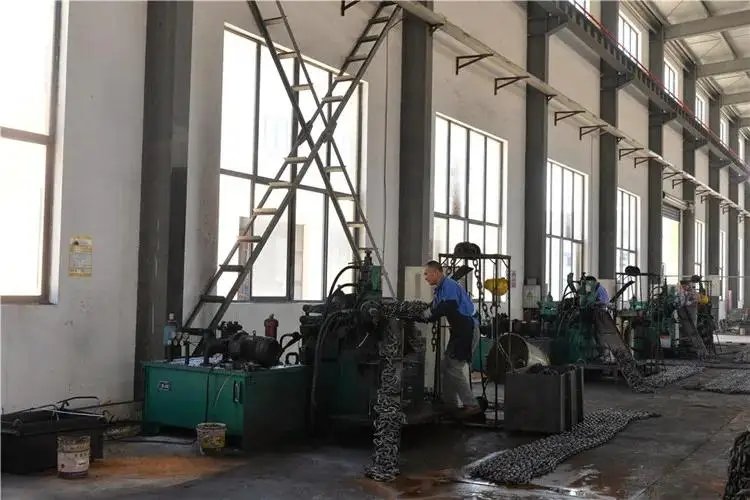

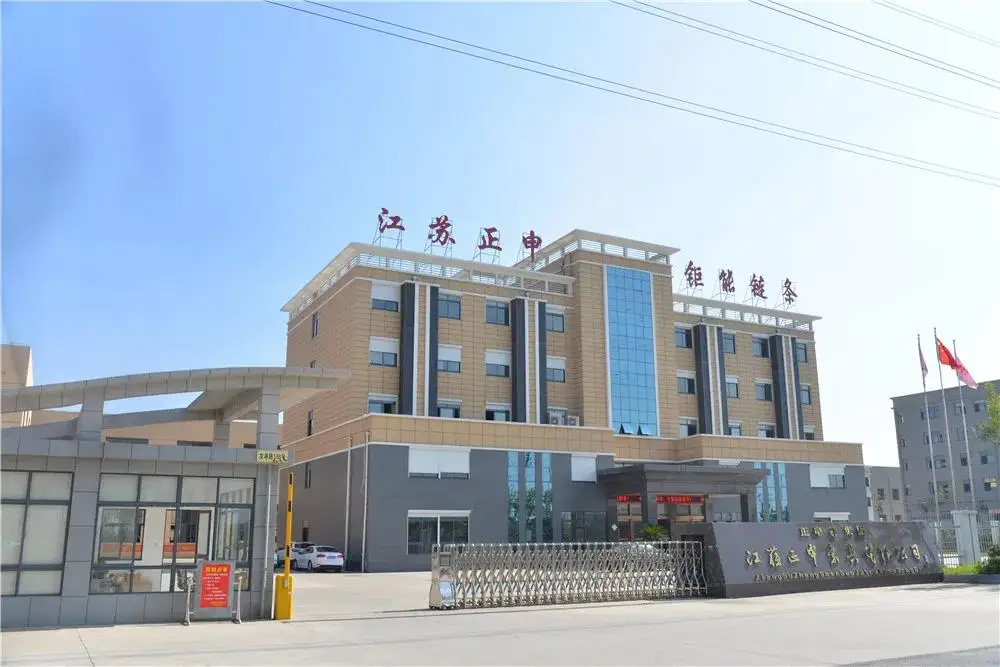

Company Profile
Jiangsu Gostern Rigging Co., Ltd. was established in the year of 2001 in China. The company covers an area of 33000 square meters, more than 600 employees. It is a specialized slings company that can design, manufacture and market. The company has a strong technical ability, scientific technology procedures, testing equipment, and a perfect quality system. The company has achieved the ISO9001-2000 quality system certification. The quality of the products has been insured by the Chinese people and property insurance companies.
Our main products are wire rope slings, webbing slings, braided ropes, ratchet straps, tow straps, chain slings, steel plate lifting clamps, hanging beams, rigging accessories. The products are widely used in machinery, metallurgy, petroleum, chemical industrial, ports, shipbuilding and other fields.
The mission of Gostern: Our goal is to keep our customers satisfied with the quality products and services. We will continue to uphold the “quality first, the credibility of the first, the price is reasonable” service concept.

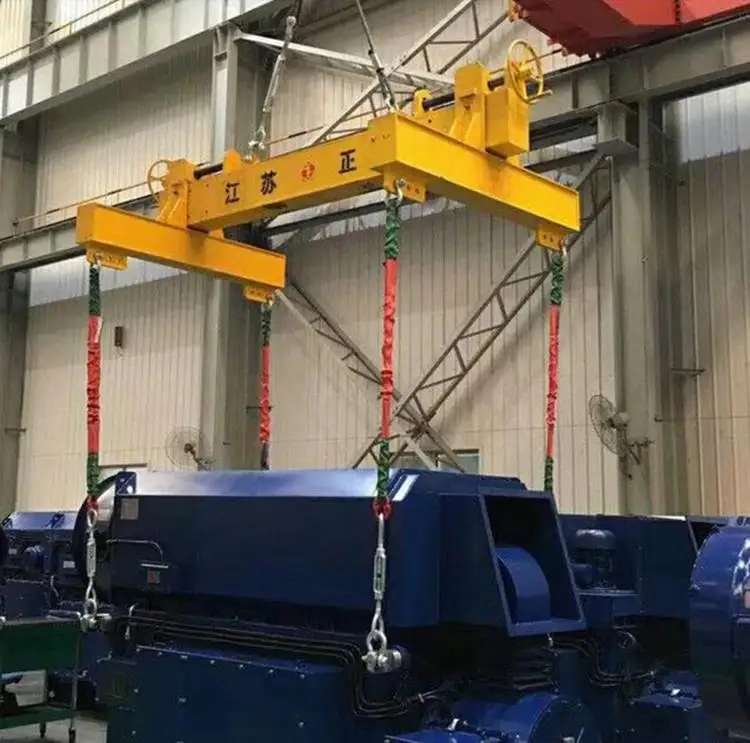

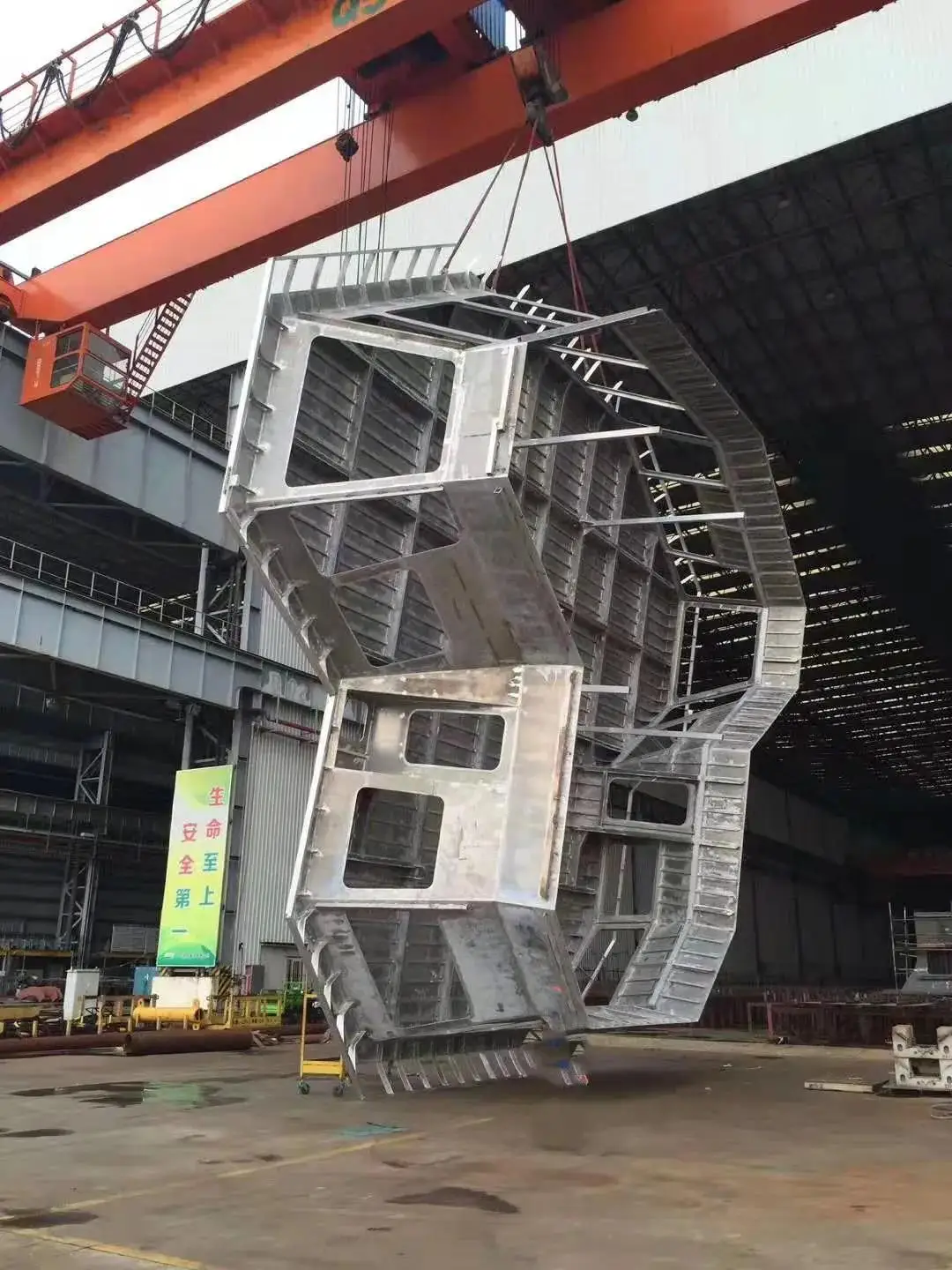

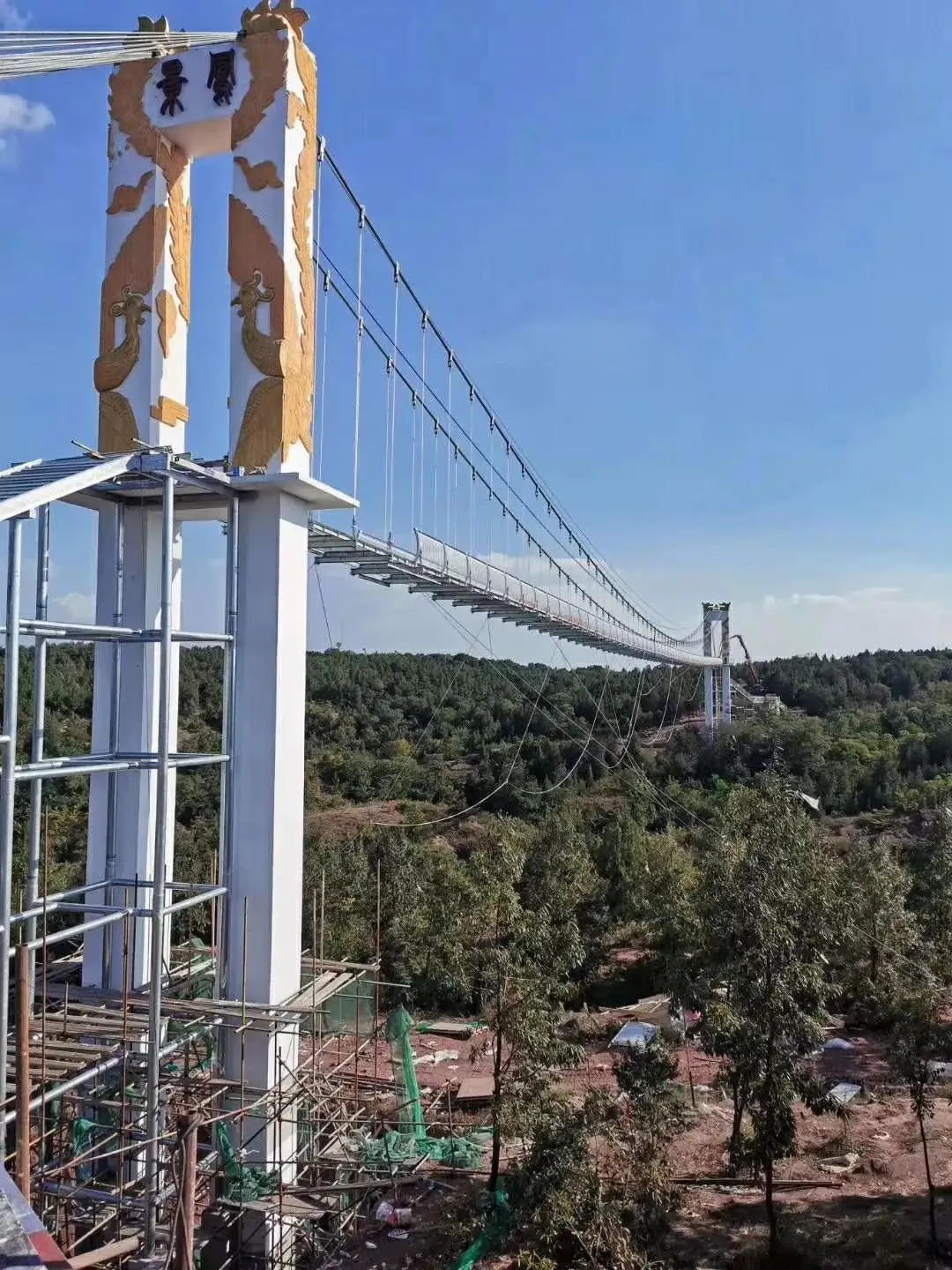

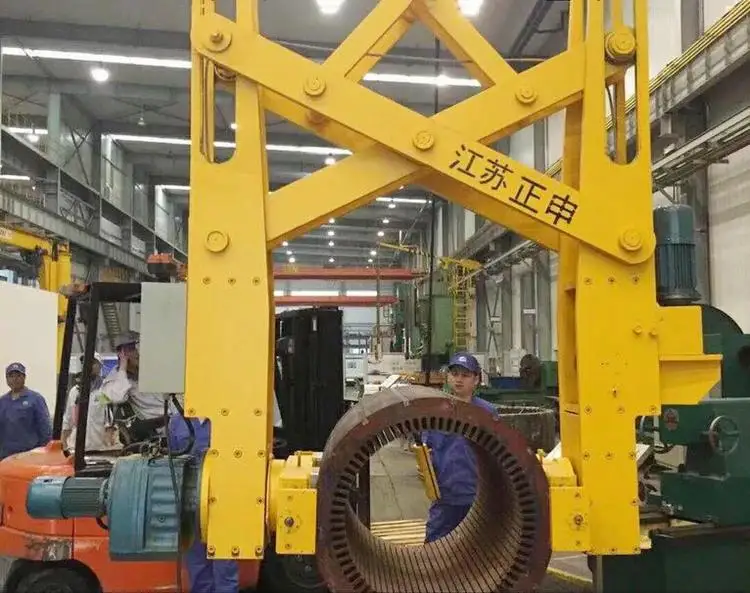

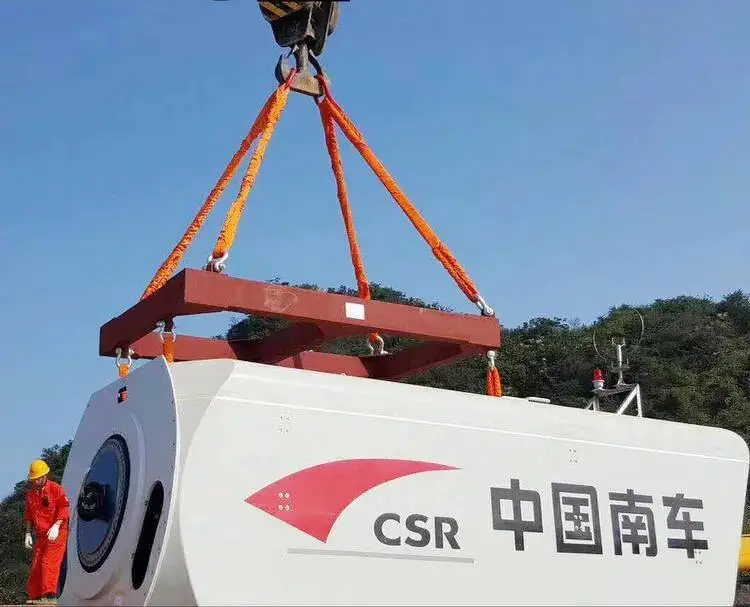

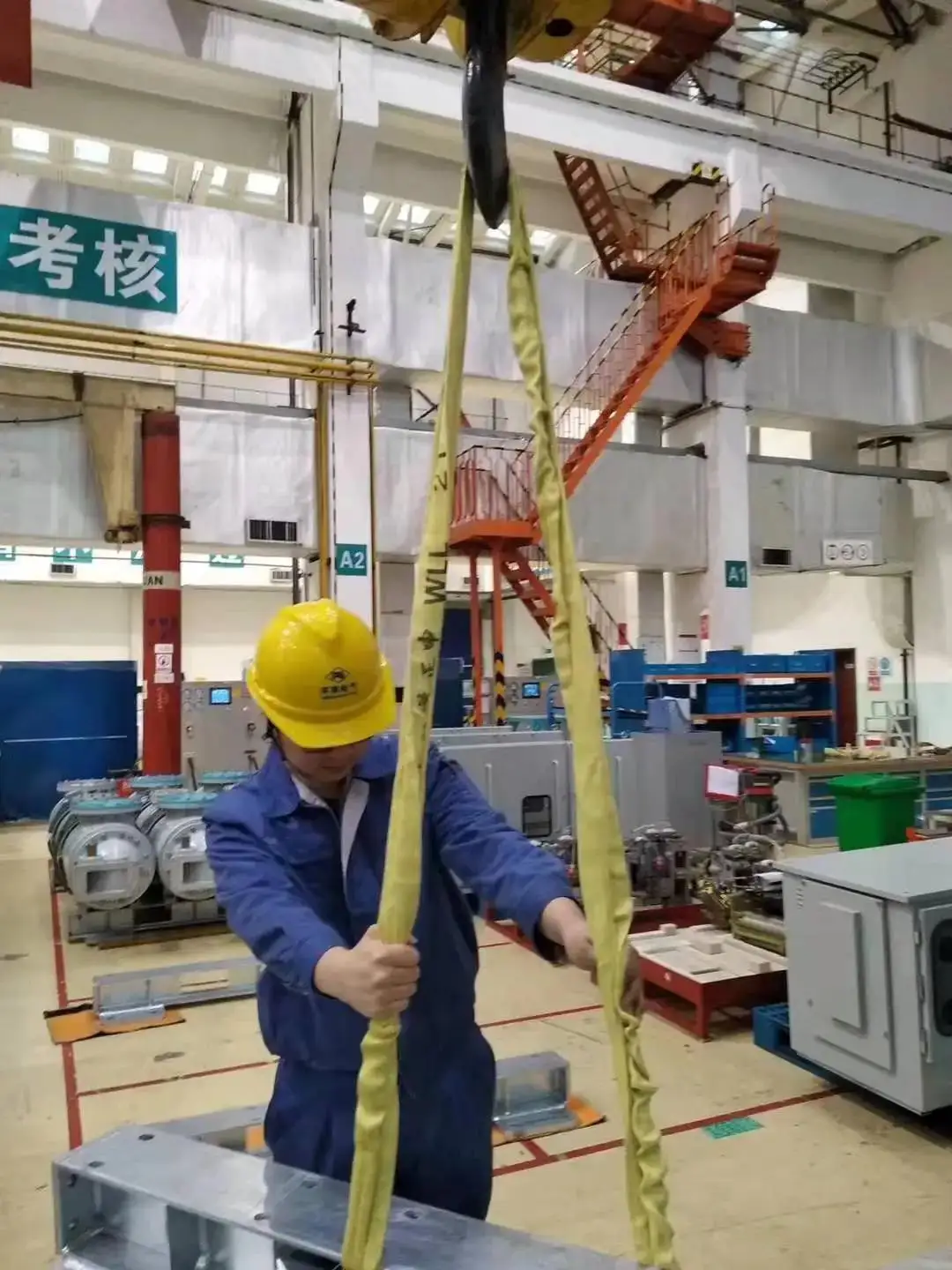

Application
Why Choose Us
Quality first, customer uppermost.
1. Any inquiries will be replied within 12 hours.
1. Any inquiries will be replied within 12 hours.
2. Our price is competitive because we are the original manufacturer.
3. OEM/ODM are acceptable.
3. OEM/ODM are acceptable.
4. We have strict test and QC system to guarantee the quality.
5. Your business relationship with us will be confidential to any third party.
6. Good after-sale service, all products have one year warranty.
