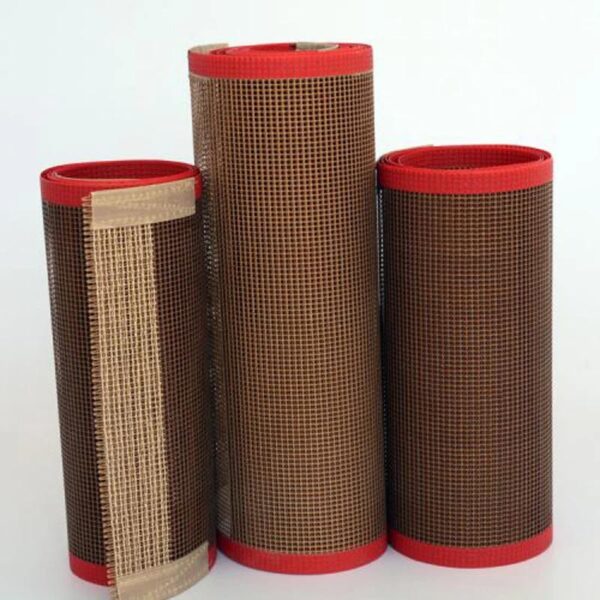

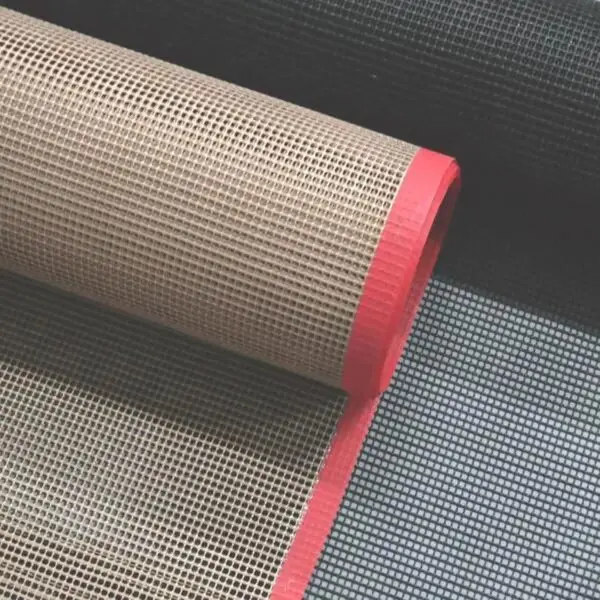

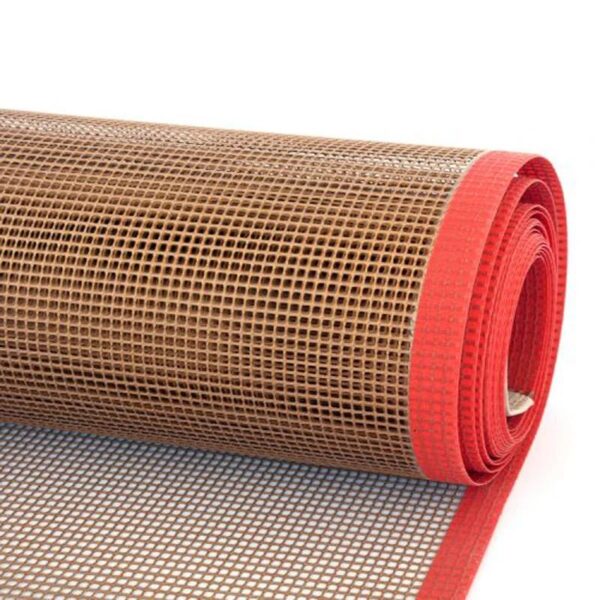

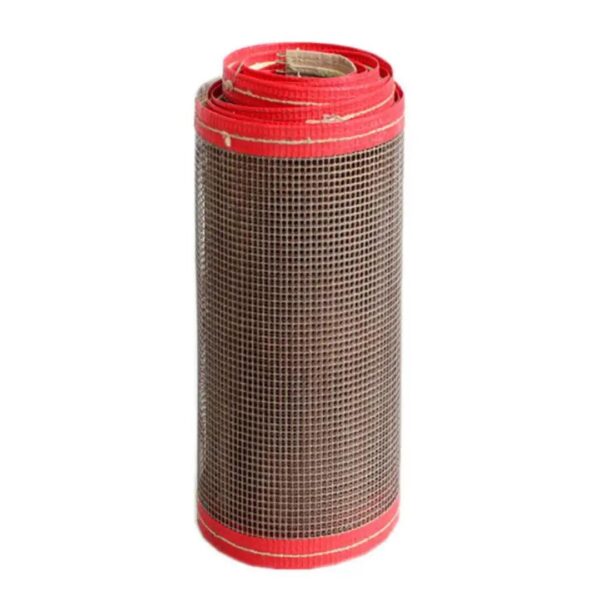

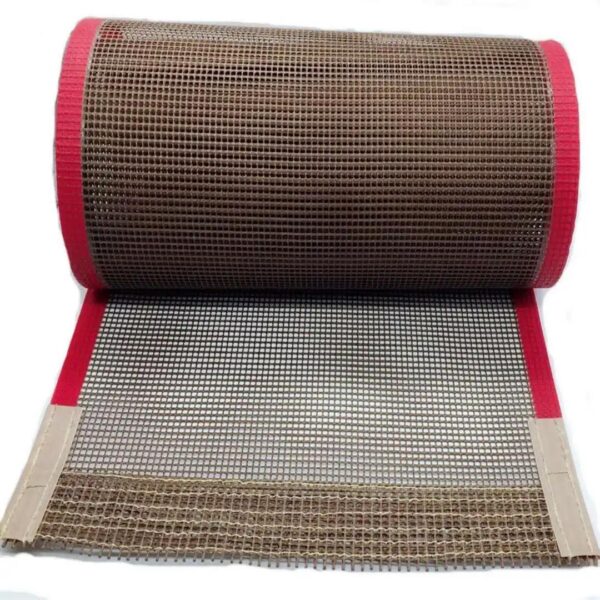

PTFE Tefloning Coated Fiberglass Mesh Conveyor Belt

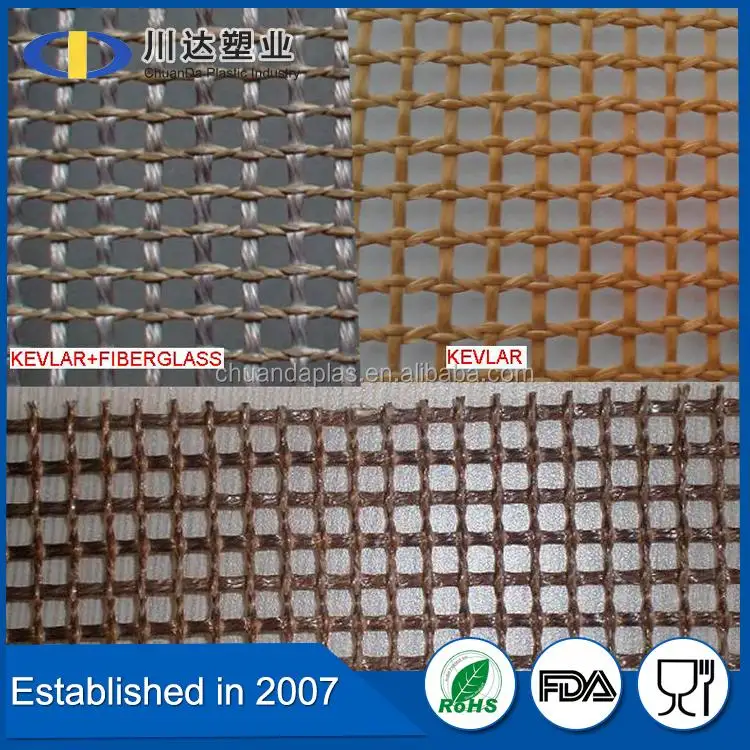

PTFE(ptfe) coated fiberglass open mesh belt select fine fiberglass,  or Nomex as basic weaving material, coated with excellent PTFE(ptfe) resin to make it into various of PTFE coated fiberglass mesh conveyor belt.



Usage for PTFE coated fiberglass mesh conveyor belt:

PTFE(ptfe) open mesh belts are used in screen printing to transport imprinted materials through drying ovens and cooling chambers. These belts are long lasting and perform well over a wide range of operating temperatures.
Fiberflon belt fabrication department can supply a wide variety of splices and edge reinforcements in order to respond customer’s specific applications.



Properties for PTFE coated fiberglass mesh conveyor belt:

1. Outstanding temperature resistance (from -170ºC to +260ºC)

2. Resistant to corrosive agents

3. Low thermal mass

4. Controlled porosity

5. Superior non-stick surface, easy to clean

6. High dielectric strength

7. Dimensional stability

8. Resistance to UV, IR and HF

9. Non-toxic

10. Superior tracking

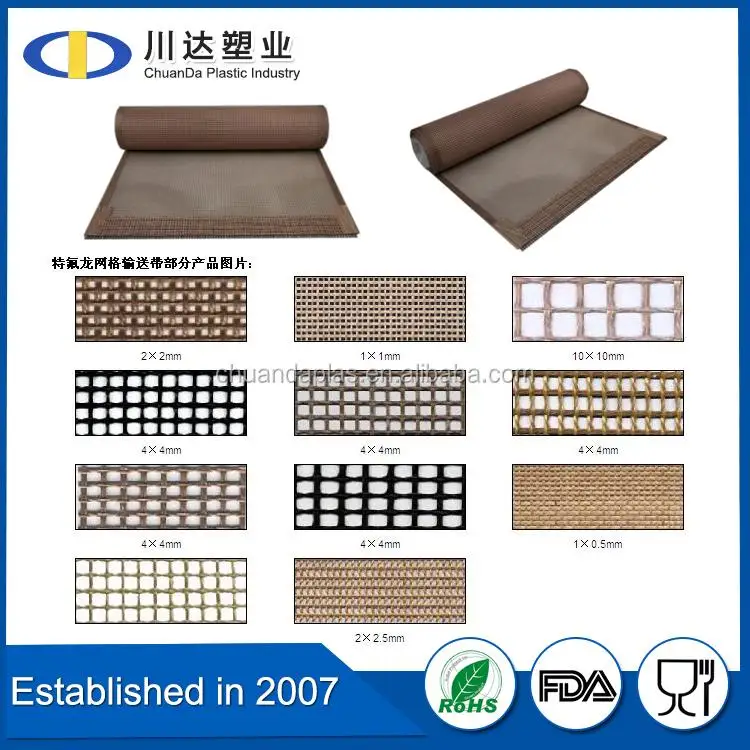

Styles and Specifications for PTFE coated fiberglass mesh conveyor belt:

Item	Mesh Size	material	Thickness	Weight	Temperature  resistance	Max Width	Tensile Strength
RD6001	1x1mm	fiberglass	0.5mm	370g/m²	-70-260°C	4000mm	310/290N/cm
RD6002	2x2mm	fiberglass	0.7mm	450g/m²	-70-260°C	4000mm	350/310N/cm
RD6003	4x4mm	fiberglass (black)	1.0mm	400g/m²	-70-260°C	4000mm	390/320N/cm
RD6004	4x4mm	fiberglass	1.0mm	450g/m²	-70-260°C	4000mm	390/320N/cm
RD6007	4x4mm	+ fiberglass	1.2mm	600g/m²	-70-260°C	4000mm	895/370N/cm
RD6008	4x4mm	fiberglass	1.2mm	580g/m²	-70-260°C	4000mm	560/360N/cm
RD6010	4x4mm		1.0mm	500g/m²	-70-260°C	4000mm	900/600N/cm
RD6012	4x4mm	fiberglass (black)	1.0mm	550g/m²	-70-260°C	4000mm	395/370N/cm
RD6013	10x10mm	fiberglass	1.0mm	450g/m²	-70-260°C	4000mm	360/300N/cm
RD6014	0.5x1mm	fiberglass	0.5mm	420g/m²	-70-260°C	4000mm	310/290N/cm
RD6015	2×2.5mm	fiberglass	0.9mm	600g/m²	-70-260°C	4000mm	390/320N/cm
