No.
|
Part
|
Material
|
Function
|
|
1
|
Union
|
Material according to Request
|
Connection
|
|
2
|
Inner & Outer Rubber
|
NR, EPDM, Neoprene, IIR Butyl Rubber, NBR Buna-N, FKM, PTFE, etc.
|
Body
|
|
3
|
Cord Fabric
|
Nylon Cord Fabric
|
Body Carcass
|
|
4
|
Reinforcing Ring
|
Steel Wire
|
Reinforcement
|
|

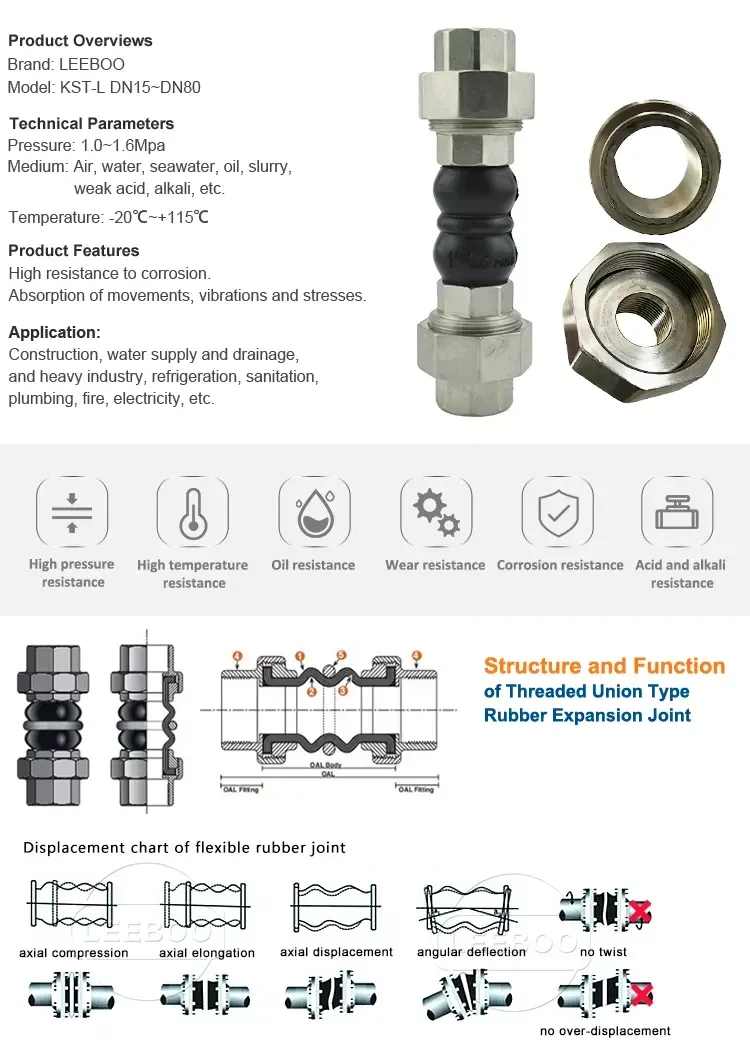

Technical Conditions of Threaded Union Type Rubber Expansion Joint
|
||||
|
Item
|
KST-L-10
|
KST-L-16
|
||
|
Working pressure
|
1.0Mpa
|
1.6 Mpa
|
||
|
Burst pressure
|
2.0Mpa
|
3.0 Mpa
|
||
|
Vacuum
|
53.3Kpa(400)
|
86.7 Kpa (650)
|
||
|
Applicable Temperature
|
-20°C~+115°C(-30°C~+250°C under special conditions)
|
|||
|
Applicable Medium
|
Air, water, seawater, oil, slurry, weak acid, alkali, etc.
|
|||
|
Nominal Diameter
|
Length
(mm)
|
Axial Displacement(mm)
|
Horizontal Deflection
(mm)
|
Angular Deflection
(a1+a2) °
|
||||
|
mm
|
inch
|
Type B
|
Extension
|
Compression
|
||||
|
15
|
0.5
|
200
|
5
|
10
|
20
|
45
|
||
|
20
|
0.75
|
200
|
5
|
10
|
20
|
45
|
||
|
25
|
1
|
200
|
5
|
10
|
20
|
45
|
||
|
32
|
1.25
|
200
|
5
|
10
|
20
|
45
|
||
|
40
|
1.5
|
200
|
5
|
10
|
20
|
45
|
||
|
50
|
2
|
220
|
5
|
10
|
20
|
45
|
||
|
65
|
2.5
|
240
|
5
|
10
|
20
|
45
|
||
|
80
|
3
|
285
|
5
|
10
|
20
|
45
|
||
For OEM orders with special requirement, threaded unions should be made according to customers’ drawings. Thread standard can be ISO, ASME, BS, JIS, etc. Material of rubber body can be NR natural rubber, EPDM, Neoprene, IIR butyl rubber, NBR Buna-N, FKM, etc.
Our company is a professional entity production enterprise integrating scientific research, production and commerce. Located between Zhengzhou and Luoyang, mainly produces all kinds of rubber joints, metal joints, fabric joints, etc. Our products have passed ISO9001:2015 quality management system certification,and we provide solutions in the whole process.
LEEBOO brand — “China Famous Brand”.
Our main products : shock absorber, rubber expansion joint, bellow joint,rubber duckbill check valve, dismantling joint, metal hose,valves, etc.
First level supplier to National Petroleum Corporation in 2008.
Our service:
1. Full technical support from drawing design to after-sales;
2. Quality inspection report;
3. Product customization/Packaging customization/Pattern and Logo customization.
We are based in Henan, China, start from 2007,sell to Domestic Market(57.00%),MidEast(10.00%), Africa(8.00%), Oceania(6.00%),
Southeast Asia(6.00%), Eastern Asia(6.00%),
Southern Europe(4.00%), North America(2.00%), Eastern Europe(1.00%).
There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Pipe Fittings (Rubber Joint,Expansion Joint,Compensator,Water-proof Sleeve,Duck-billed Valve) (Don’t Involve Pressure)
4. Why should you buy from us not from other suppliers?
Manufacturer since 1997.
Small orders / OEM orders acceptable. Mainly produce special size and length rubber joint.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,
Russian,Korean,Hindi,Italian
A: Yes, we can produce by your samples or technical drawings.
Q: Do you accept small quantity order?
A: Yes, MOQ 1 pc for standard size, 5 pcs for customized size.
Q: How can you guarantee the quality or any warranty?
A: Under the correct installation and use, the warranty of our products is 1 year.
Q : Are you trading company or manufacturer?
A: We are manufacturer of rubber expansion joint,bellow joint, rubber duckbill check valve,dismantling joint with more than
18-year experience.
Q: What is your payment terms?
A: Usually T/T(30% as deposit, the rest 70% will be paid before delivery). L/C, Western Union, Paypal also acceptable.
Q: What about the lead time?
A: Usually 3-10 days for sample order. Lot production time according to order quantity.
