Norminal diameter
|
Inside diameter (mm)
|
Outside diameter(mm)
|
Minimum bending radius
|
Maximum working pressure
|
||||||
|

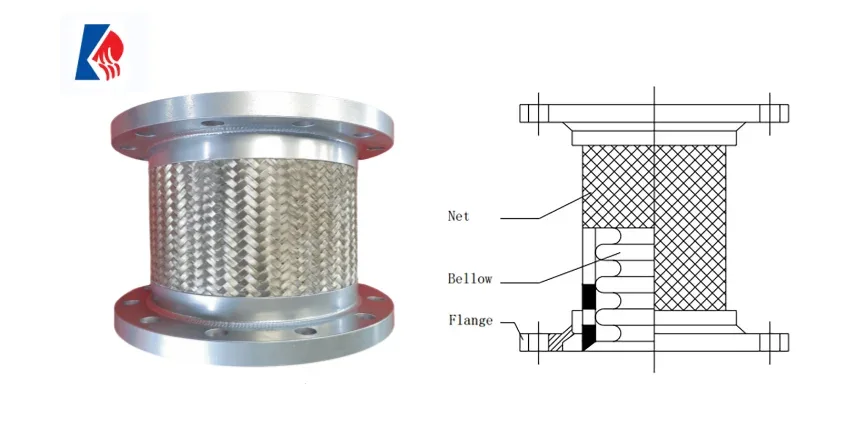

Bellows
|
cover with a layer of network
|
Static Bellows
|
Dynamic Bellows
|
Single layer of braid mesh
|
double layers of braid mesh
|
|||||
|
8
|
8.8
|
13.2
|
14.4
|
50
|
110
|
15
|
20
|
|||
|
10
|
11.7
|
16.5
|
17.7
|
65
|
145
|
15
|
20
|
|||
|
15
|
13.5
|
19.5
|
21.1
|
80
|
180
|
18
|
20
|
|||
|
20
|
20.0
|
27
|
28.6
|
120
|
270
|
10
|
15
|
|||
|
25
|
27.0
|
34.5
|
36.1
|
160
|
360
|
6.3
|
10
|
|||
|
32
|
32.0
|
40
|
41.6
|
175
|
400
|
4.0
|
6.3
|
|||
|
40
|
39.6
|
52
|
53.6
|
225
|
510
|
4.0
|
6.3
|
|||
|
50
|
49.7
|
62
|
63.6
|
280
|
640
|
3.0
|
5.0
|
|||
|
65
|
61.2
|
80.2
|
81.8
|
410
|
915
|
3.0
|
5.0
|
|||
|
80
|
79.0
|
96.3
|
97.9
|
486
|
1030
|
3.0
|
5.0
|
|||
|
100
|
101.2
|
119.6
|
121.2
|
610
|
1340
|
2.5
|
4.0
|
|||
|
125
|
124.1
|
145.3
|
146.9
|
700
|
1540
|
2.5
|
4.0
|
|||
|
150
|
149.4
|
180.8
|
182.4
|
810
|
1780
|
2.5
|
4.0
|
|||
|
200
|
176.0
|
240
|
243.2
|
1000
|
2000
|
2.5
|
4.0
|
|||
|
250
|
248.0
|
290
|
294
|
1250
|
2500
|
2.5
|
4.0
|
|||
|
300
|
298.0
|
350
|
355
|
1500
|
3000
|
1.6
|
2.5
|
|||
|
350
|
347.0
|
400
|
404.8
|
1750
|
3500
|
1.6
|
2.5
|
|||
|
400
|
397.6
|
460
|
464.8
|
2000
|
4000
|
1.6
|
2.5
|
|||
FAQ
Q: Can you make the product as per client’s requirement?
A: Yes, OEM service available. We can make according to your drawings or samples.
Q: How can you guarantee the quality or any warranty?
A: Any quality problems during use, all the products can be returned for domestic clients; we will send more free product in
nextbatch for overseas clients or according to the requests.
Q: Do you accept small quantity order?
A: Yes, MOQ 1 pc for standard size, 5 pcs for customized size.
Q: What is your payment terms?
A: Usually T/T(30% as deposit, the rest 70% will be paid before delivery). L/C, Western Union, Paypal also acceptable.
Q: What about the lead time?
A: Usually 3-10 days for sample order. Lot production time according to order quantity.
Q: Can you offer the drawing?
A: Yes, we have an excellent engineer team who offer you professional drawing and technical support.
