Products Description

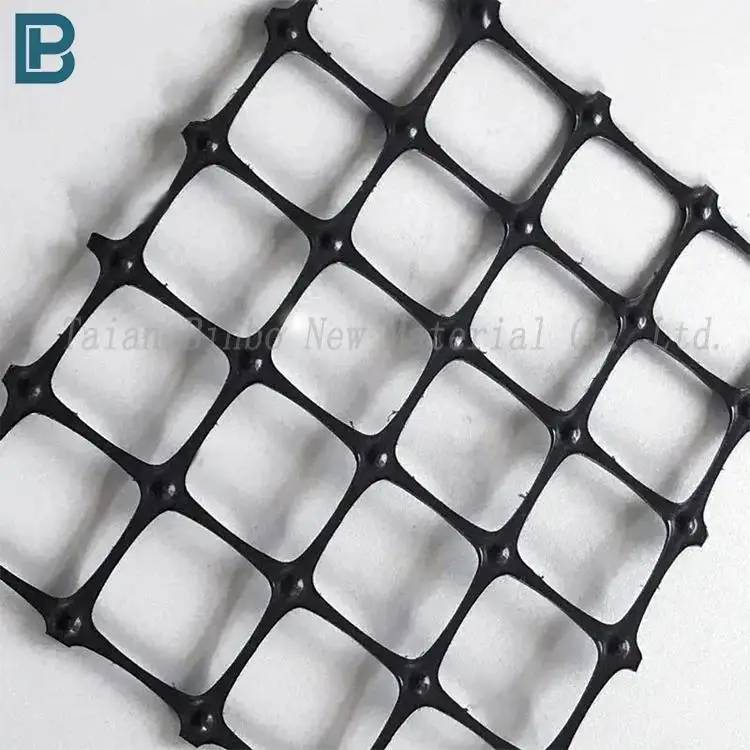

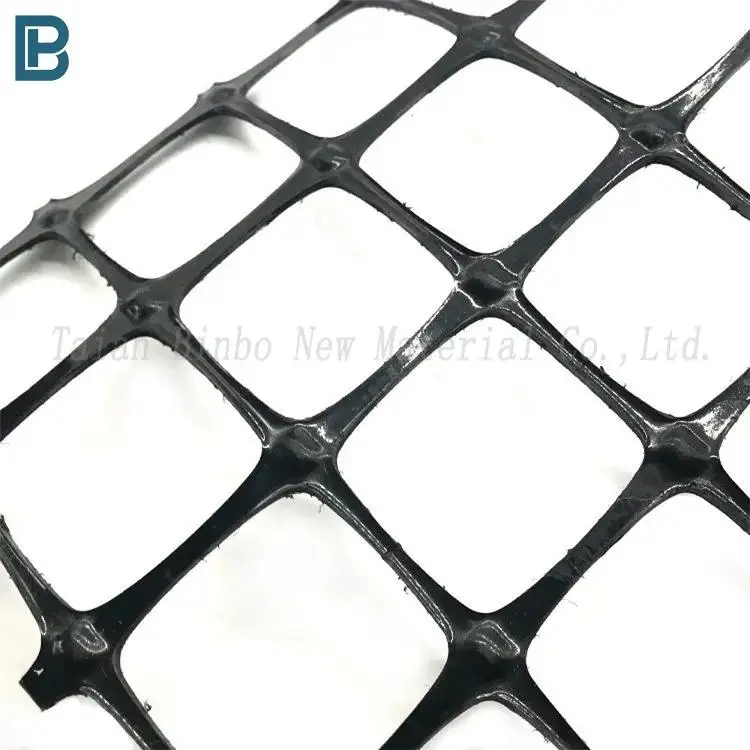

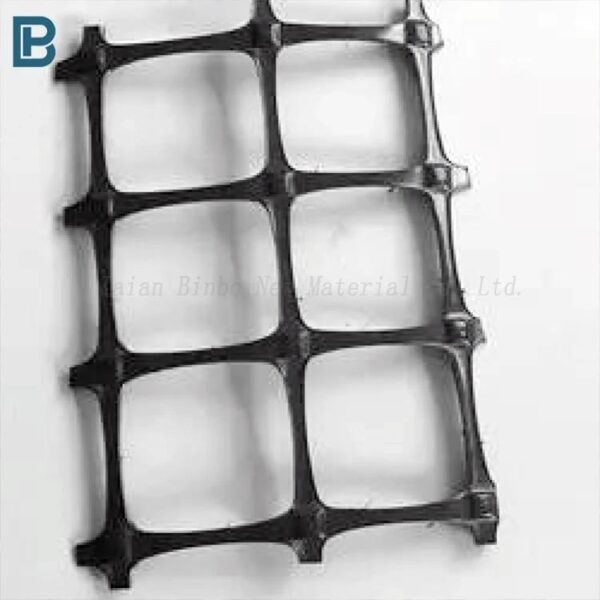

Plastic Geogrid For Road Construction
Geogrid is a geosynthetic material made of polymer, used to reinforce the soil behind the retaining wall. The geogrid is installed in the horizontal layer between the wall layers and extends into the soil behind the wall to stabilize the soil, thereby increasing the quality and stability of the wall system. The geogrid reinforced filling structure uses PP geogrid, which is made by extrusion and unidirectional stretching of high-density polyethylene. The high demand for geogrid and its application in
construction is due to its good tensile strength and higher performance.
construction is due to its good tensile strength and higher performance.
Flame retardant aditives
Light weight, high tensile strength, high modulus, low elongation and good toughness. Corrosion resistance, no long-term creep,
long life span.
long life span.
Corrosion resistance, aging resistance
Good physical and chemical stability and good thermal stability.Resistant to fatigue cracking, high-temperature track and low temperature shrinkage cracking. Delaying and decreasing crack reflection.
|

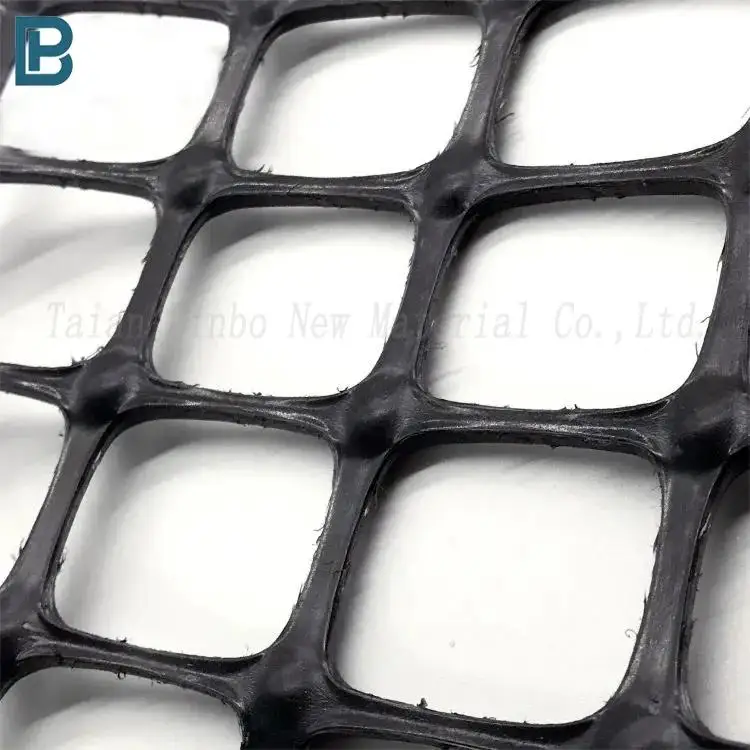

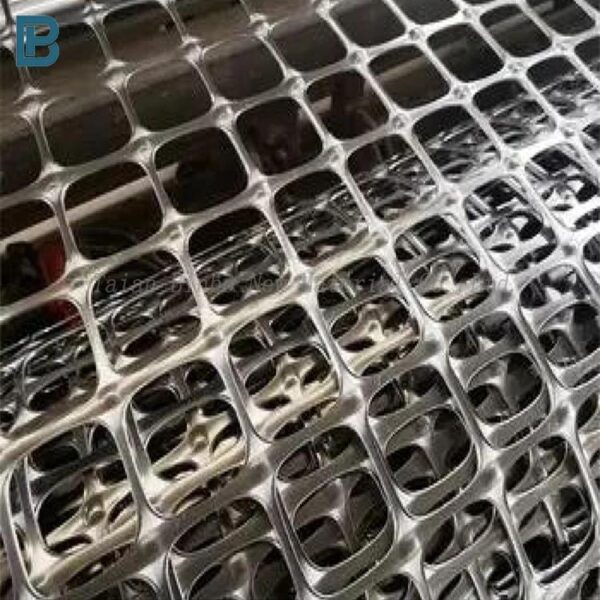

PP Biaxial Geogrid Specification
|
||||||||||||||
|
Property
|
Test Method
|
TGSG15-15
|
TGSG20-20
|
TGSG30-30
|
TGSG40-40
|
TGSG50-50
|
||||||||
|
Ultimate tensile strength(KN/M)
|
MD
|
ASTM D 6637
|
15
|
20
|
30
|
40
|
50
|
|||||||
|
CD
|
15
|
20
|
30
|
40
|
50
|
|||||||||
|
Elongation at maximum load(%)
|
MD
|
13
|
||||||||||||
|
CD
|
13
|
|||||||||||||
|
Tensile strength at 2% elongation(KN/M)
|
MD
|
5
|
7.5
|
10.5
|
14
|
18
|
||||||||
|
CD
|
5
|
7.5
|
10.5
|
14
|
18
|
|||||||||
|
Tensile strength at 5% elongation(KN/M)
|
MD
|
7
|
14
|
21
|
28
|
35
|
||||||||
|
CD
|
7
|
14
|
21
|
28
|
35
|
|||||||||
|
Minimum Carbon Black
|
%
|
ASTM D 4218
|
2
|
|||||||||||
|
PP Uniaxial Geogrid Specification
|
||||||||||||||||||
|
Property
|
Test Method
|
TGDG35
|
TGDG50
|
TGDG80
|
TGDG100
|
TGDG110
|
TGDG120
|
TGDG150
|
||||||||||
|
Ultimate tensile strength |
KN/M
|
ASTM D 6637 |
35
|
50
|
80
|
100
|
110
|
120
|
150
|
|||||||||
|
%
|
10
|
|||||||||||||||||
|
Tensile strength at 2% elongation
|
KN/M
|
9
|
10
|
23
|
29
|
30
|
35
|
39
|
||||||||||
|
Tensile strength at 5% elongation
|
KN/M
|
18
|
25
|
44
|
55
|
58
|
65
|
77
|
||||||||||
|
Creep Limit Strength
|
KN/M
|
15
|
21
|
30
|
39
|
40
|
46
|
49
|
||||||||||
|
Minimum Carbon Black
|
%
|
ASTM D 4218
|
2
|
|||||||||||||||
|
Property
|
Test Method
|
TGDG120
|
TGDG150
|
TGDG170
|
TGDG200
|
TGDG220
|
TGDG240
|
TGDG300
|
||||||||||
|
Ultimate tensile strength |
KN/M
|
ASTM D 6637 |
120
|
150
|
170
|
200
|
220
|
240
|
300
|
|||||||||
|
%
|
10
|
|||||||||||||||||
|
Tensile strength at 2% elongation
|
KN/M
|
35
|
39
|
45
|
55
|
59
|
65
|
90
|
||||||||||
|
Tensile strength at 5% elongation
|
KN/M
|
65
|
77
|
90
|
110
|
120
|
132
|
182
|
||||||||||
|
Creep Limit Strength
|
KN/M
|
46
|
49
|
57
|
64
|
71.5
|
79
|
100
|
||||||||||
|
Minimum Carbon Black
|
%
|
ASTM D 4218
|
2
|
|||||||||||||||

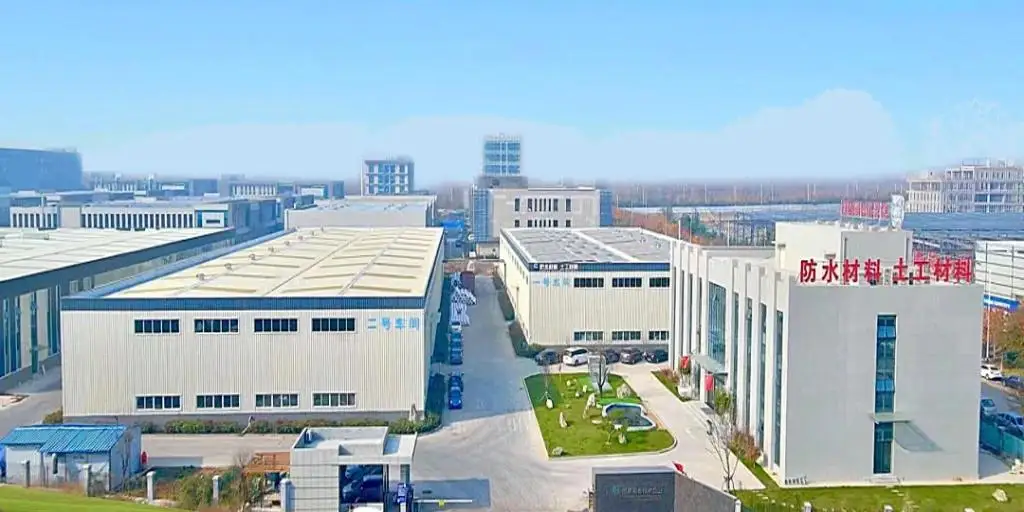

Company Profile
Tai’an Binbo New Materials Co., Ltd，established in 1998, is a leading manufacturer and supplier of geosynthetics materials in China. We have over 40 professional advanced production lines with an annual production capacity of more than 300 million square
meters, which enables our company todeliver fast to our customers.
Our products include geomembrane, geogrid, geotextile, geocell, geonet, drainage net, drainage board, erosion control geomat,BOPstretched net, safety fence, geocomposite, weed mat, geobags, geotubes, etc. These products are mainly used in the foundation
construction such as roadways, railways, airports, mines, irrigation works, electric power, water and land protection, environment greening, etc.
Tai’an Binbo New Materials Co., Ltd has established advanced laboratories for internal quality control. We built strict quality control system of whole processes from raw materials testing, production process, to final products testing. And we always improve our production technology in order to provide high quality products to our customers. We has got certificates such as ISO9001、ISO14001、ISO45001.
As a famous brand, our products have been exported to more than 30 countries and areas all over the world and get high reputation from customers. We always warmly invite more customers and friends to be our business partners. We look forward to cooperating with you !
meters, which enables our company todeliver fast to our customers.
Our products include geomembrane, geogrid, geotextile, geocell, geonet, drainage net, drainage board, erosion control geomat,BOPstretched net, safety fence, geocomposite, weed mat, geobags, geotubes, etc. These products are mainly used in the foundation
construction such as roadways, railways, airports, mines, irrigation works, electric power, water and land protection, environment greening, etc.
Tai’an Binbo New Materials Co., Ltd has established advanced laboratories for internal quality control. We built strict quality control system of whole processes from raw materials testing, production process, to final products testing. And we always improve our production technology in order to provide high quality products to our customers. We has got certificates such as ISO9001、ISO14001、ISO45001.
As a famous brand, our products have been exported to more than 30 countries and areas all over the world and get high reputation from customers. We always warmly invite more customers and friends to be our business partners. We look forward to cooperating with you !

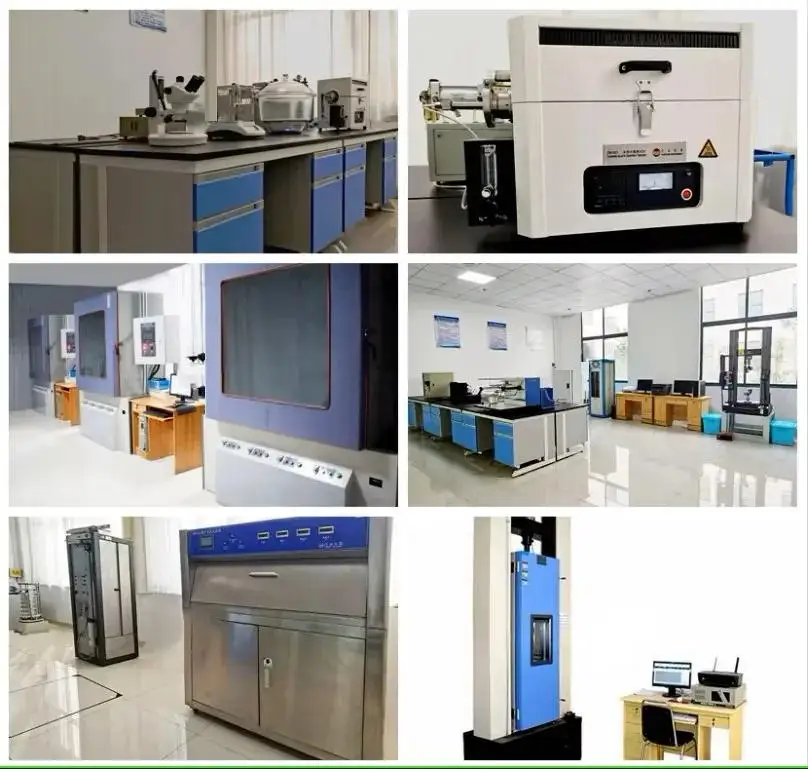

Testing laboratory
Product Application
PP Biaxial Geogrid Application

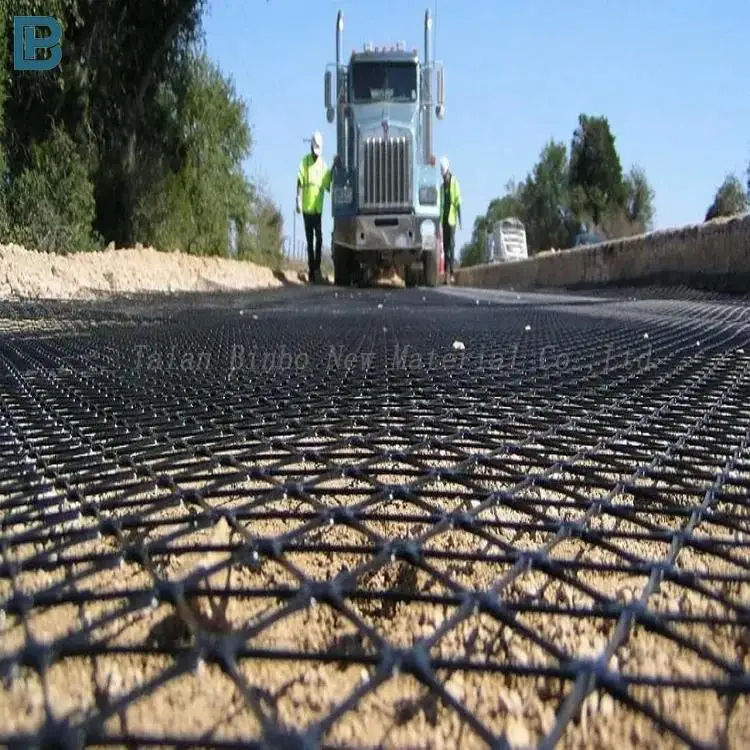

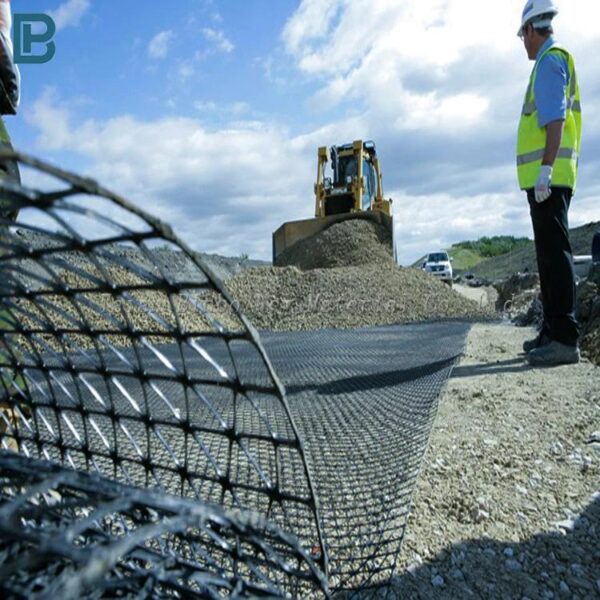

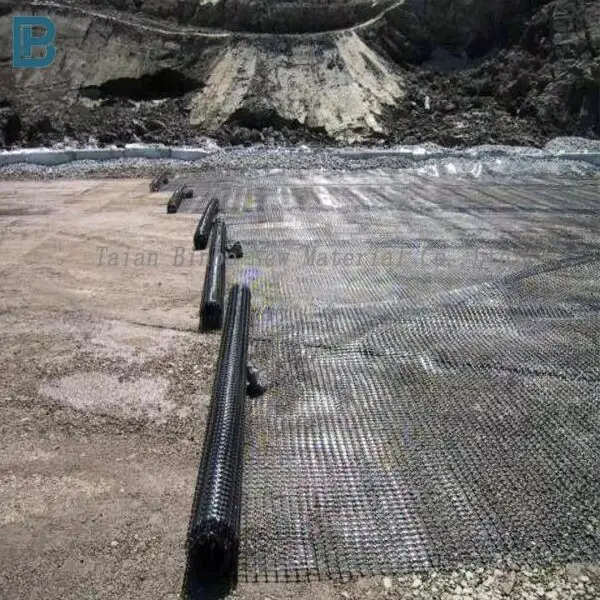

Pavement subgrade stabilization;Area/ground stabilization;

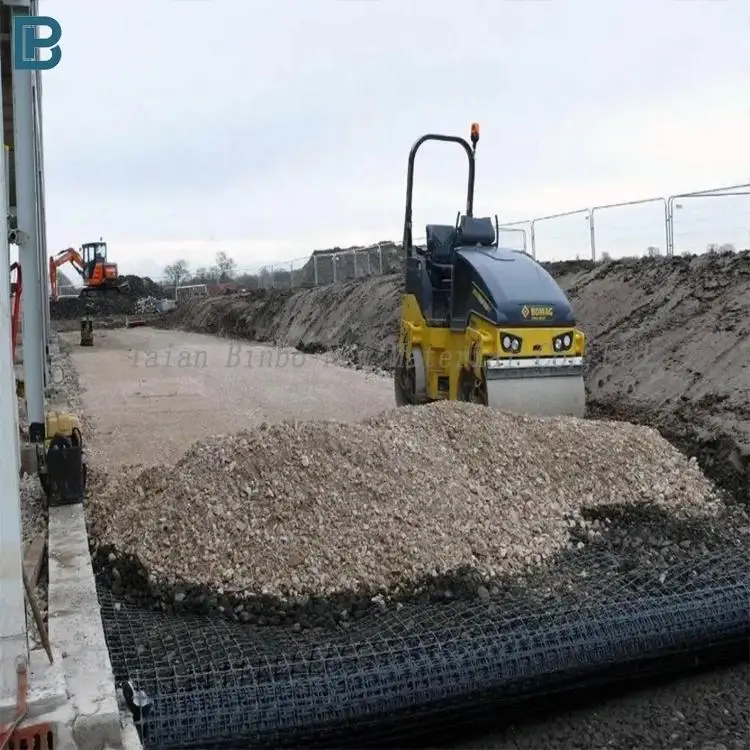

Pavement base reinforcement;
Pavement base reinforcement;
PP Biaxial Geogrid Application
Working and load transfer platforms;Rail track-bed stabilization;Reinforced guanular foundation beds;

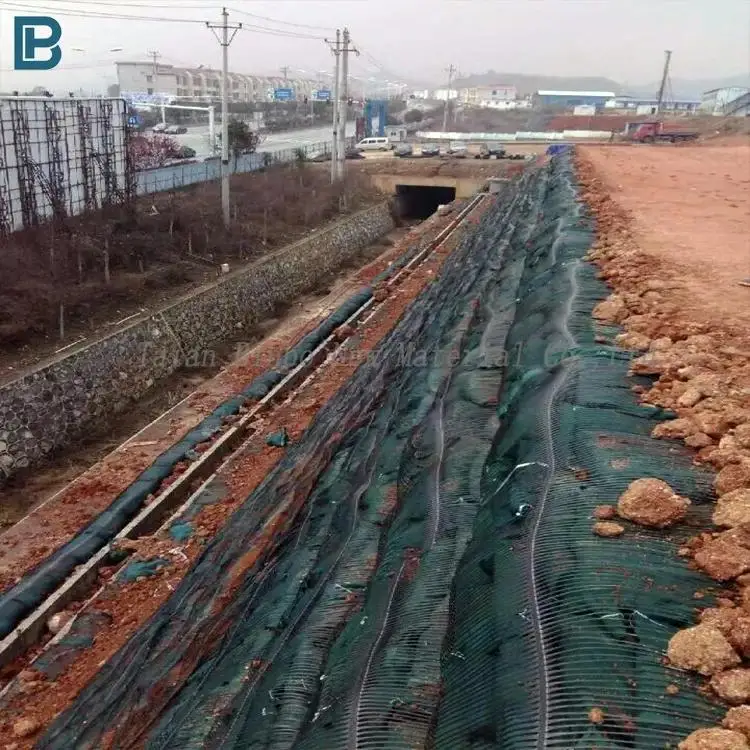

PP Uniaxial Geogrid Application

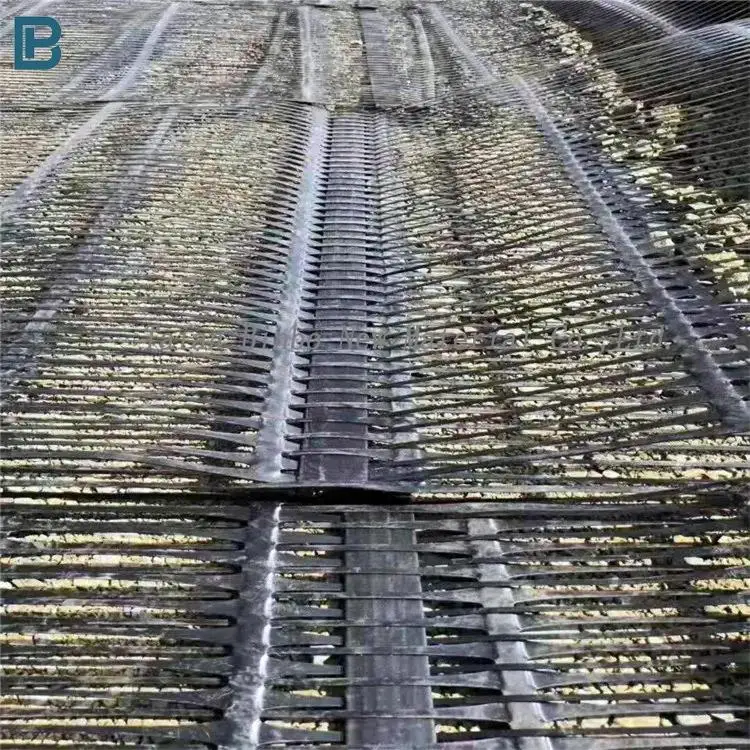

Soft foundation reinforcing for highway,railway;Reinforcing for retaining wall, dam;
PP Uniaxial Geogrid Application
Enlarge road loadings; lasting the life of road;Bear the greatest loading change;
Prevent the road from cracks and deformation;
Prevent the road from cracks and deformation;

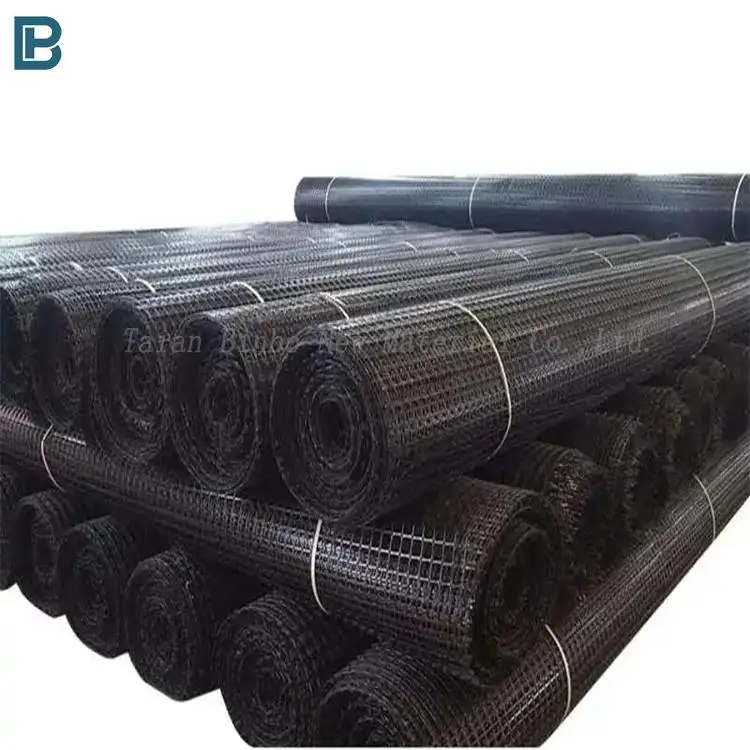

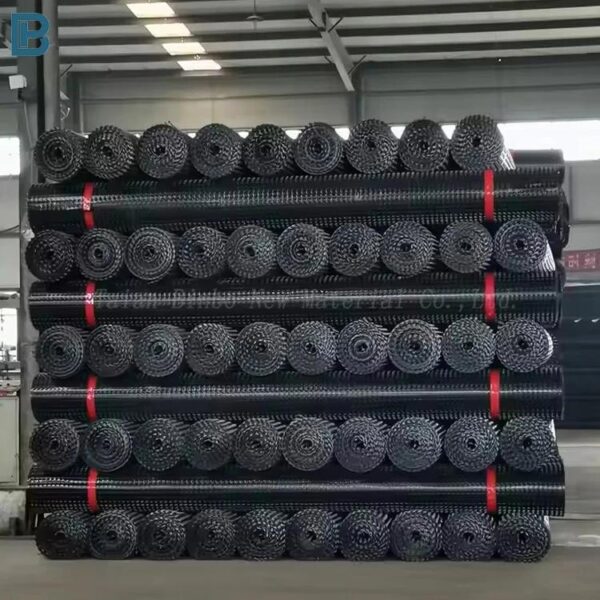

Product packaging
Package
Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package).
Packaging size and container capacity vary according to product specifications.
FAQ
Q:What can I buy from you?
A: Geomembrane,Geogrid,Geocell, Geotextile, Geocomposite, Gabion Netwait。
Q: Can I have a sample?
A: Yes. And sample free.
Q: What’s the payment terms?
A: T/T or L/C. Others could be negotiated.
Q: What’s the delivery time?
A: 3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
Q: Can I have a sample?
A: Yes. And sample free.
Q: What’s the payment terms?
A: T/T or L/C. Others could be negotiated.
Q: What’s the delivery time?
A: 3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
Packing&Shipping
Packaging: Standard packaging or customer’s requirements
Lead time: Within 10-15 days after receiving the deposit payment
Producing Capacity: Two 40ft Containers per week
Lead time: Within 10-15 days after receiving the deposit payment
Producing Capacity: Two 40ft Containers per week
Feel free to contact me
MIKE Du
Tai’an Binbo New Materials Co., Ltd
Tel/WhatsApp+8615953807388
WeChat:15953807388
E: mike@binbogeo.com
www.cnbinbo.com
