Products Description

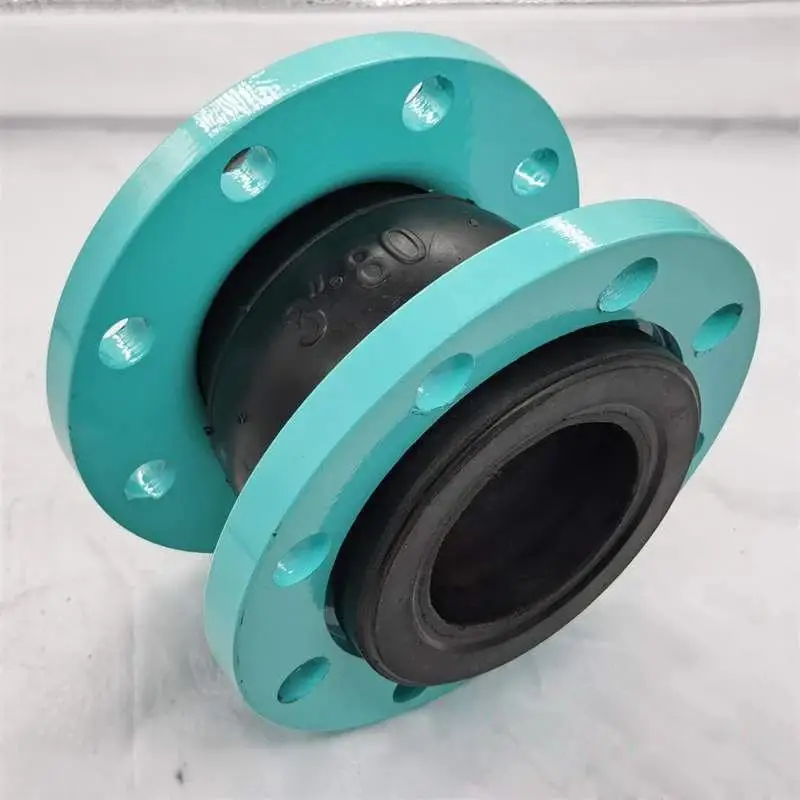

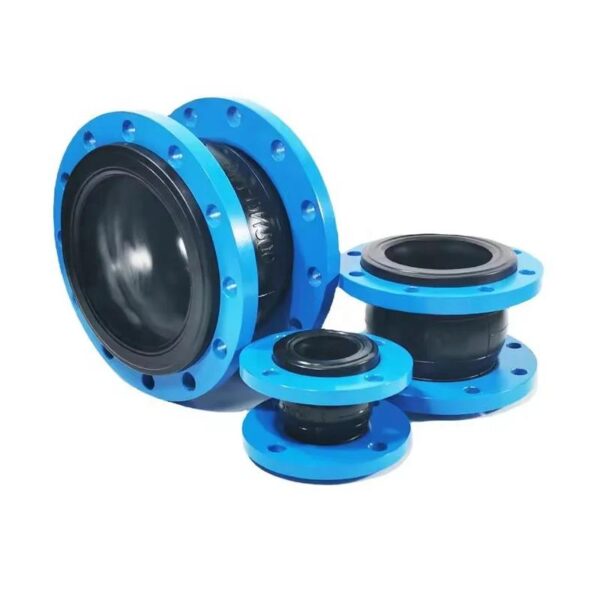

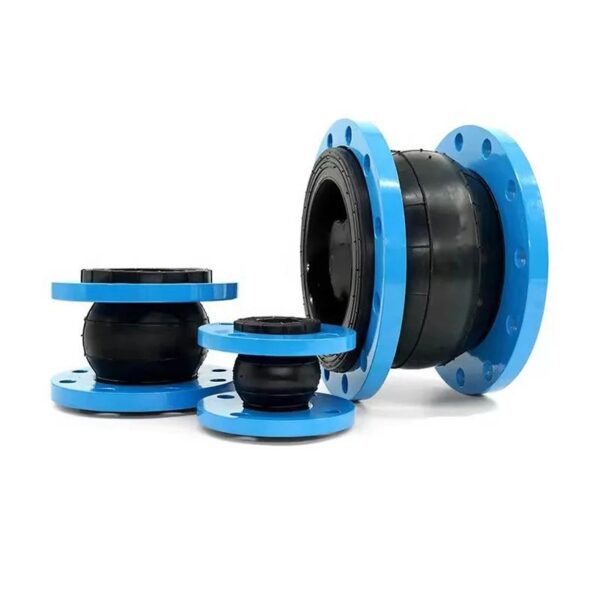

The rubber joint has the characteristics of good elasticity, light weight, and convenient installation and maintenance. It has a good effect on compensating for pipeline displacement. It can not only compensate for the lateral, longitudinal and angular displacements generated during the installation process, but also reduce the noise transmitted by the structure during operation and has strong vibration absorption ability.
Specification
* Flexible rubber joints
* Size Range: 2″ * 1 1/4″*-24″ * 20″/DN50*32-DN600*500
* Rubber Body Outer Layer: NR/EPDM/IIR/CR/NBR/V ITON
* Rubber Body Inner Layer: NR/EPDM/IIR/CR/NBR/V ITON
* Skeleton: Nylon
* Flange: Q235/SS304/SS316
* Ring: Steel
* Size Range: 2″ * 1 1/4″*-24″ * 20″/DN50*32-DN600*500
* Rubber Body Outer Layer: NR/EPDM/IIR/CR/NBR/V ITON
* Rubber Body Inner Layer: NR/EPDM/IIR/CR/NBR/V ITON
* Skeleton: Nylon
* Flange: Q235/SS304/SS316
* Ring: Steel
|

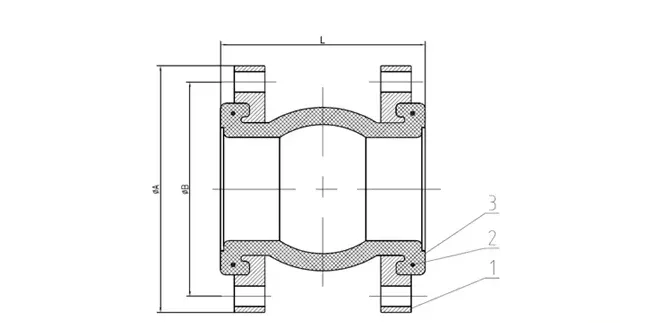

Size
|
PN10
|
PN16
|
PN25
|
||||||||||
|
DN
|
NPS
|
L
|
ØA
|
ØB
|
ØA
|
ØB
|
ØA
|
ØB
|
|||||
|
40
|
1 1/2″
|
95
|
150
|
110
|
150
|
110
|
150
|
110
|
|||||
|
50
|
2″
|
105
|
165
|
125
|
165
|
125
|
165
|
125
|
|||||
|
65
|
2 1/2″
|
115
|
185
|
145
|
185
|
145
|
185
|
145
|
|||||
|
80
|
3″
|
135
|
200
|
160
|
200
|
160
|
200
|
160
|
|||||
|
100
|
4″
|
150
|
220
|
180
|
220
|
180
|
235
|
190
|
|||||
|
125
|
5″
|
165
|
250
|
210
|
250
|
210
|
270
|
220
|
|||||
|
150
|
6″
|
180
|
285
|
240
|
285
|
240
|
300
|
250
|
|||||
|
200
|
8″
|
210
|
340
|
295
|
340
|
295
|
360
|
310
|
|||||
|
250
|
10″
|
230
|
395
|
350
|
405
|
355
|
425
|
370
|
|||||
|
300
|
12″
|
245
|
445
|
400
|
460
|
410
|
485
|
430
|
|||||
|
350
|
14″
|
255
|
505
|
460
|
520
|
470
|
555
|
490
|
|||||
|
400
|
16″
|
255
|
565
|
515
|
580
|
525
|
620
|
550
|
|||||
|
450
|
18″
|
255
|
615
|
565
|
640
|
585
|
670
|
600
|
|||||
|
500
|
20″
|
255
|
670
|
620
|
715
|
650
|
730
|
660
|
|||||
|
600
|
24″
|
260
|
780
|
725
|
840
|
770
|
845
|
770
|
|||||
Details Images
