Product Description

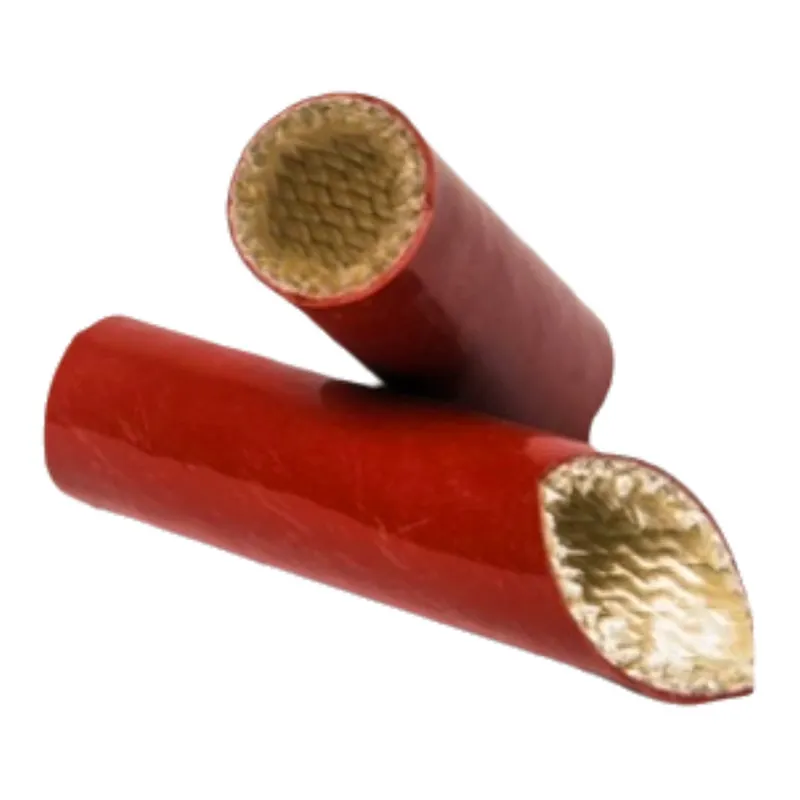

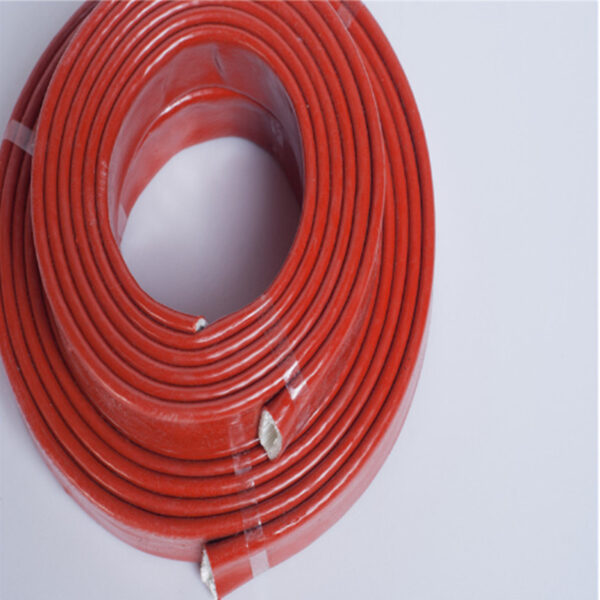

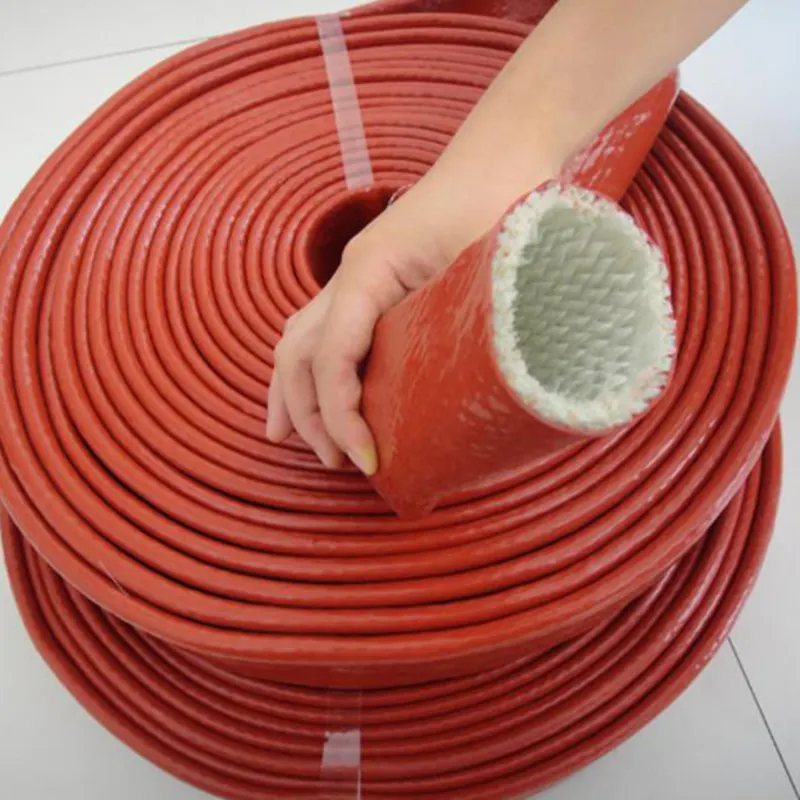

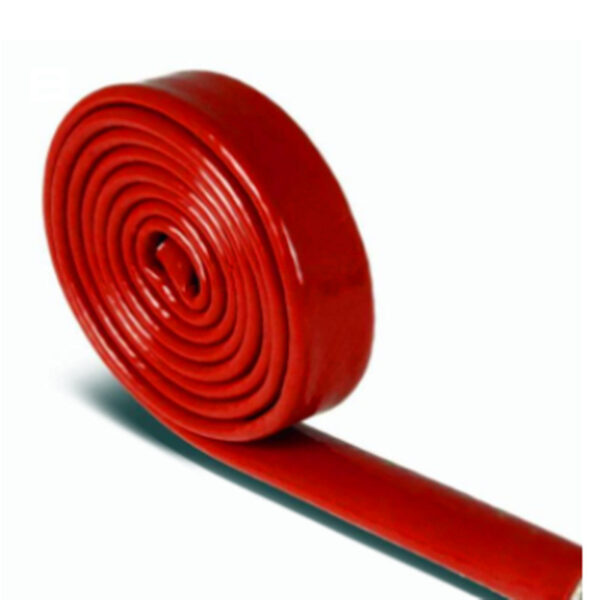

Glass fibre sleeving will offer continuous protection at an operating temperature of 260°C and can withstand a molten metal splash at 1200°C.It is highly resistant to most oils, hydraulic fluids, fuels, acids and alkalis. The high grade rubber forms a protective SiO2 layer when exposed to flame.
It provides personnel with protection against burns from hot boxes, steam lines etc. and helps to reduce energy loss by retaining heat within the pipework.
The main features of the high-temperature fireproof sleeve are as follows:
4.It is flexible, wear-resistant, moisture-proof, waterproof, oil-proof, and contamination-proof.
5.It prevents heat loss, which is beneficial for energy saving and consumption reduction.
6. It has strong dielectric insulation properties.
Product Parameters
| Inner diameter | ID tolerance(mm) | Wall thickness and tolerance(mm) | M/roll |
| 5-10 | 0.3 | 2.5 ±0.2 | 50mts |
| 12-18 | 0.4 | 3.0±0.3 | 50mts |
| 20-30 | 0.8 | 3.5±0.4 | 25mts |
| 35-55 | 1.0 | 3.8±0.5 | 25mts |

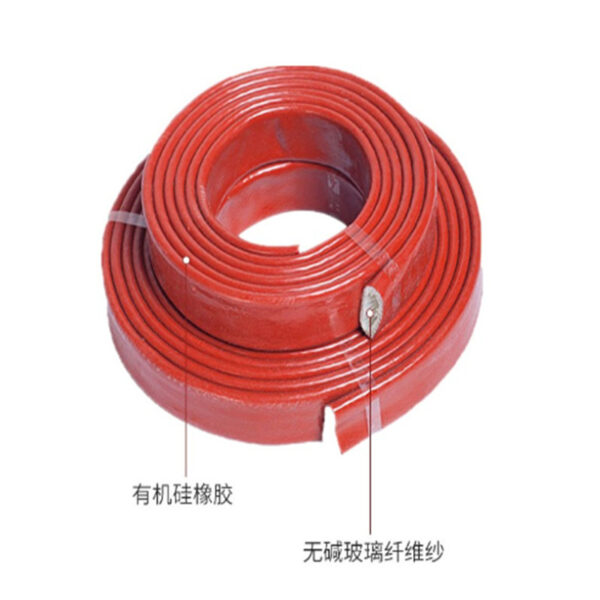

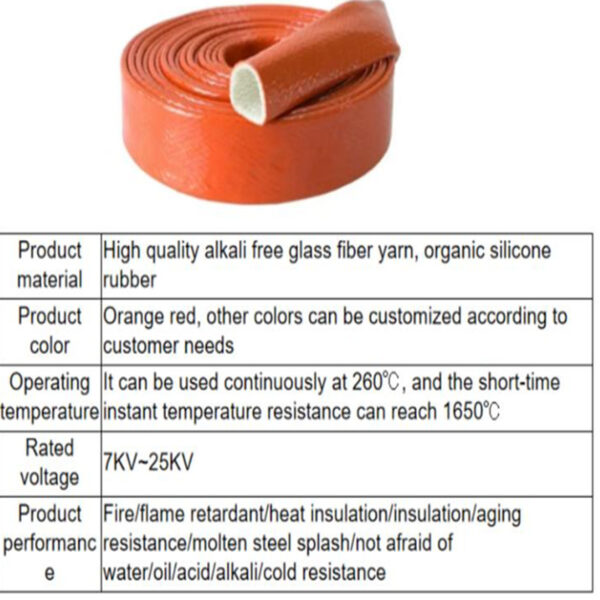

| Product material | High quality alkali free glass fiber yarn, organic silicone rubber |

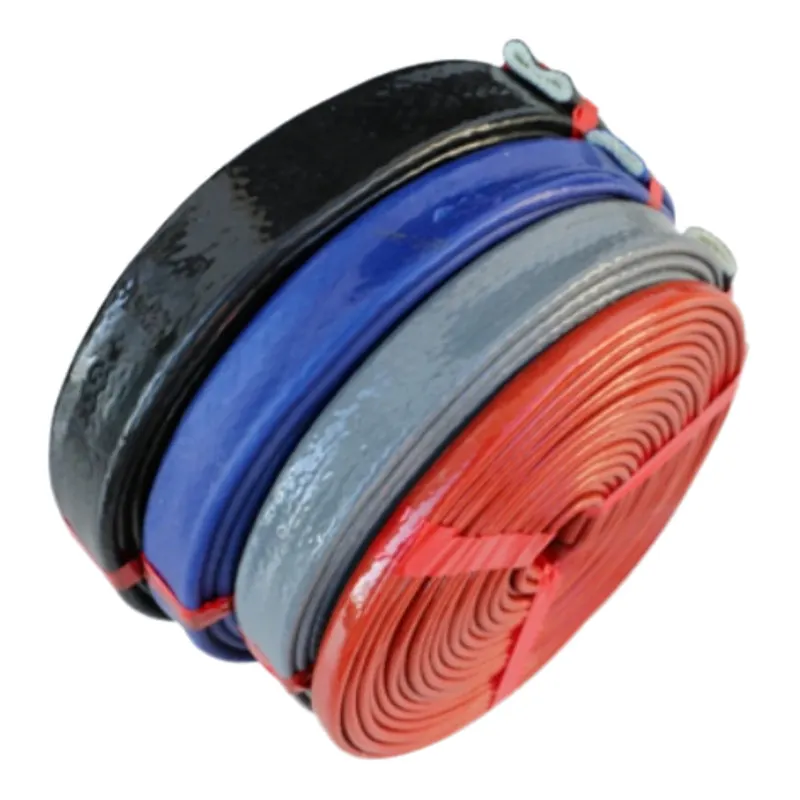

| Product color | Color can be customized |
| Operating temperature | It can be used continuously at 260ºC,and the short-time instant temperature resistance can reach 1650ºC |
| Rated voltage | 7KV-25KV |
| Product performance | Fire/flame retardant/heat insulation/insulation/aging resistance/molten steel splash/not afraid of water/oil/acid/alkali/cold resistance |

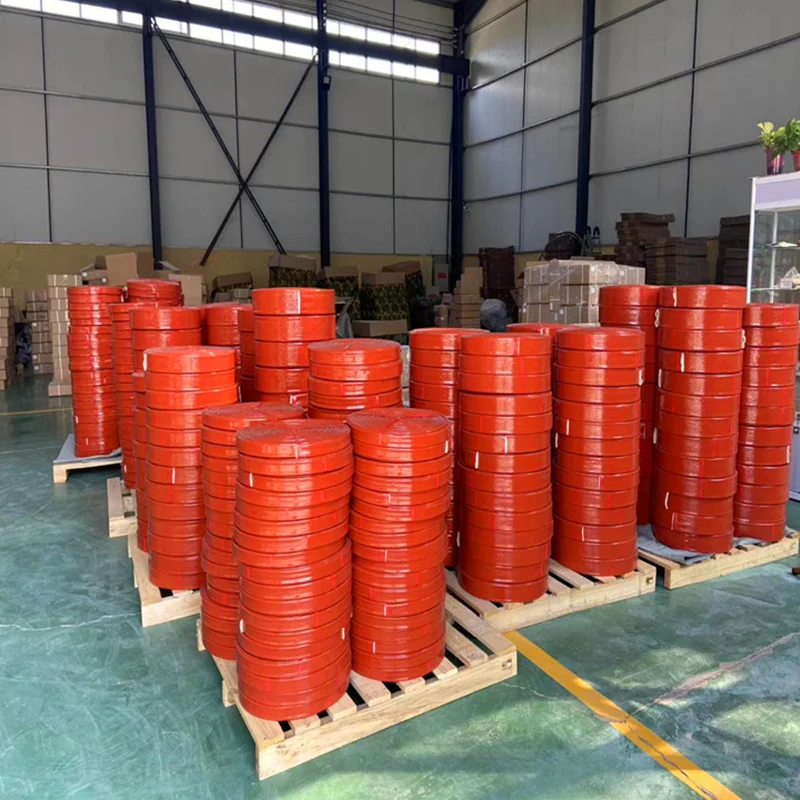

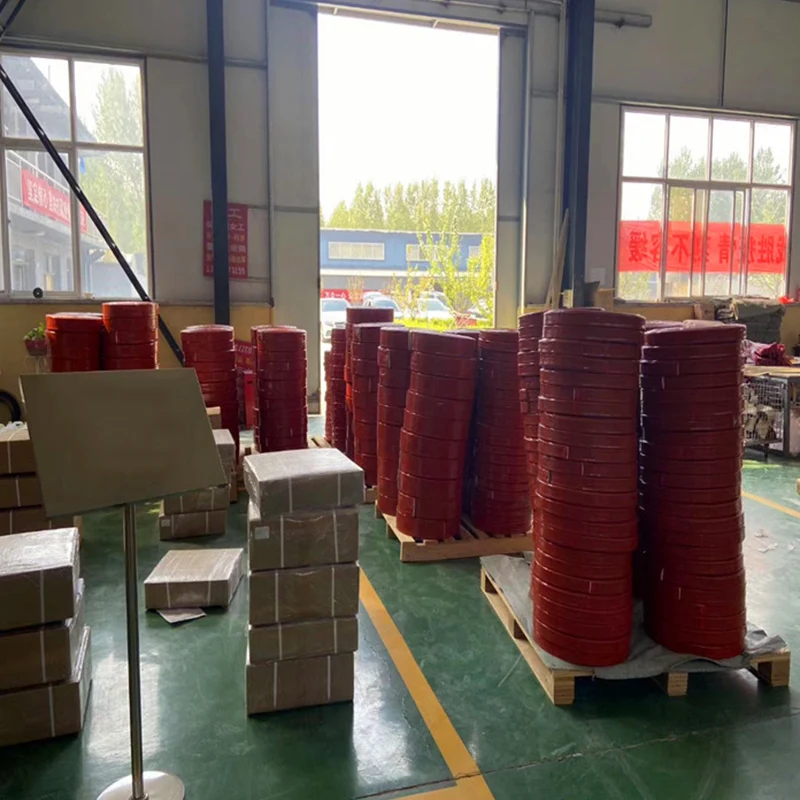

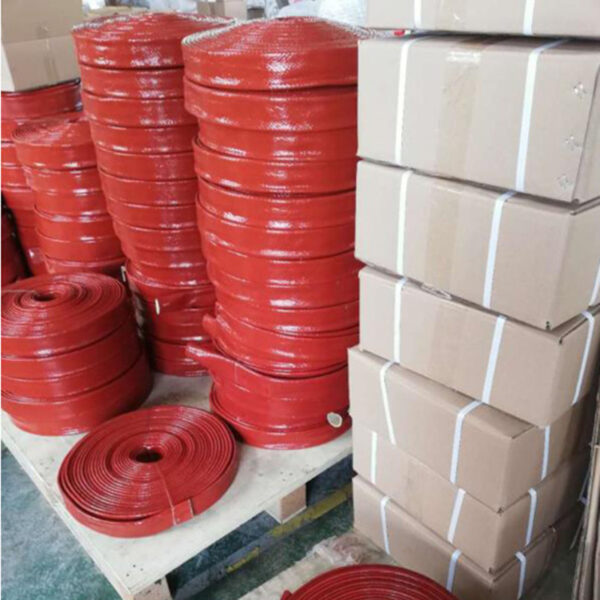

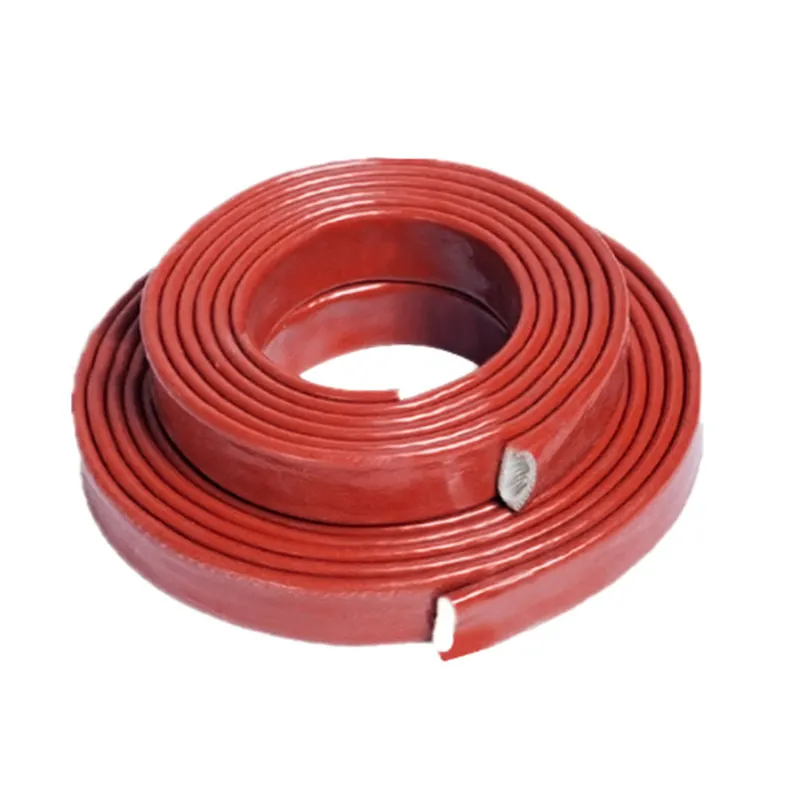

Detailed Photos
