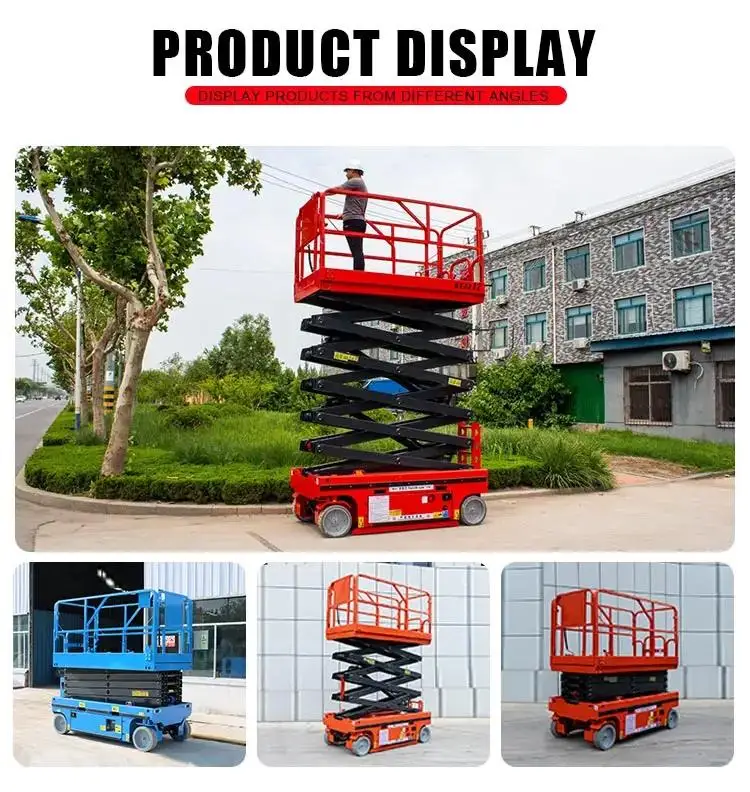

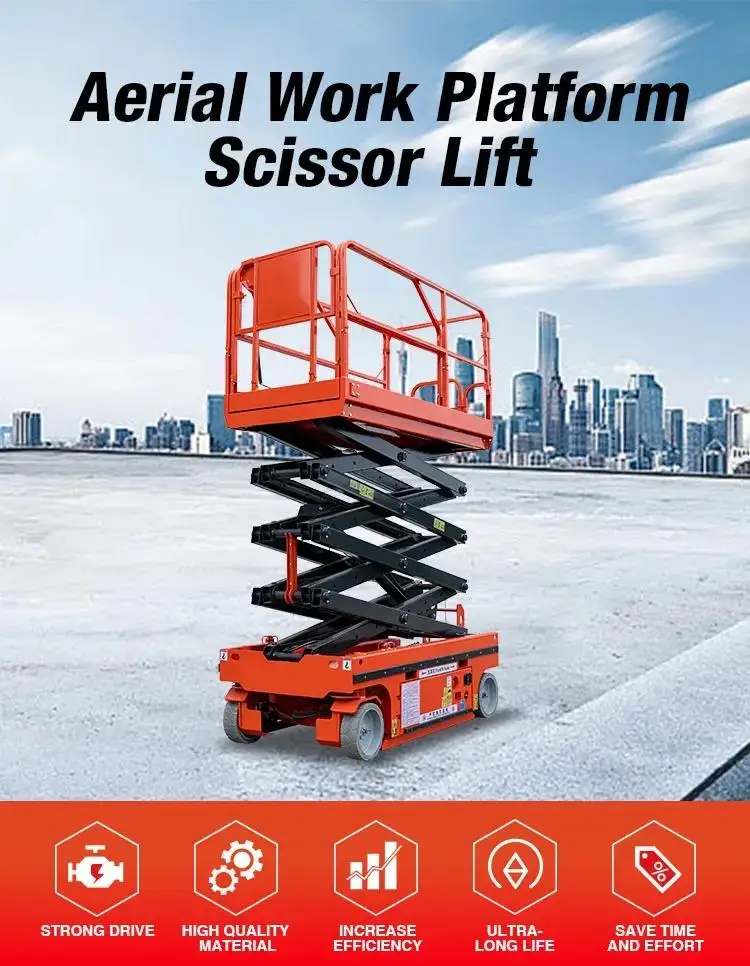

High quality CE Euro5 EPA NEW Scissor Lift with good price
Working height 8m to 16m
Special reminder ：Different customers will customize the color, configuration, model, appearance and so on according to their own needs. We will make quotations according to the needs of customers, so the quotation will be different, please understand.
Products Description
|
Model
|
MY6
|
MY8
|
MY10
|
MY12
|
MY14
|
|
Maximum working height
|
8m
|
10m
|
12m
|
13.85m
|
15.8m
|
|
Maximum platform height
|
6m
|
8m
|
10m
|
12m
|
14m
|
|
Safe working load
|
450 kg
|
450 kg
|
320 kg
|
320 kg
|
230kg
|
|
Extended platform safe working load
|
110kg
|
110kg
|
110kg
|
110kg
|
110kg
|
|
Working platform dimensions (length × width × height)
|
2.25×1.13×1.2m
|
2.25×1.13×1.2m
|
2.25×1.13×1.2m
|
2.25×1.13×1.2m
|
2.636×1.13×1.2m
|
|
Countertop extension size
|
0.9m
|
0.9m
|
0.9m
|
0.9m
|
0.9m
|
|
Minimum ground clearance
|
0.1/0.15m
|
0.1/0.15m
|
0.1/0.15m
|
0.1/0.15m
|
0.1/0.02m
|
|
Wheelbase
|
1.90m
|
1.90m
|
1.90m
|
1.90m
|
2.24m
|
|
Turning radius (inner wheel/outer wheel)
|
0/2.35m
|
0/2.35m
|
0/2.35m
|
0/2.35m
|
0/2.5m
|
|
Lift/Drive motor
|
24V/3.3kw
|
24V/3.3kw
|
24V/4.5kw
|
24V/4.5kw
|
24V/4.5kw
|
|
Lifting speed
|
3-5m/min
|
3-5m/min
|
3-5m/min
|
3-5m/min
|
3-5m/min
|
|
Machine traveling speed (retracted state)
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
|
Machine traveling speed (lifting state)
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
|
Battery
|
4×6V/200ah
|
4×6V/200ah
|
4×6V/200ah
|
4×6V/200ah
|
4×6V/200ah
|
|
Charger
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
|
Maximum climbing ability
|
25%
|
25%
|
25%
|
25%
|
25%
|
|
Maximum allowable working angle
|
1.5° /3°
|
1.5° /3°
|
1.5° /3°
|
1.5° /3°
|
1.5° /3°
|
|
Tire
|
Φ381×127mm
|
Φ381×127mm
|
Φ381×127mm
|
Φ381×127mm
|
Φ381×127mm
|
|
Total Weight
|
2066kg
|
2208kg
|
2506kg
|
2900kg
|
3570kg
|

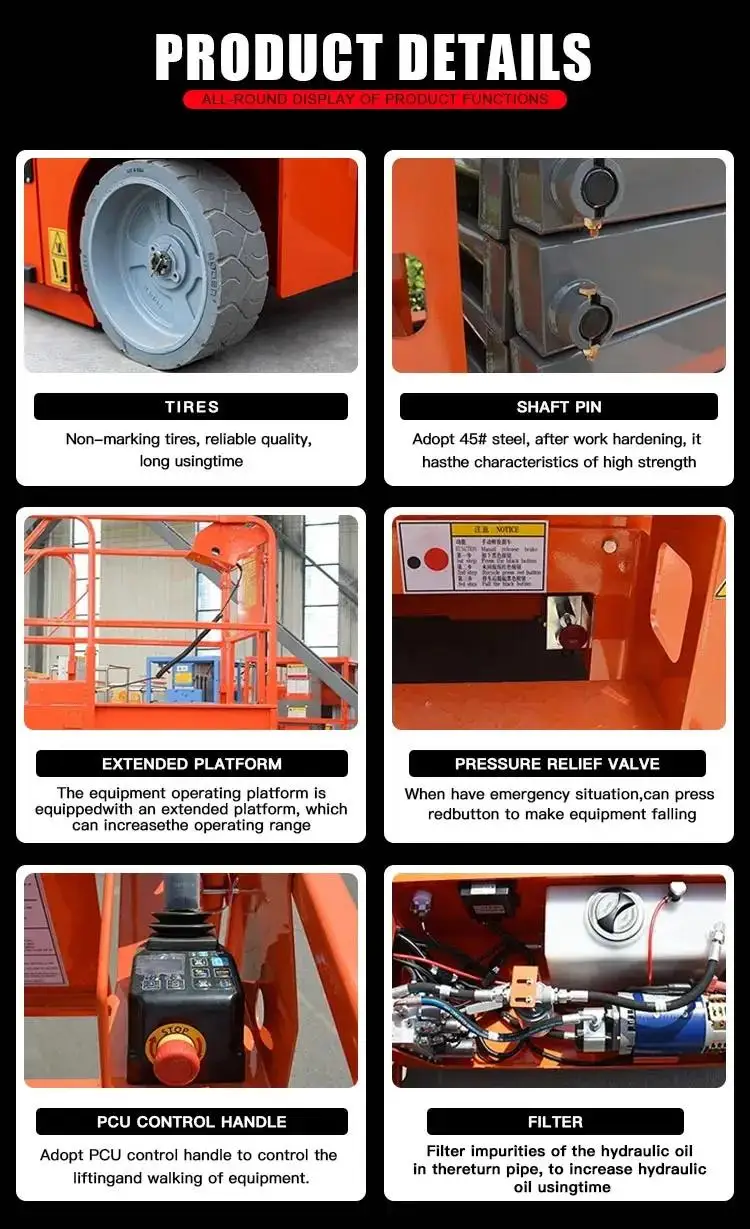

Features
1.Strong stability at height;
2.Non-marking tires
2.Non-marking tires
3.True zero inside turning radius, working well in tight areas;
4.Swing doors on both sides, easy for maintenance;
5.Extended duty cycle due to highly efficient design.
5.Extended duty cycle due to highly efficient design.
6.Safety protections: tilting sensor / overload sensor / pothole protection / automatic braking / manual lowering / automatic stop when overheated / safety valve on hydraulic cylinder

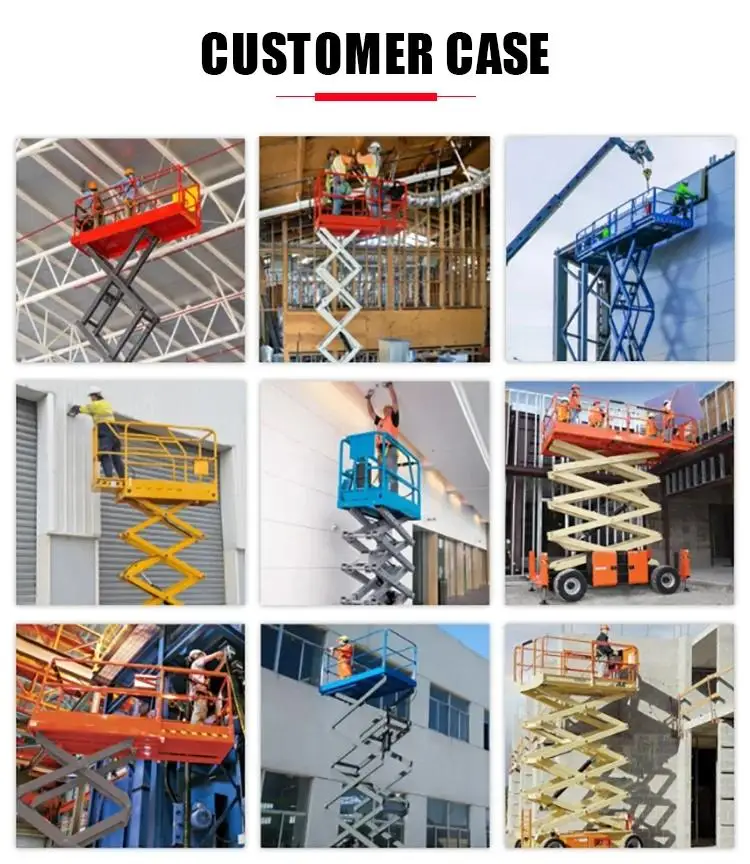

Customer Photos
Product packaging
Company Profile
FAQ
Q: How long is the machine warranty time?
A: One year.
Q: Are you original manufacturer?
A: Yes. We are manufacturer of construction machines.
Q: What is the terms of payment?
A: :Normally, we accept 30% advance, 70% should be paid after finished the machine, L/C at sight.
Q: What is the delivery time ?
A: Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok ,then send to port.
Q: How should we do if the machine broken ?
A: You can take a video to us and our technicians will analyze the cause of the problem based on the video.
Q: How should we do if parts are broken ?
A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air.
Q: Can the machine use the trademark of our own company?
A: Yes ,sir ,of course.
