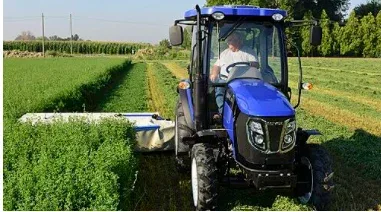

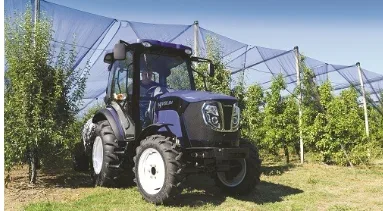

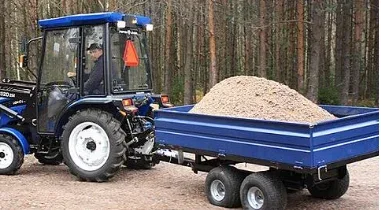

Products Description

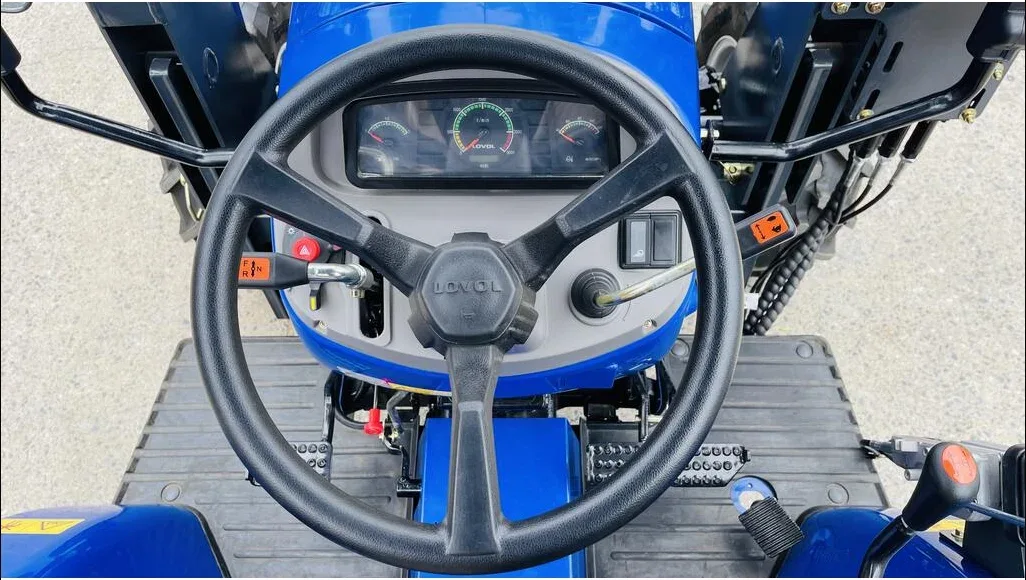

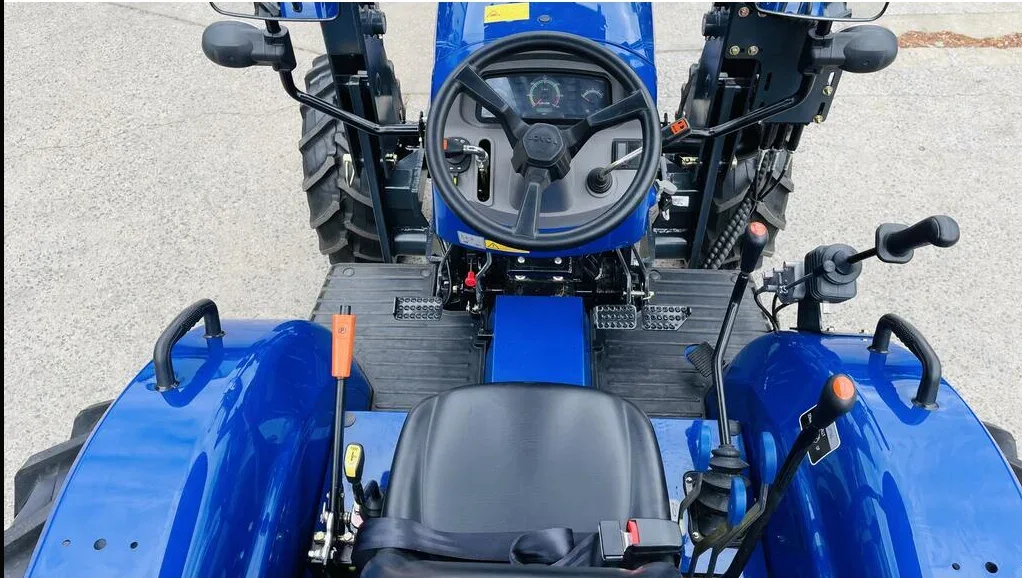

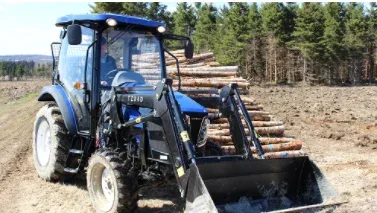

Details Images

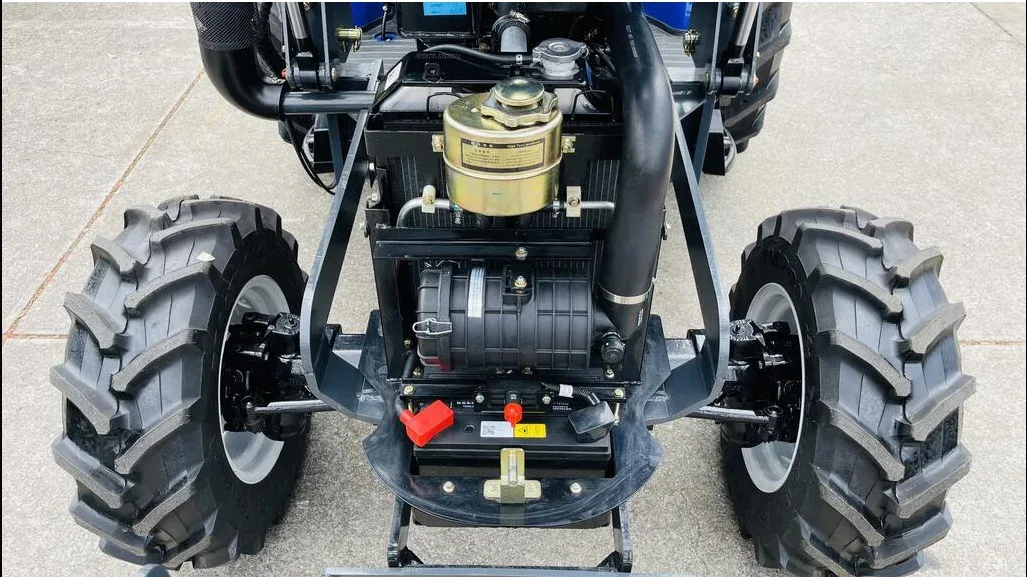

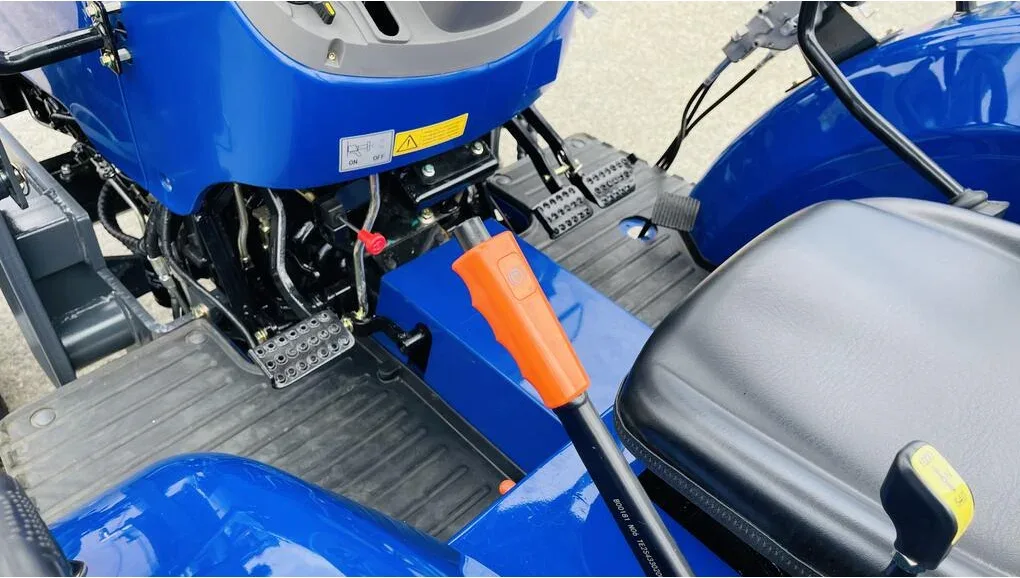

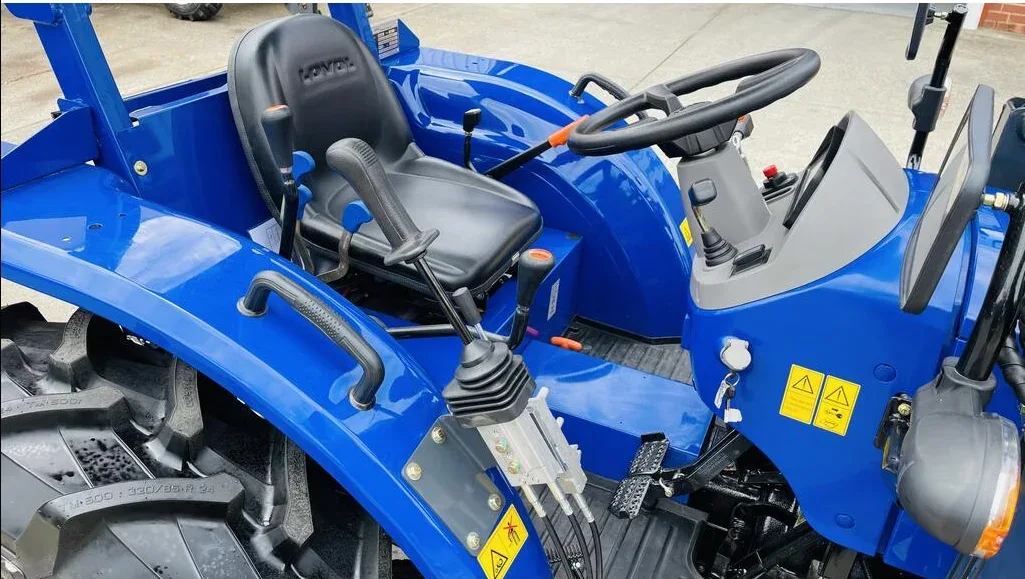

Gearbox: Standard confguration: 8F+8R synchro shift, options: 12F+12R synchro shift and 8F+8R collar gearshimain speed synchronized shift is optional and it has features like energy saving, reliable and comfortable. Driving Cab: Standard configuration is ROPS and cab with EC and OEcD certifications, and compatible configurare third generation car bo dy with European design, fuly-wrapped interior, ste ering wheel adjustable fore and afconditioning system and luxurious seat which fully improves the control comfort. Engine : TB series standard configuration engine has passed European and North America certification. Clutch : Standard configuration 10-11 inch dual clutch is equipped with a friction disk made of spe clal ceramic mihigh reliability. Tires : Paddy land tires, OTR tires, meadow tires are optional. Ele ctronic system: Taking rainy and humid environments into consideration, it is equipped with ele crical wirings iconnectors with high sealing performance so as to extend the service life ofthe electronic system. Floor: flat floor, side-placed operating lever and suspension pedal are

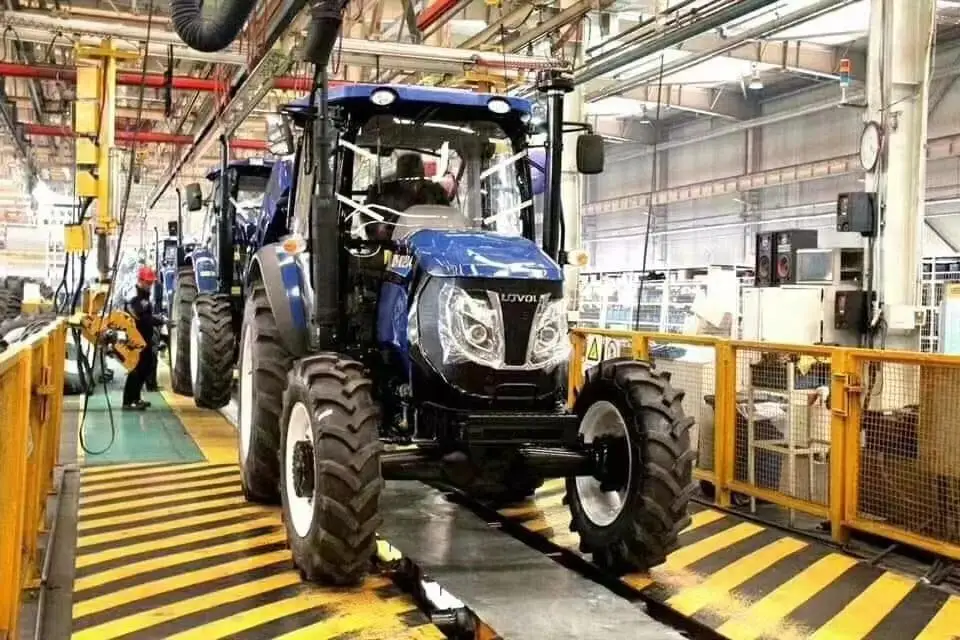

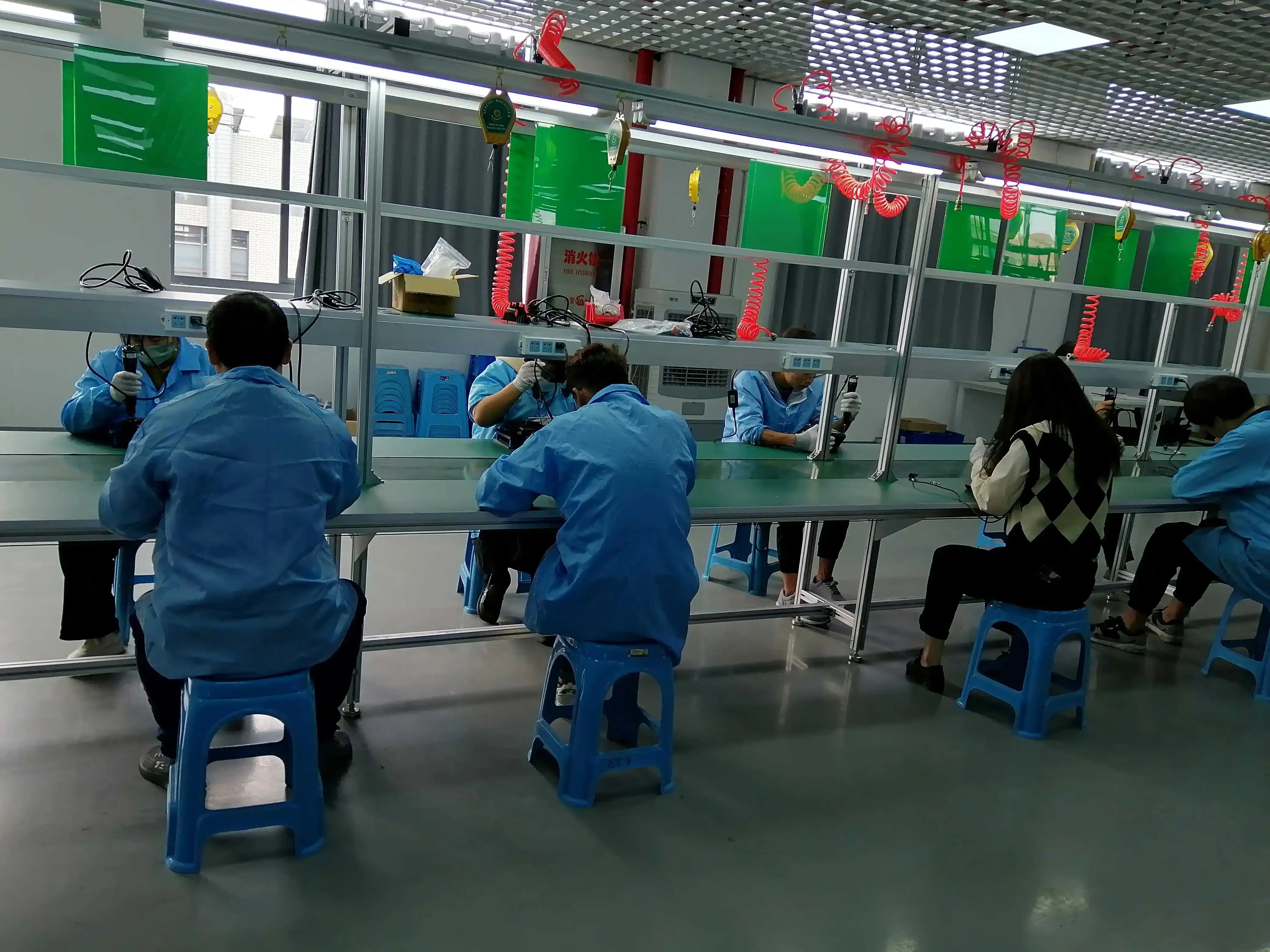

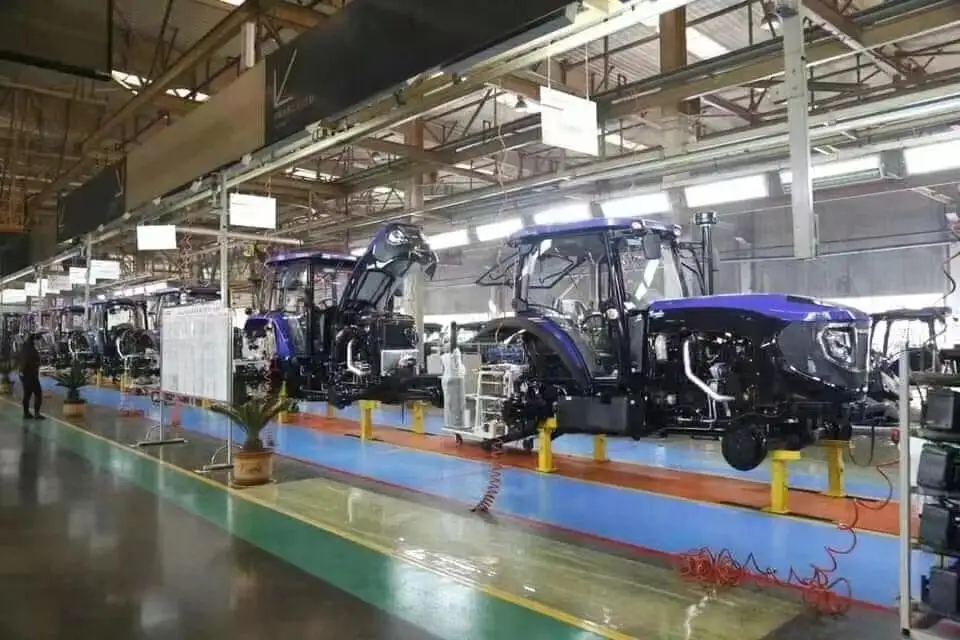

Manufacturing Technique
|
Technical Parameters
|
Unit
|
TB604
|
||
|
Engine
|
QC4105
|
|||
|
Rated Engine Power
*ISO TR14396-ECE R120 |
hp/kw
|
60/44
|
||
|
Type
|
4 cylinders diesel (Stage 3 ,Second stage Optional)
|
|||
|
Rated Engine Speed
|
rpm
|
2400
|
||
|
Max. Torque ISO TR14396
|
Nm
|
>235
|
||
|
Raded PTO Power
|
kW
|
37.5
|
||
|
Displacement
|
ltr
|
4.087
|
||
|
Fuel Tank Capacity
|
ltr
|
65
|
||
|
Transmission
|
||||
|
Dry Dual Clutch (Ceramic disk)
|
in.
|
10
|
||
|
12F+12R Collar Shift
|
Standard
|
|||
|
12F+12R Synchro Shift
|
Optional+$ 158
|
|||
|
Speed Range
|
km/h
|
Forward(2.37~38.46)/ Reverse(2.07-33.71)
|
||
|
Differential Lock
|
Standard
|
|||
|
Power Take-Off 540/1000 rpm
|
Standard
|
|||
|
Brakes
|
||||
|
Type
|
Wet disc, Mechanical
|
|||
|
Parking Brake
|
Mechanical,Independent of main brakes,Hand lever operated
|
|||
|
Air Trailer Brake
|
Optional +$100
|
|||
|

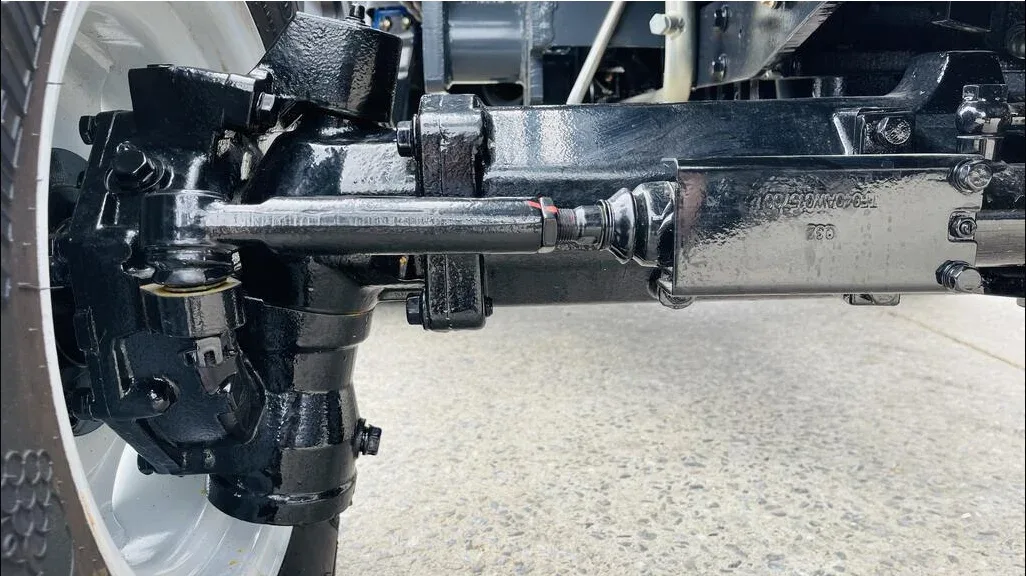

Front Axle
|
||||
|
4WD Front Axle
|
Standard
|
|||
|
Steering Angle
|
°
|
>40
|
||
|
Turning Radius Without Brake
|
m
|
4.3±0.3
|
||
|
Turning Radius With One Side Brake
|
m
|
3.8±0.3
|
||
|
Hydraulic Power Lift
|
||||
|
Type
|
Combined Control on Force and Position, Floating Control
|
|||
|
Cat. II Three Point Hitch
|
Standard
|
|||
|
Hydraulic Flow
|
l/min
|
46.8
|
||
|
Lift Capacity at Lift Point
|
kg
|
2200
|
||
|
Lift Capacity at 610mm behind Hitch Point
|
kg
|
1400
|
||
|
No. of Remote Valves
|
2
|
|||
|
Cab and Driving Seat
|
||||
|
Fan Cab
|
Standard
|
|||
|
Air Conditioning
|
Optional + $317
|
|||
|
Tires and Weights
|
||||
|
Front Tires
|
Standard
|
8.3-20
|
||
|
Rear Tires
|
Standard
|
12.4-28
|
||
|
Cab Weight
|
kg
|
2540
|
||
|
Overall dimensions(L*W*H)
|
mm
|
4030*1650*2520
|
||
|
Before the weight
|
kg
|
6 pieces
|
||
|
After the weight
|
kg
|
1 layer
|
||

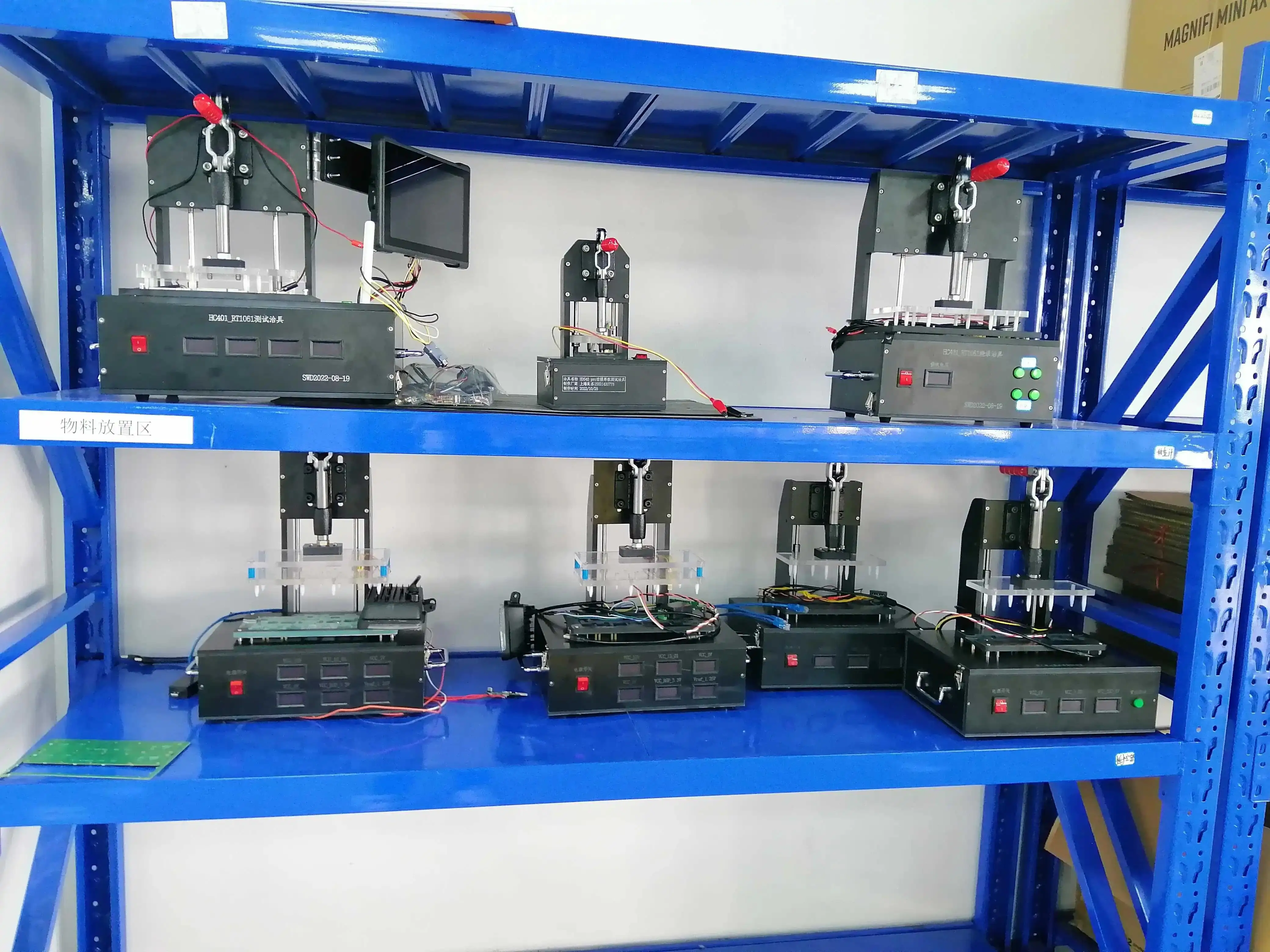

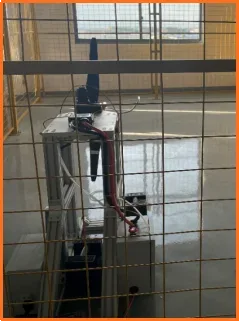

Why Choose Us

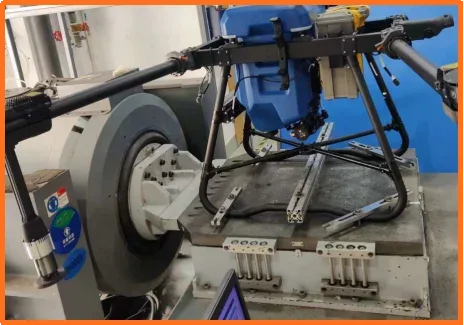

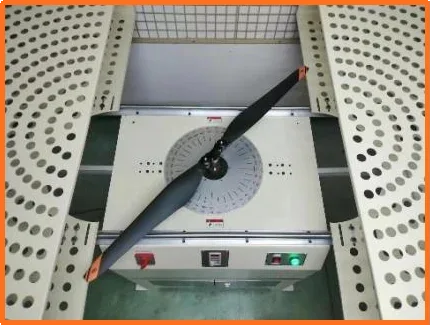

Propeller dynamic balance test
Pull test

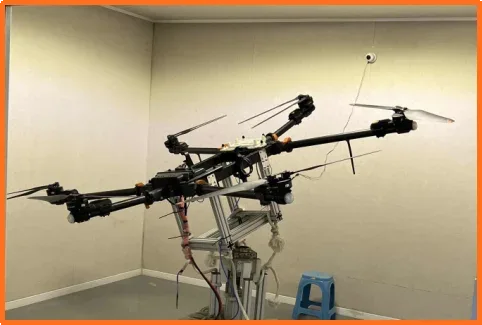

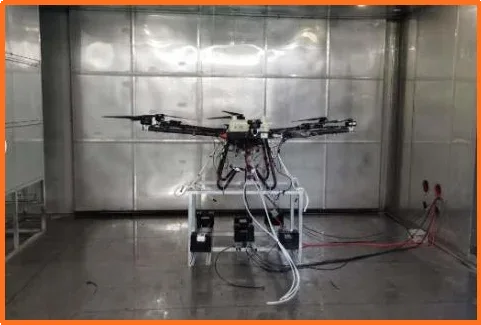

Flight control system high temperature and high humidity test

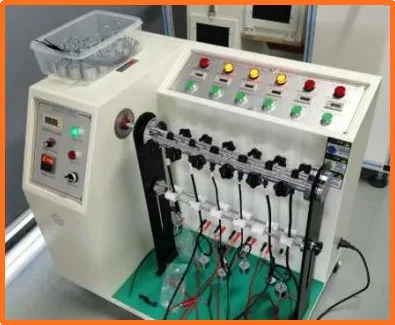

Harness Pull Test

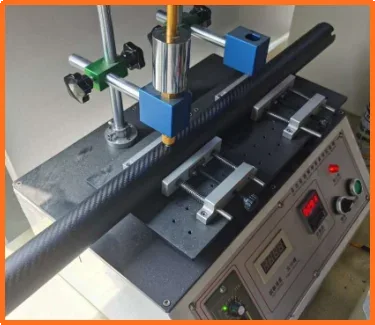

Carbon tube pressure and friction test

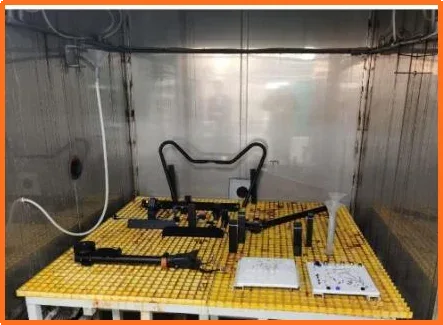

Modular Salt Spray Test

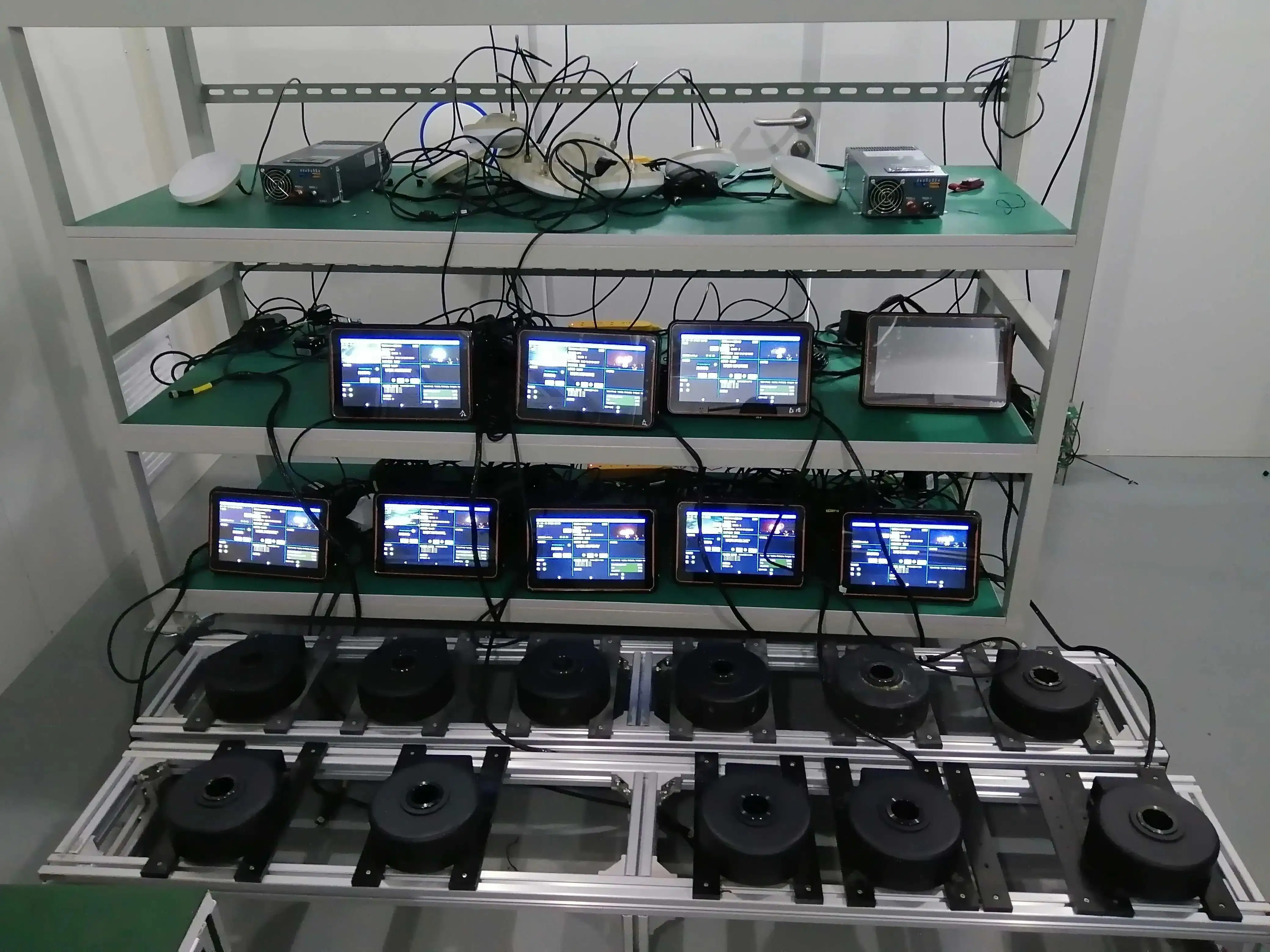

Machine Aging Test

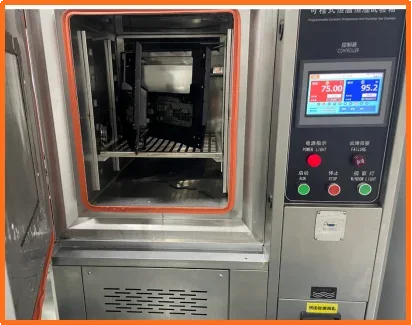

Whole machine high temperature test
Machine Vibration Test

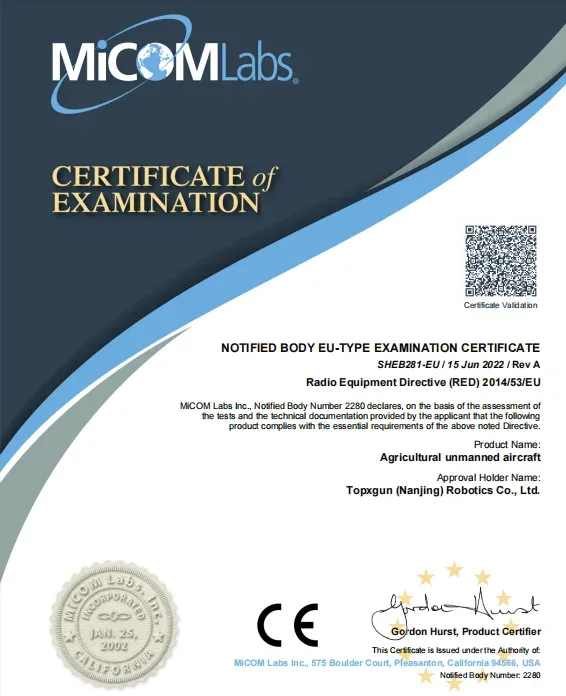

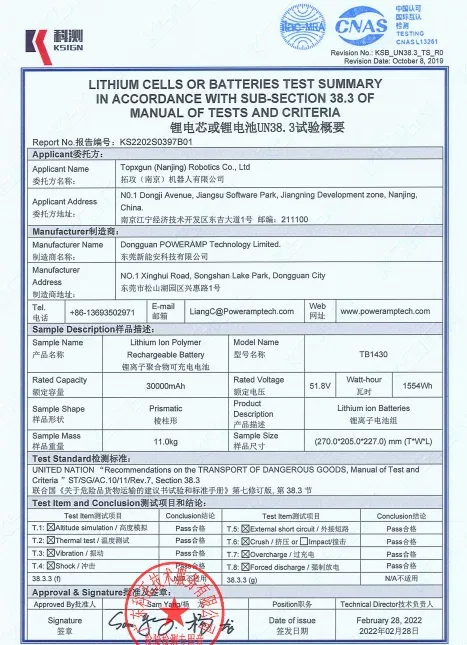

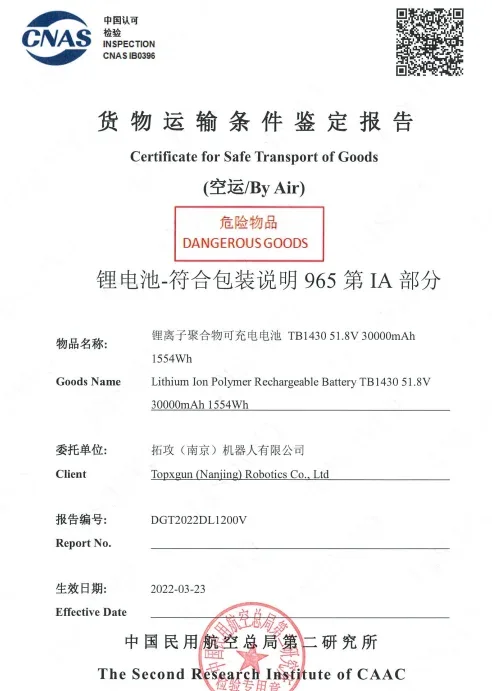

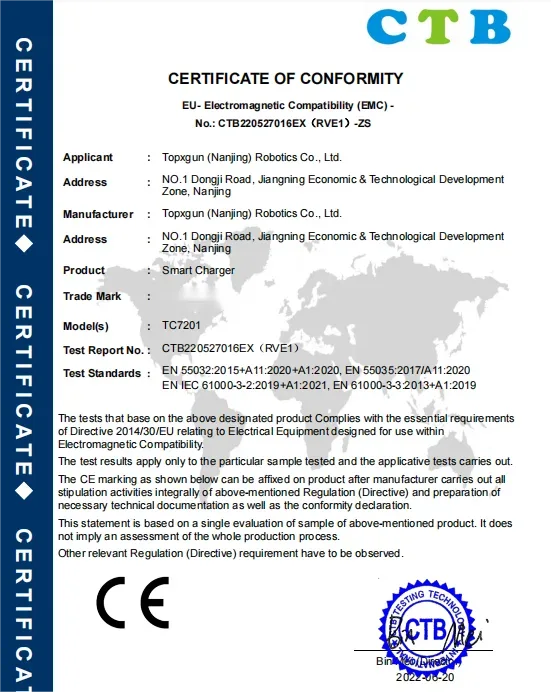

Certifications

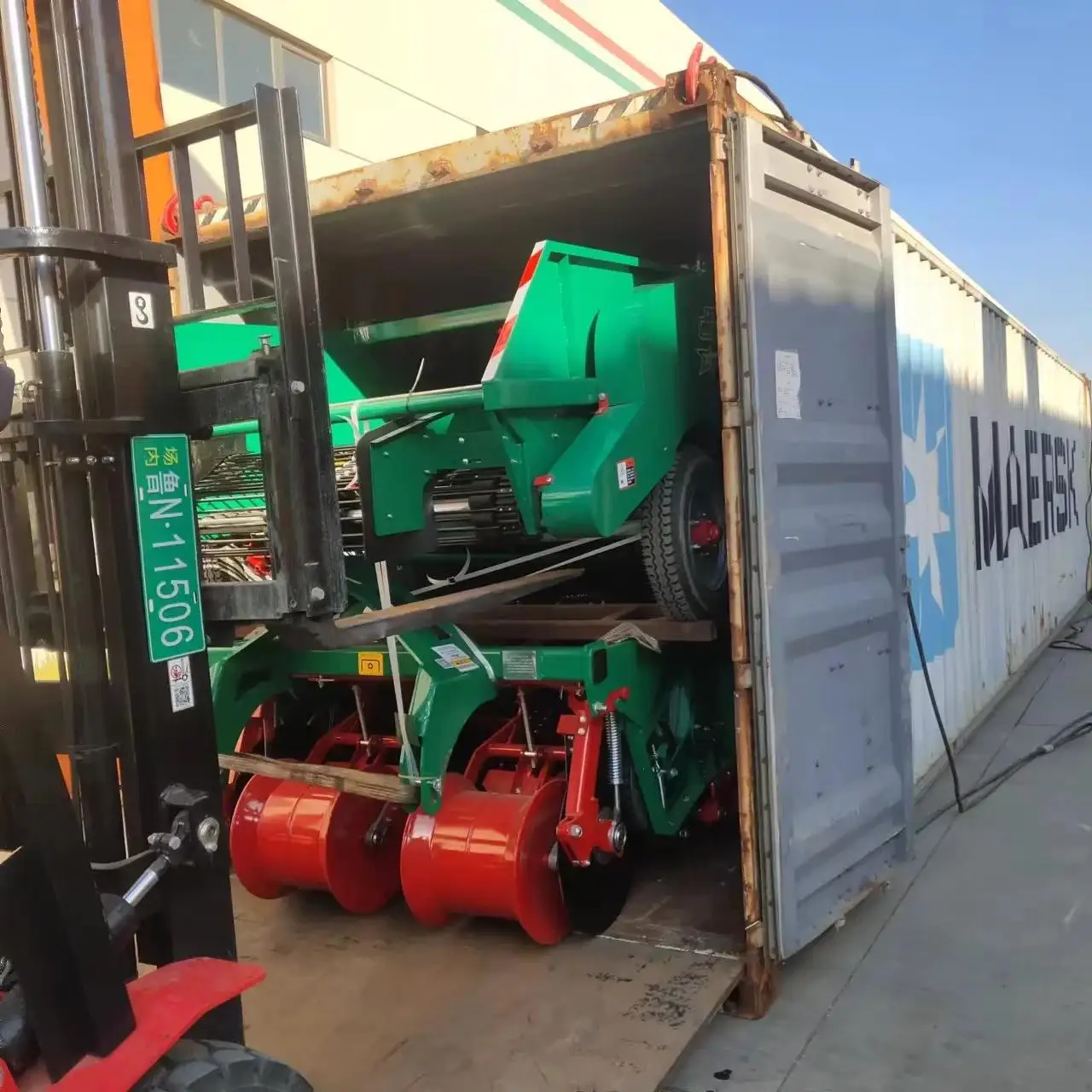

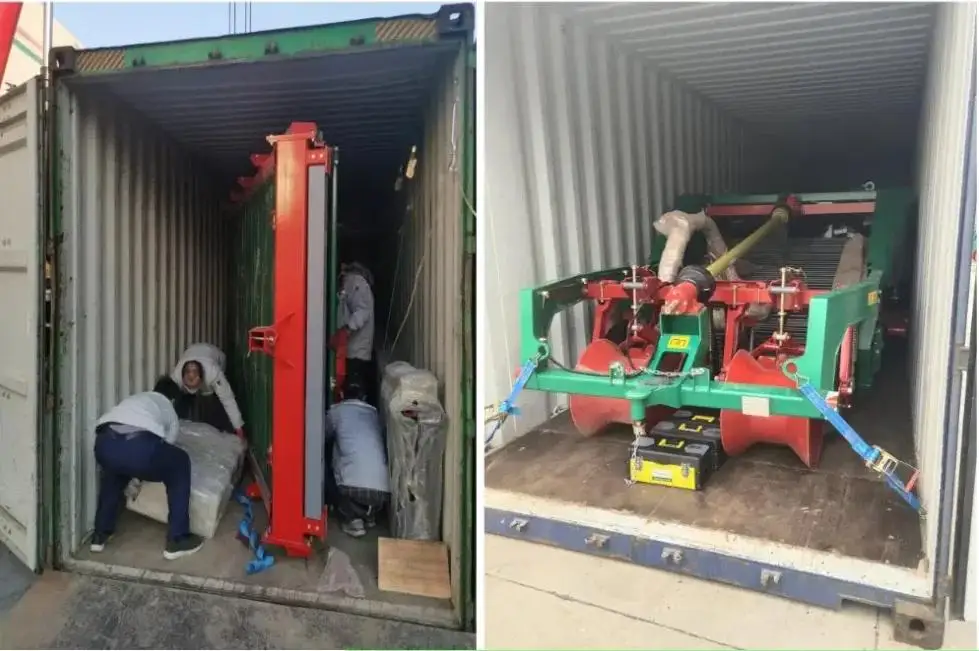

Product packaging

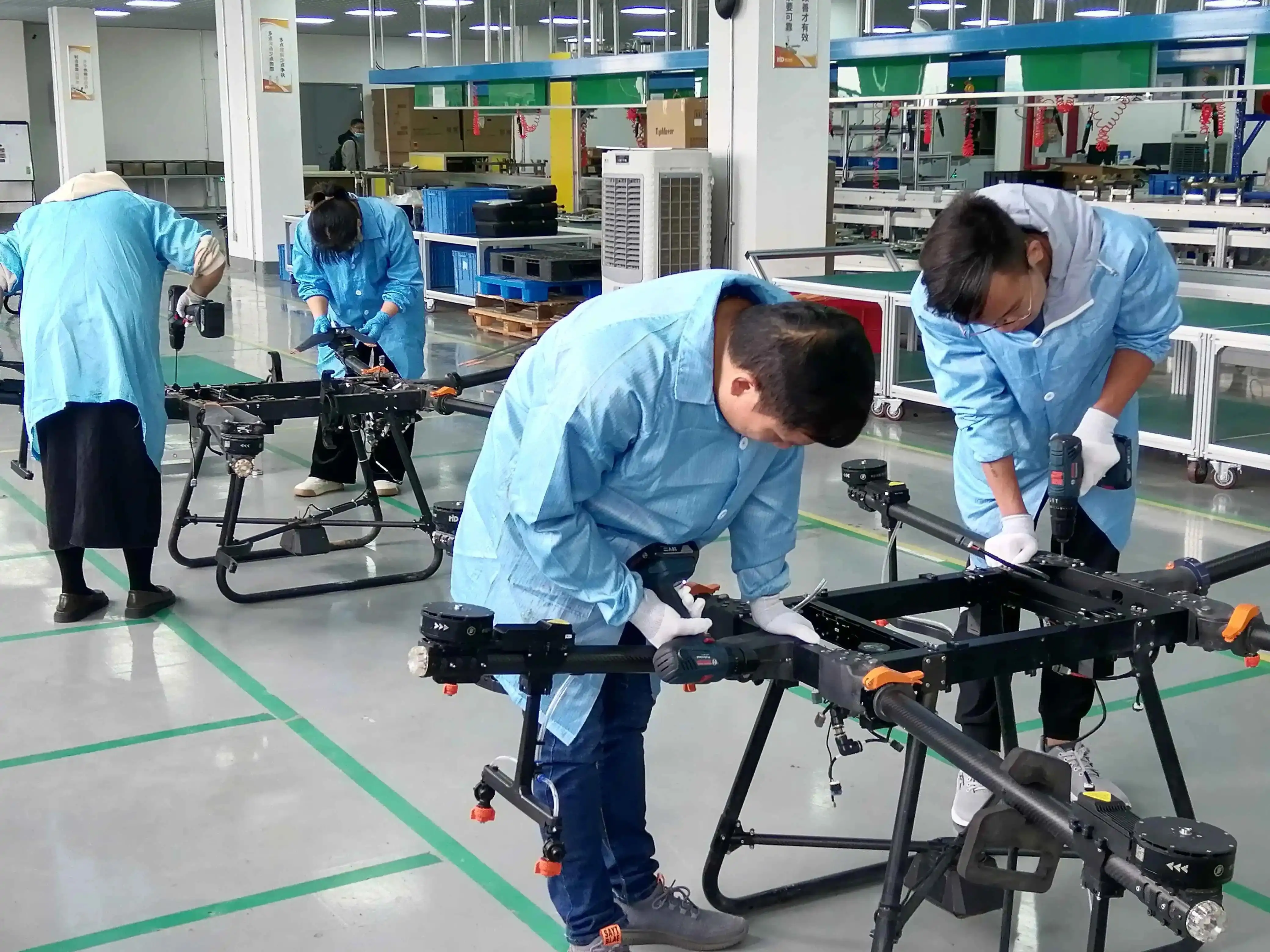

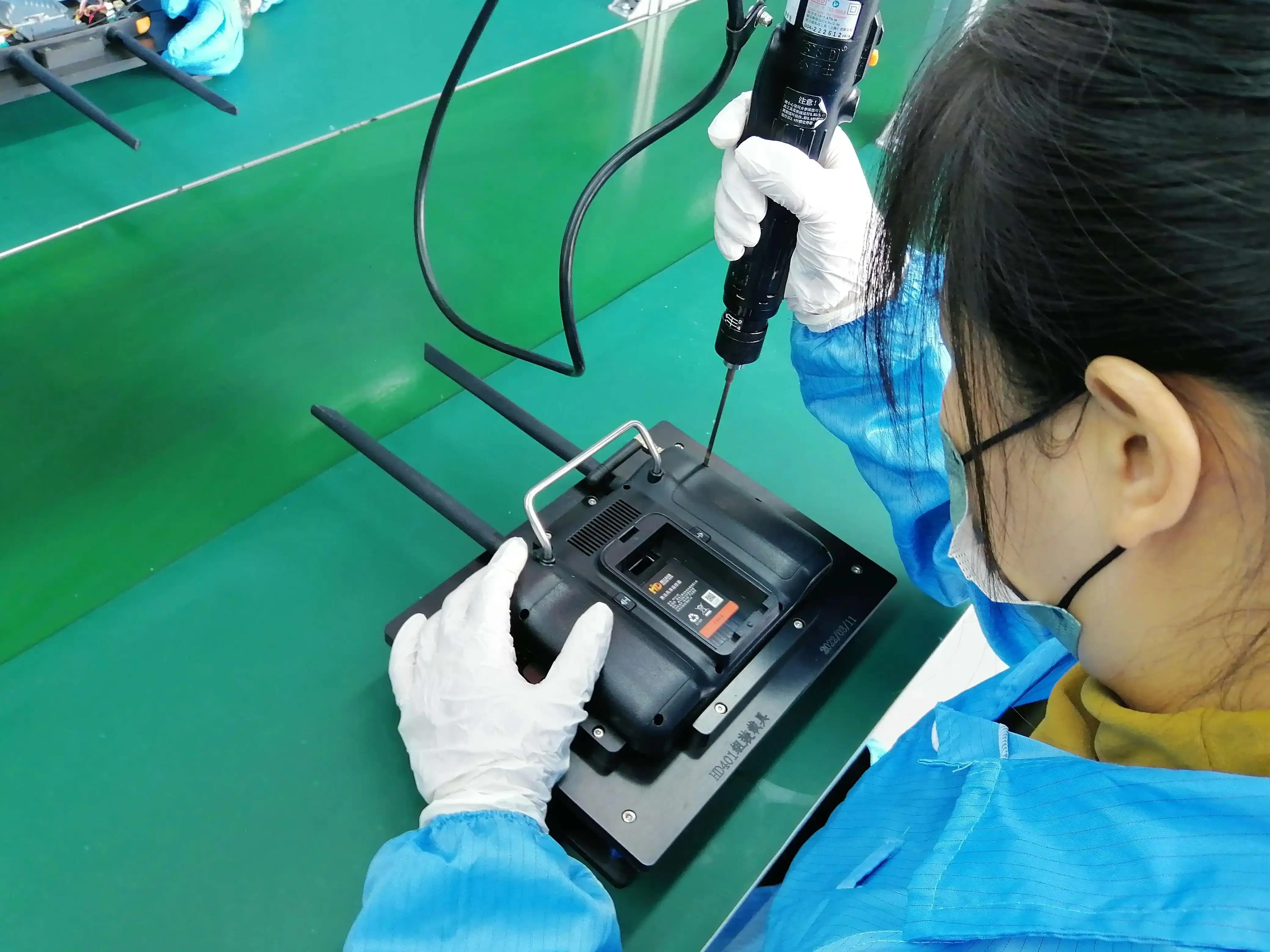

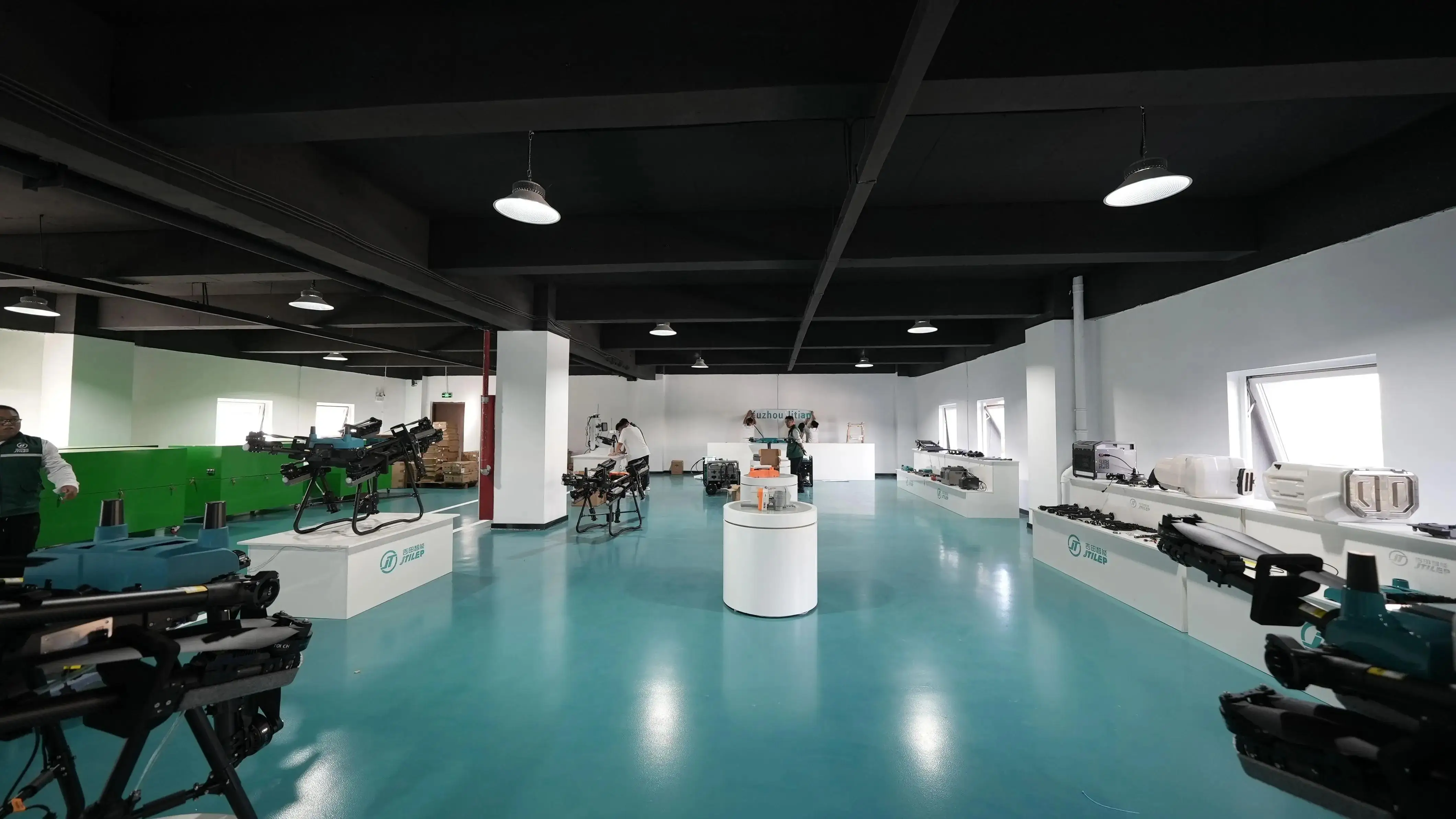

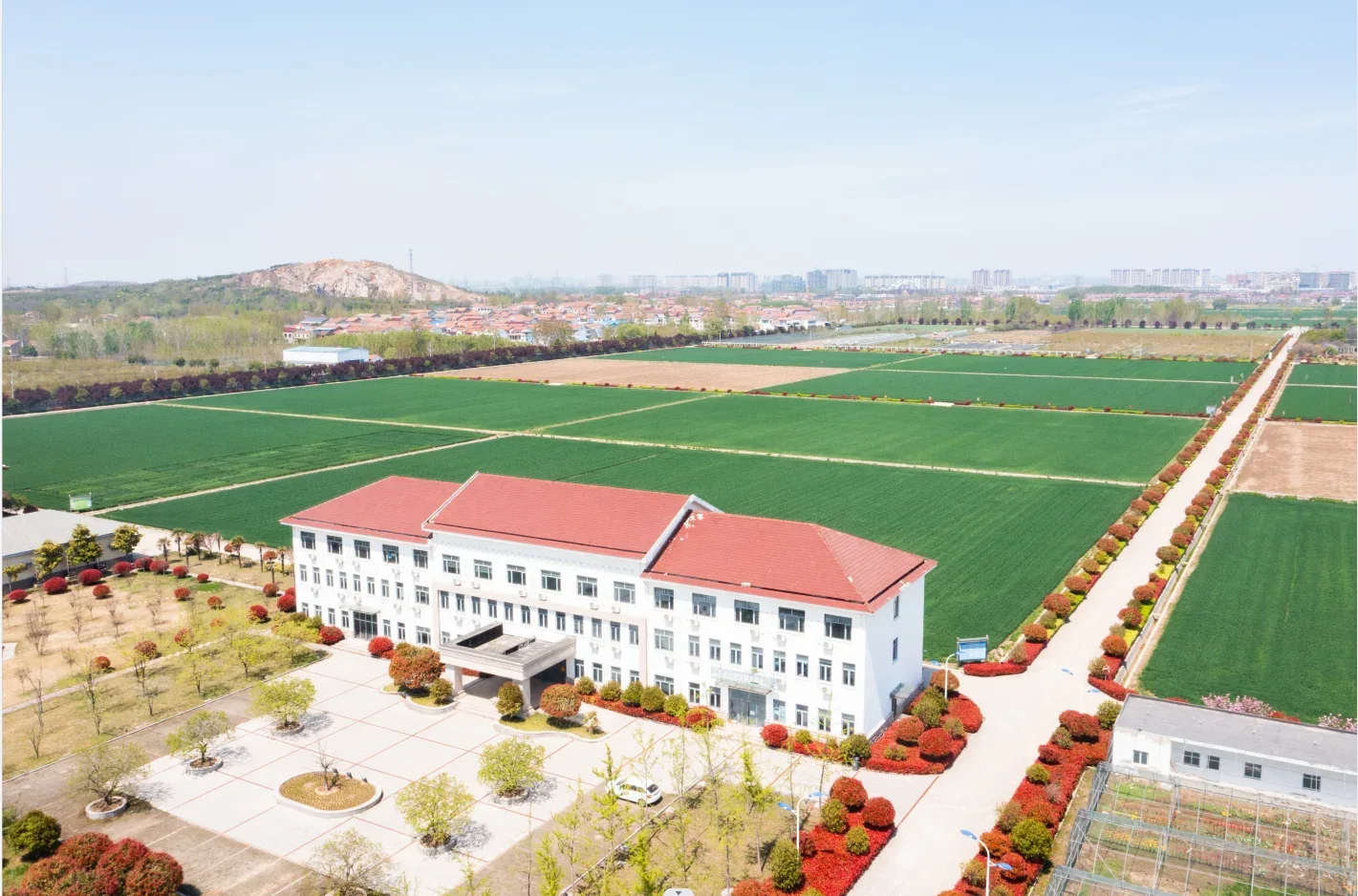

Company Profile
Jitian lntelligent focuses on the intelligent agriculture, and is committed to the research & developthe agricultural drones, the automatic driving systems of agricultural machinery, and the intelligentagricultural systems. Xuzhou Jitian lntelligent Equipment Co., Ltd., headquartered in Xuzhou, JiangsuProvince, has more than 400 employees, including more than 190 R&D talents, accounting for about47% of the total number of employees. At the same time, it has in-depth and extensive scientific research and technical cooperation with Harbin Institute of
Technology.Jitian products cover more than 30 countries around the world, radiate 28,000+ overseas enterprises.manage 10W+ sets of agricultural machinery equipment, and have a total detection area of 450 millionmu (74 milion acres).Agricultural machinery intelligent detection terminals have a market share ofmore than 70% in China.After years of efforts, Jitian lntelligent has continuously expanded its servicearea and qradually has the ability to provide agricultural information services covering the whole China.
