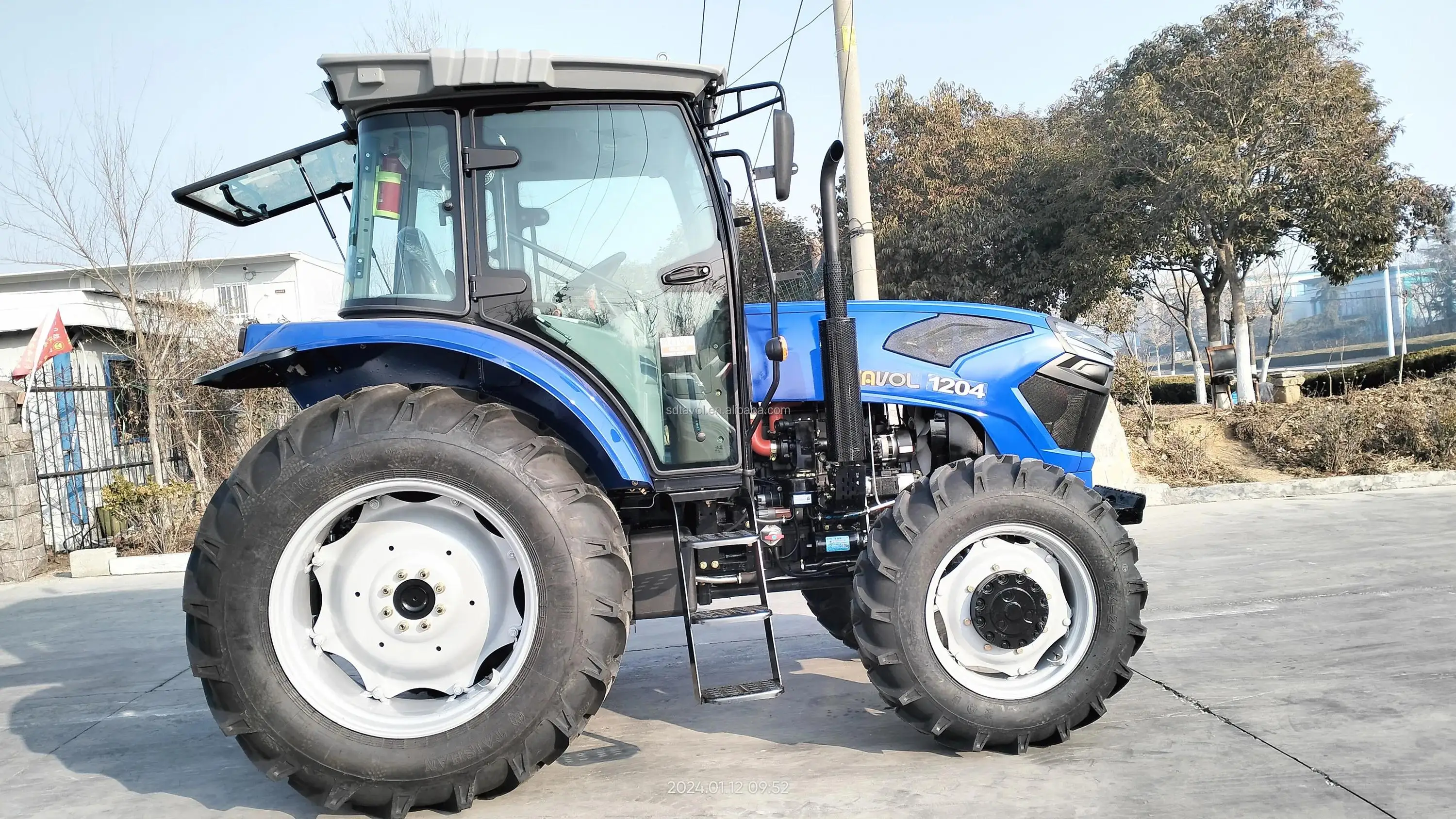

Farm Tractor 4×4 Agricultural Tractor 120 HP
Clear Configuration
|
tavol 120HP Tractor Main Parameters
|
||||||
|
Model
|
TL1204 120hp, 88.2kW
|
|||||
|
Type
|
4*4
|
|||||
|
Machine parameters
|
PTO power (KN)
|
79.4
|
||||
|
Rated Traction( KN)
|
28
|
|||||
|
Dimensions(mm)
|
750*2100*2850
|
|||||
|
Wheelbase(mm)
|
2475
|
|||||
|
Track(mm)
|
1850Front wheel
|
1790,1890,1990,2090
|
||||
|
Rear wheel
|
1620-2020
|
|||||
|
Minimum ground clearance(mm)
|
365
|
|||||
|
Turning circle radius
|
Unilateral braking
|
4.8
|
||||
|
Not unilateral braking
|
4.3
|
|||||
|
Weight (KG)
|
4700
|
|||||
|
Drive Train
|
Clutch
|
double-acting clutch
|
||||
|
Gearbox
|
16F+8R shift
|
|||||
|
Walking steering
|
Tire
|
Front wheel
|
12.4-24
|
|||
|
Rear wheel
|
16.9-34
|
|||||
|
PTO shaft
|
PTO speed r/min
|
540/1000 or 540/1000
|
||||

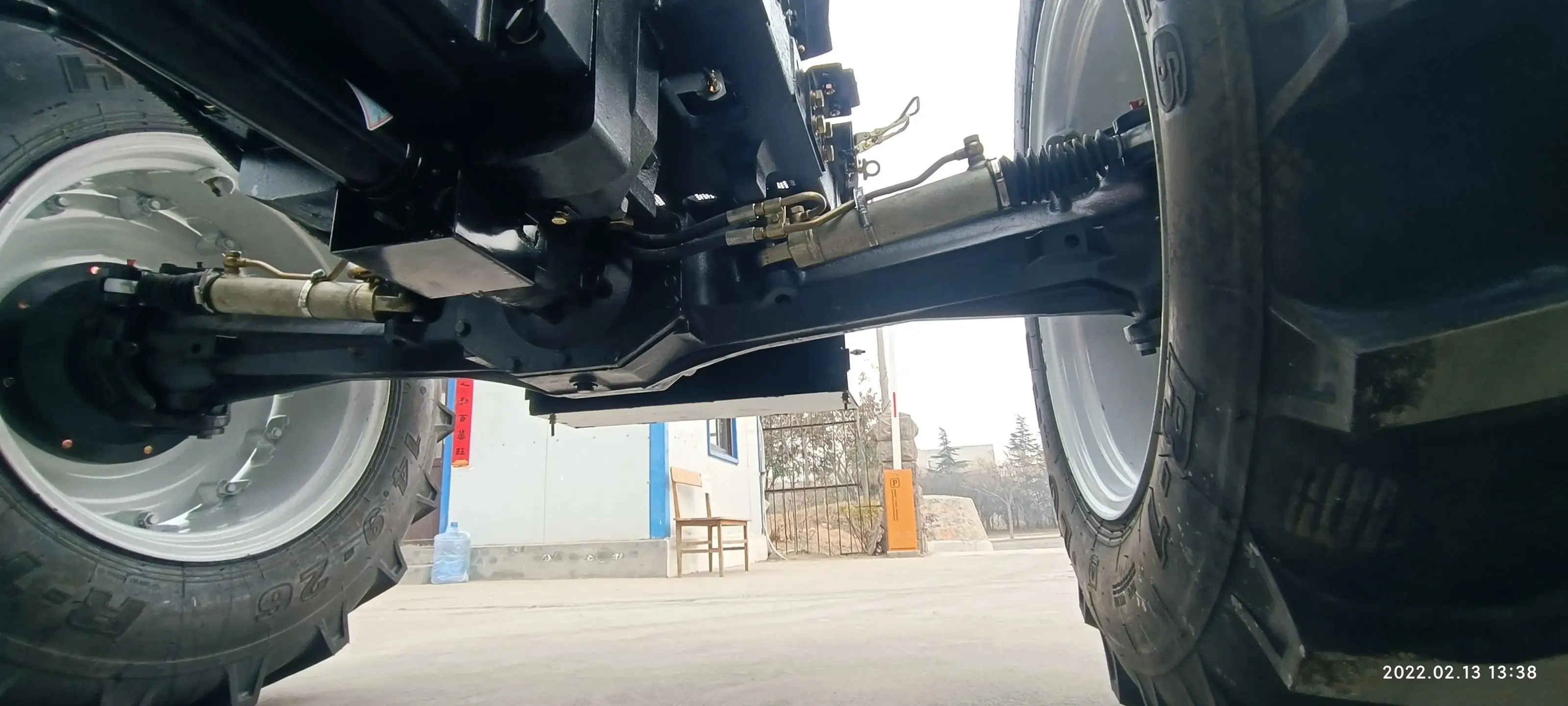

the dual-cylinder steering front axle provides uniform left and right force,large steering angle ,small turning radius,ang flexible steering.
16+8 shift,the gear speed matching is reasonable,and the adaptability is strong,
The water tank uses a three-dimensional dust-proof net with a large air inlet area to prevent debris from entering the water tank which is easy to clean and prevent high temperatures.
Double oil cylinders have strong pressure increase,independent oil supply,stable and reliable ,and strong adaptability to water and dry fields

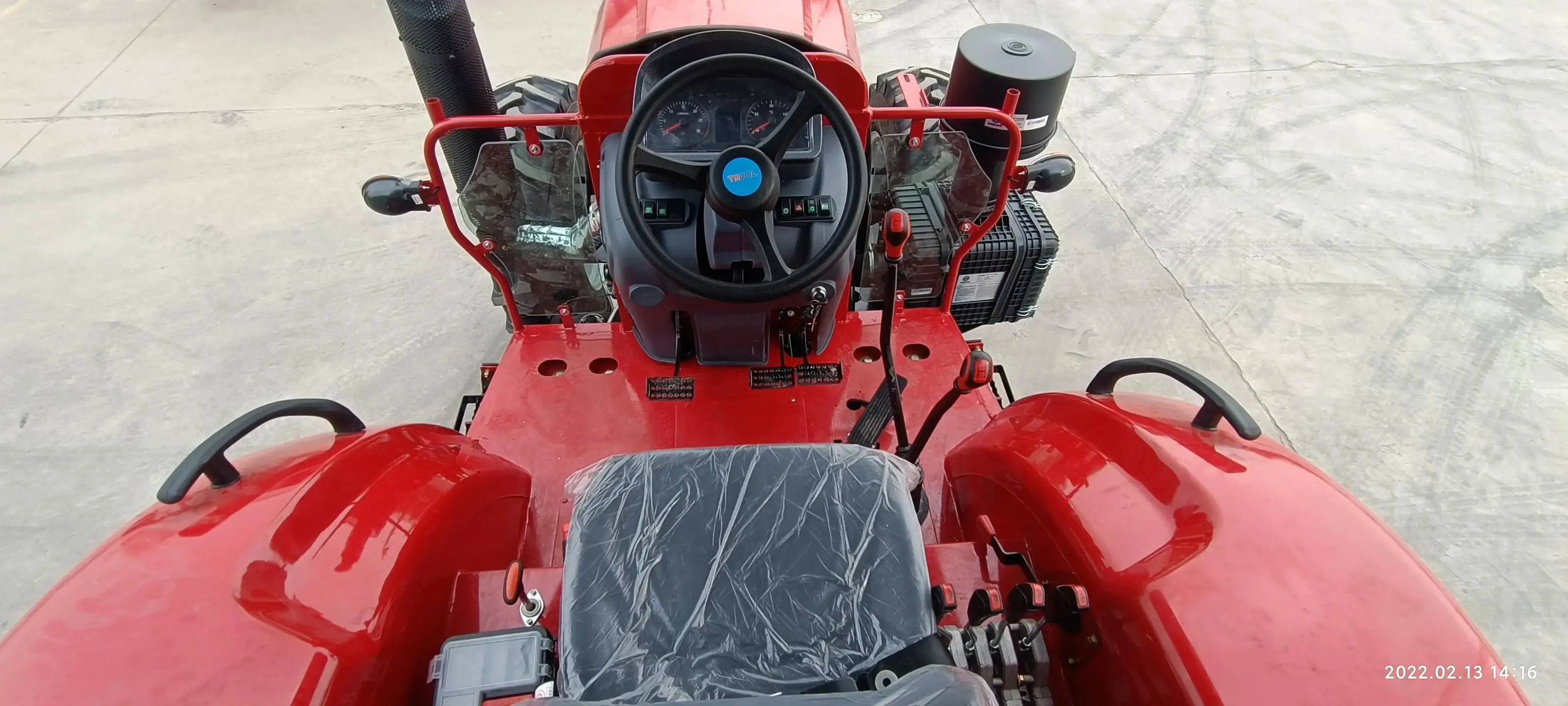

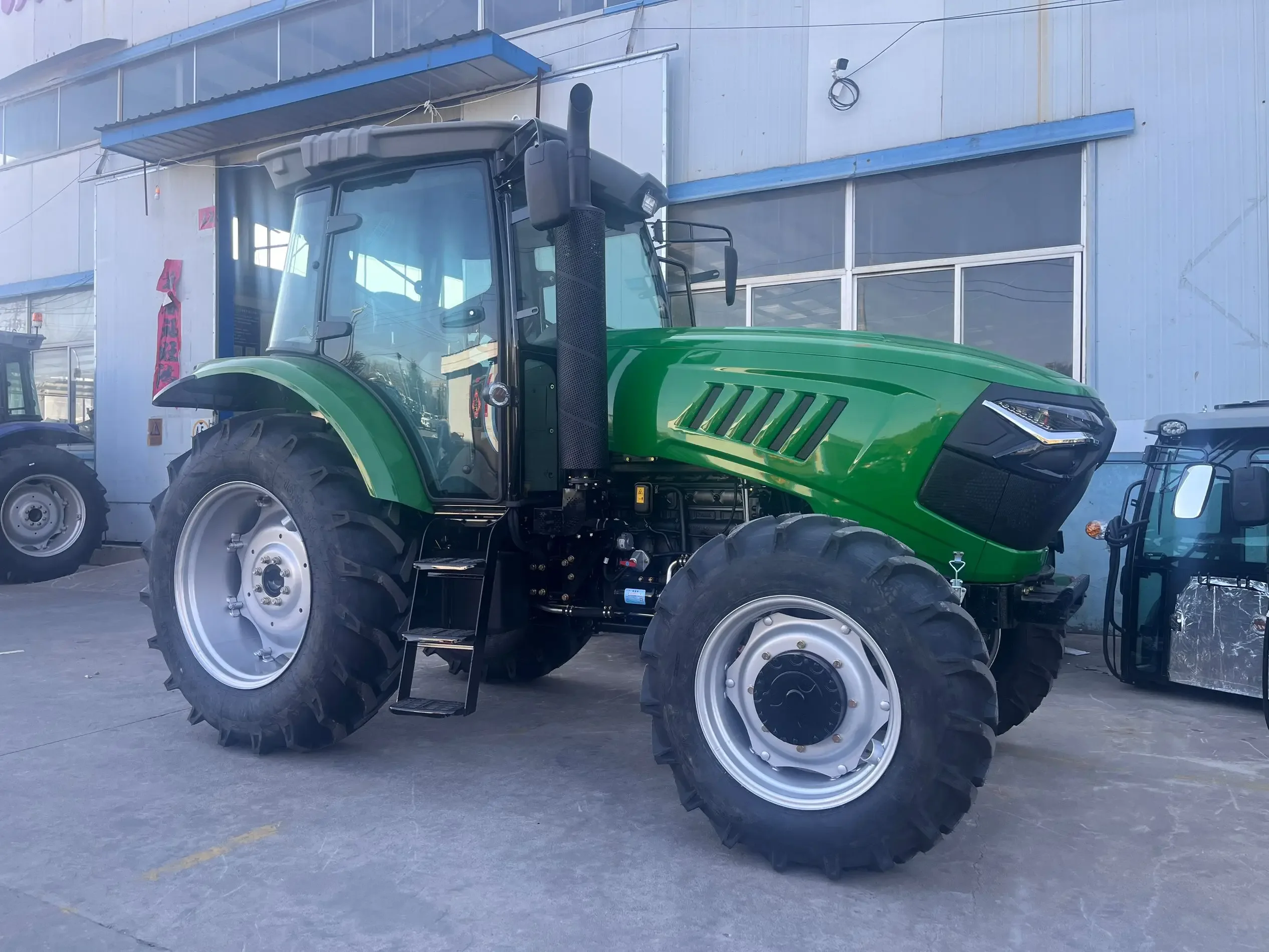

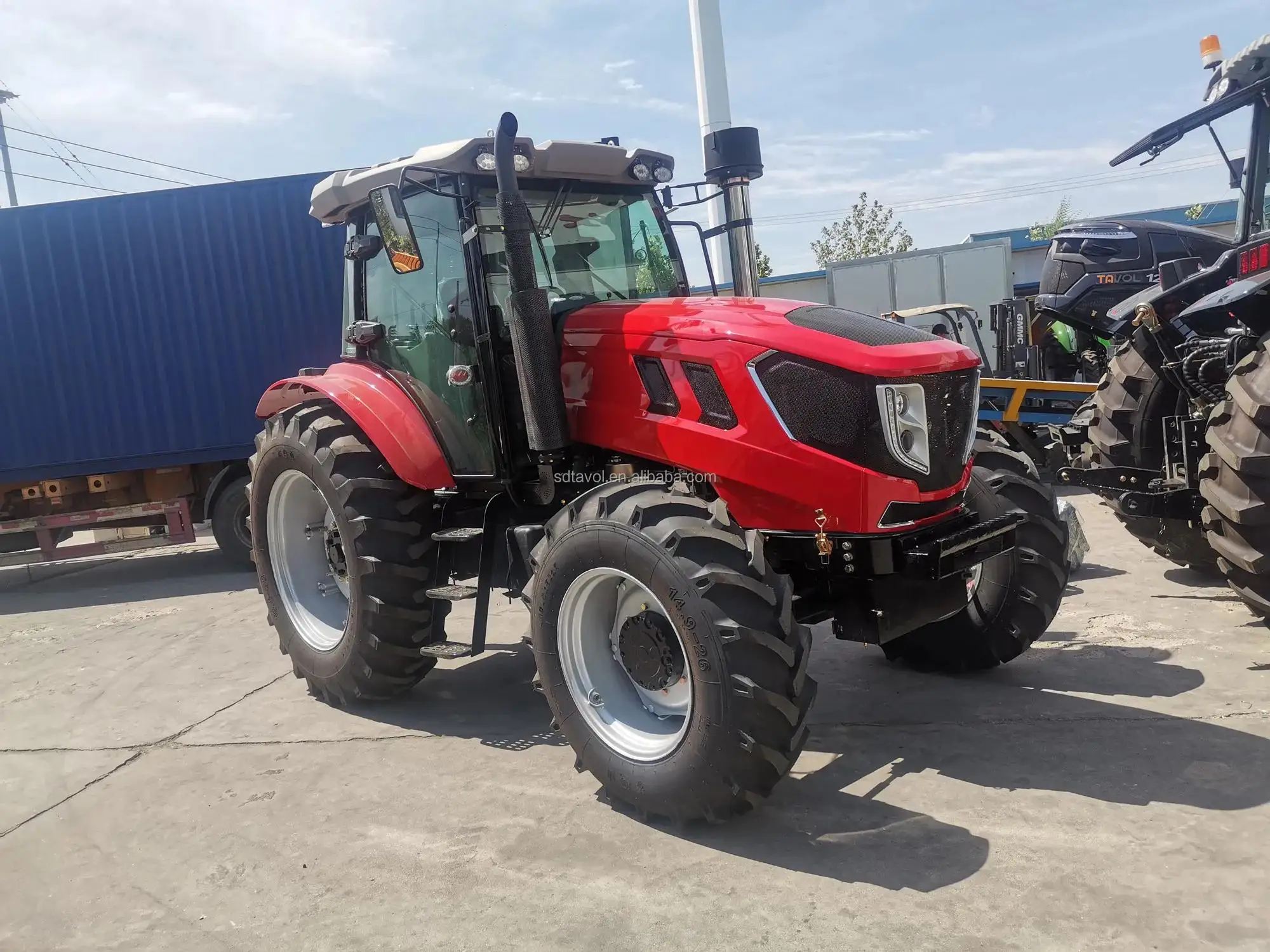

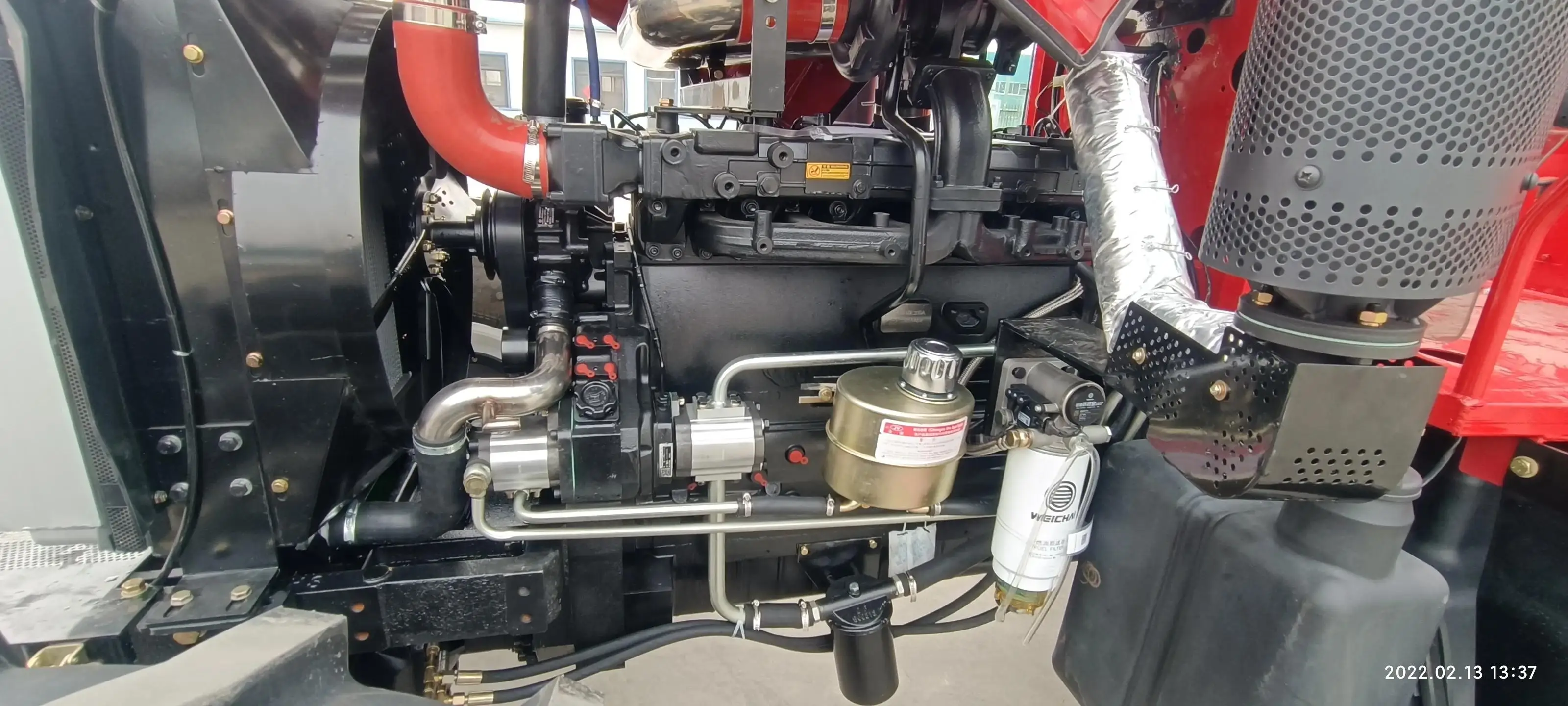

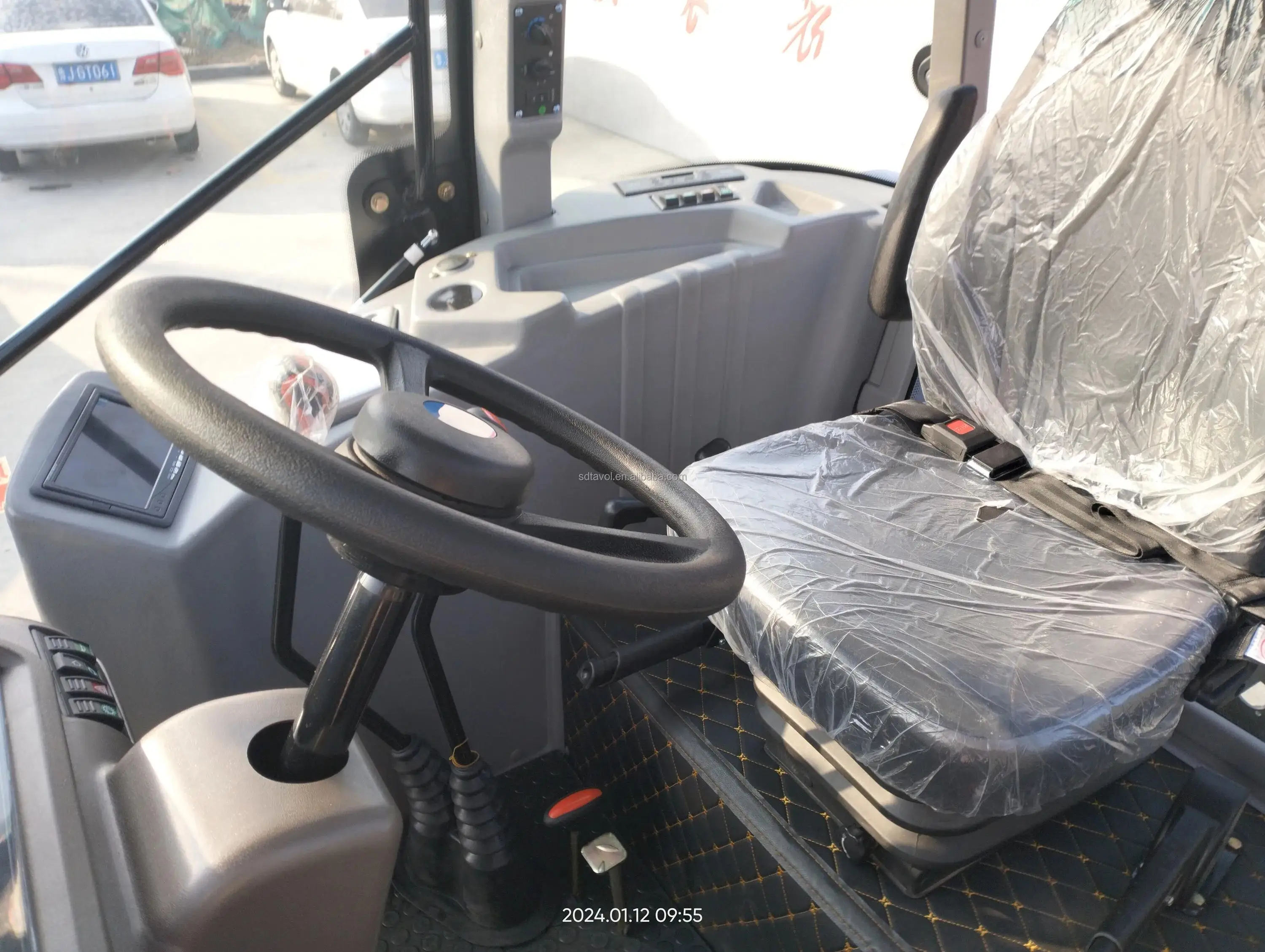

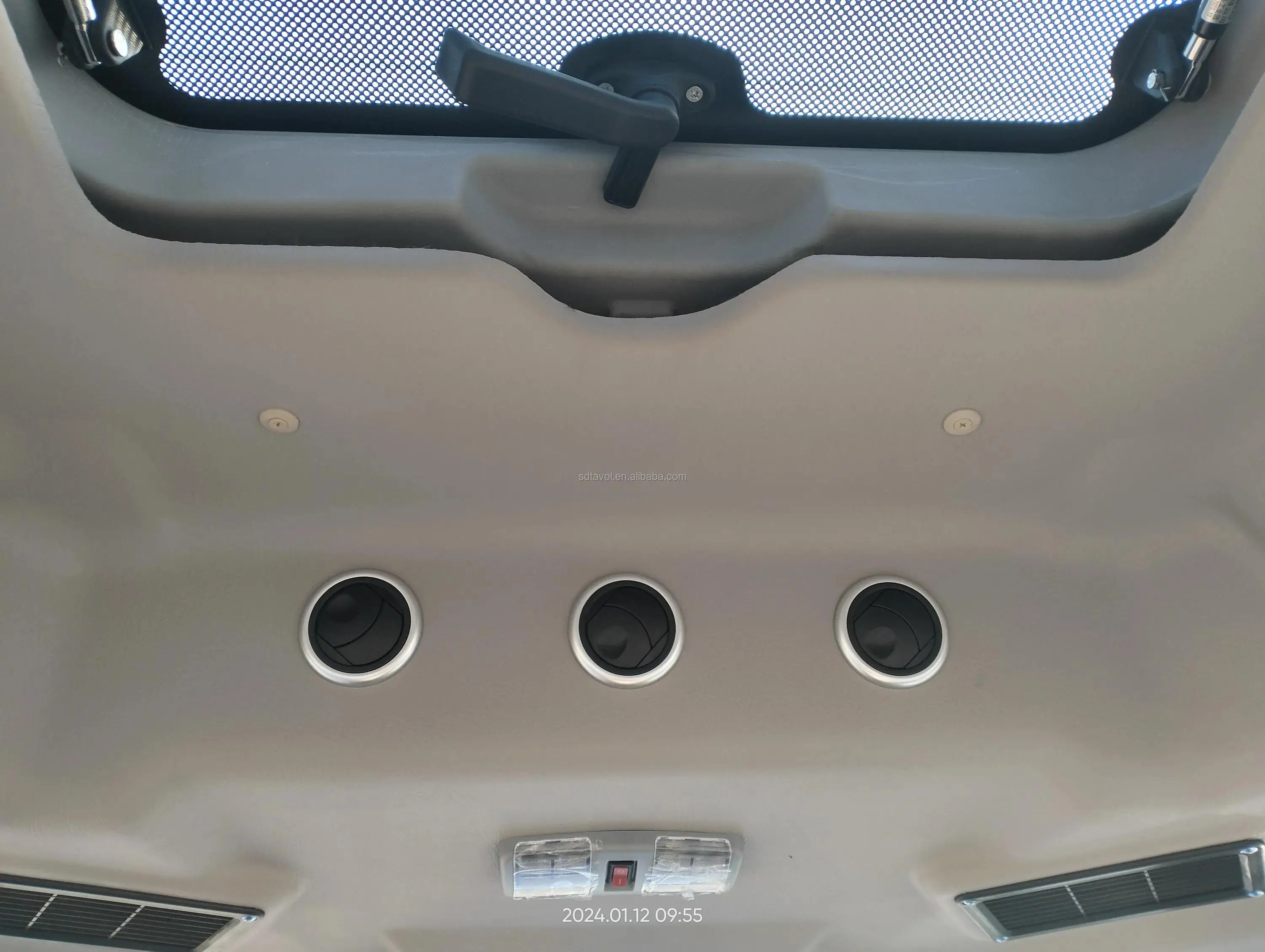

Detailed Images

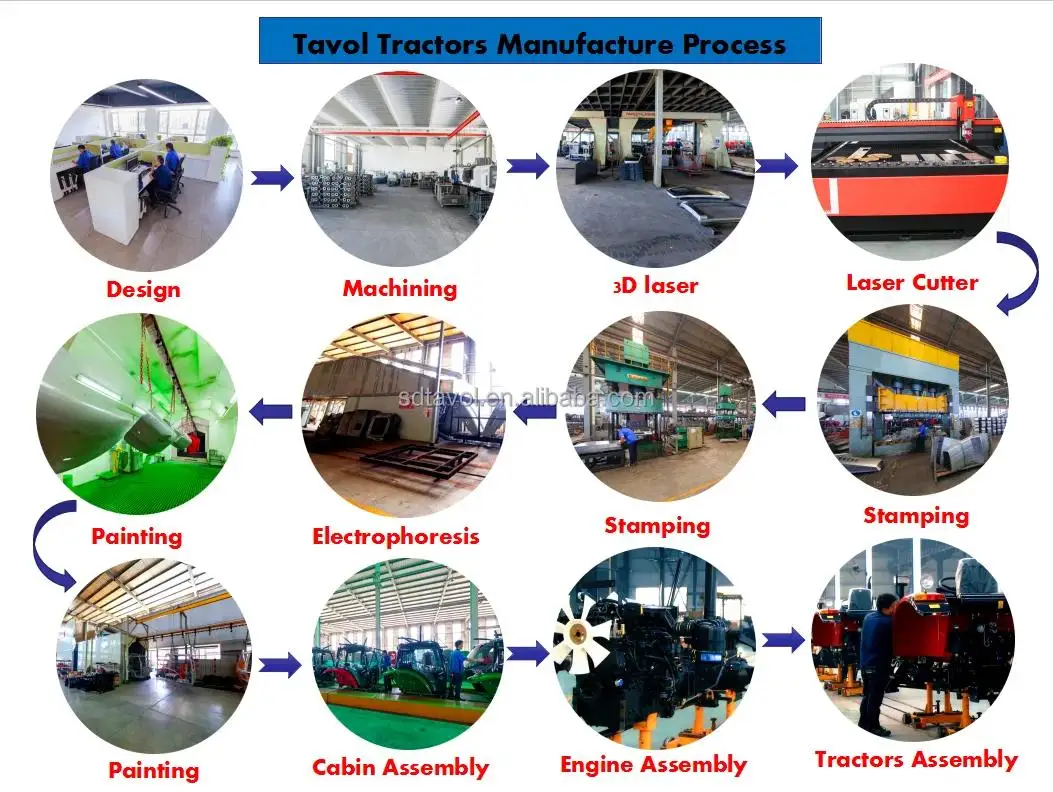

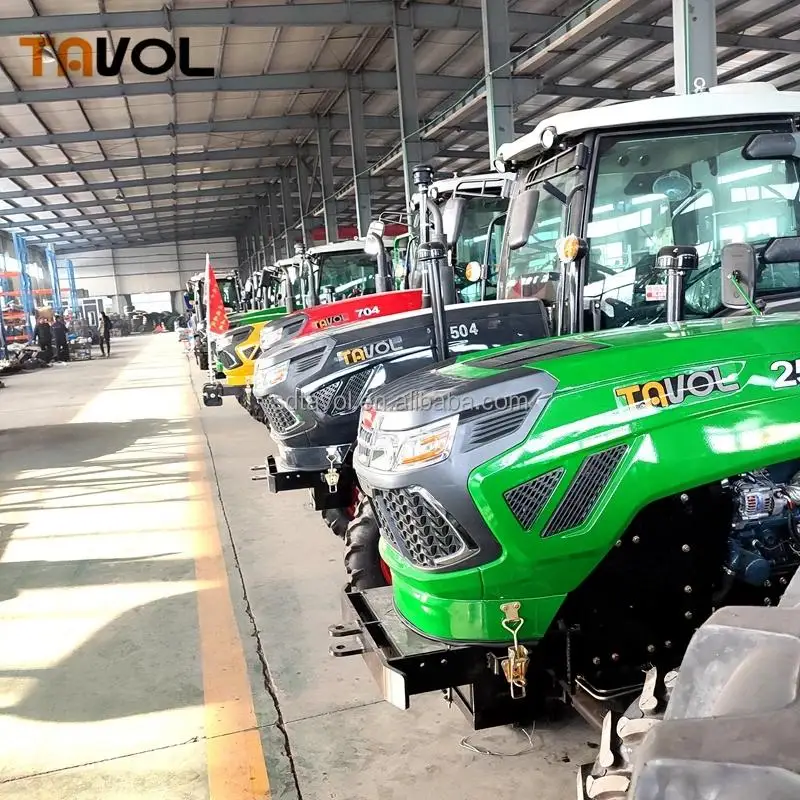

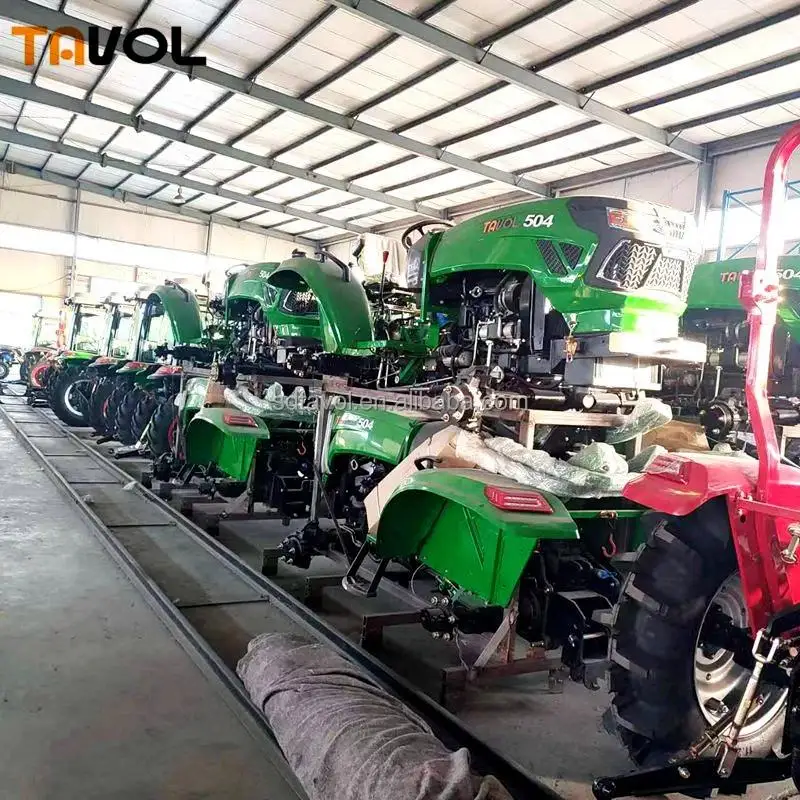

Assembly Process

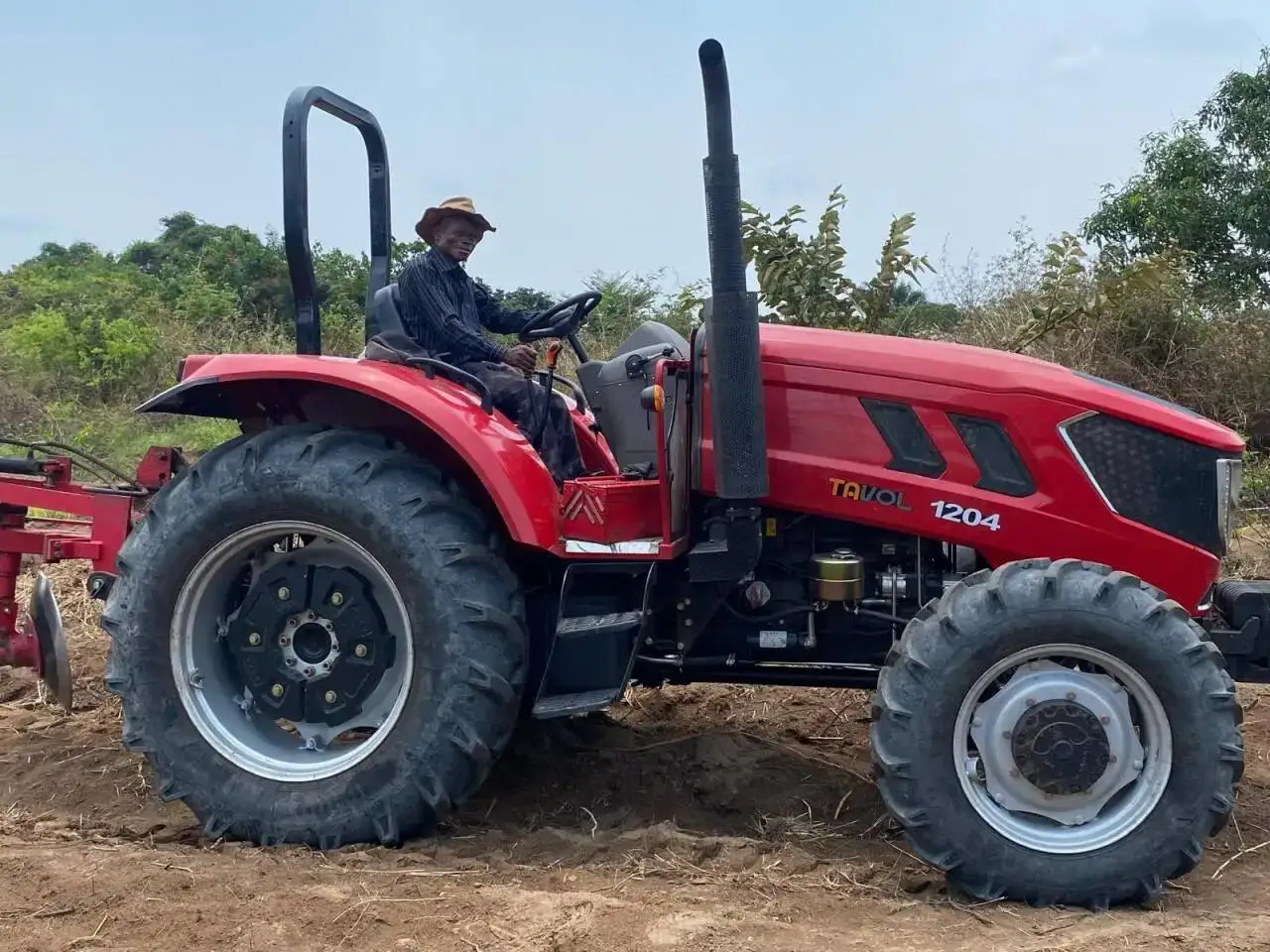

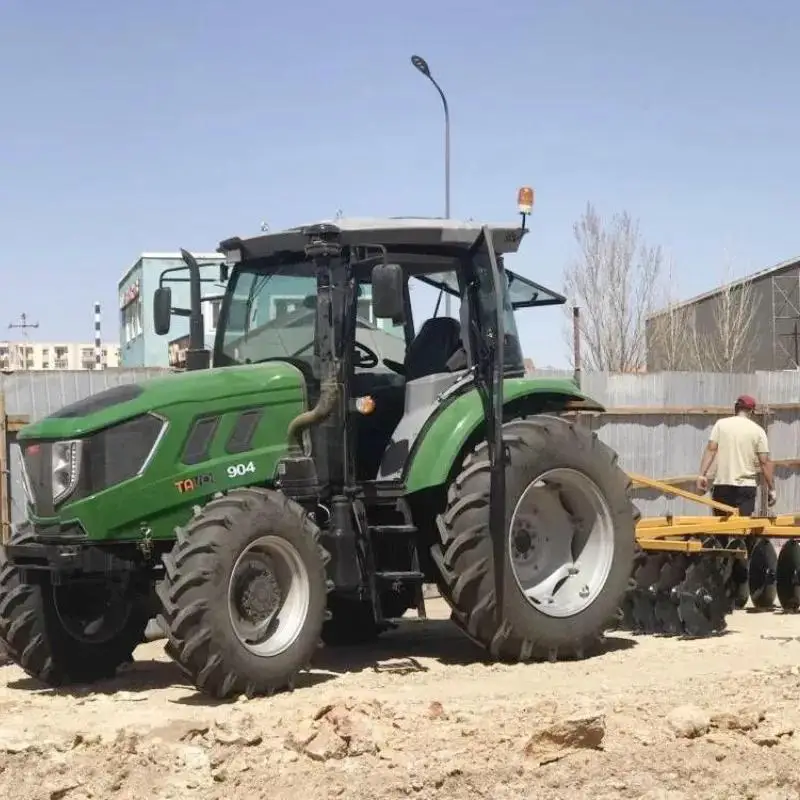

Main application

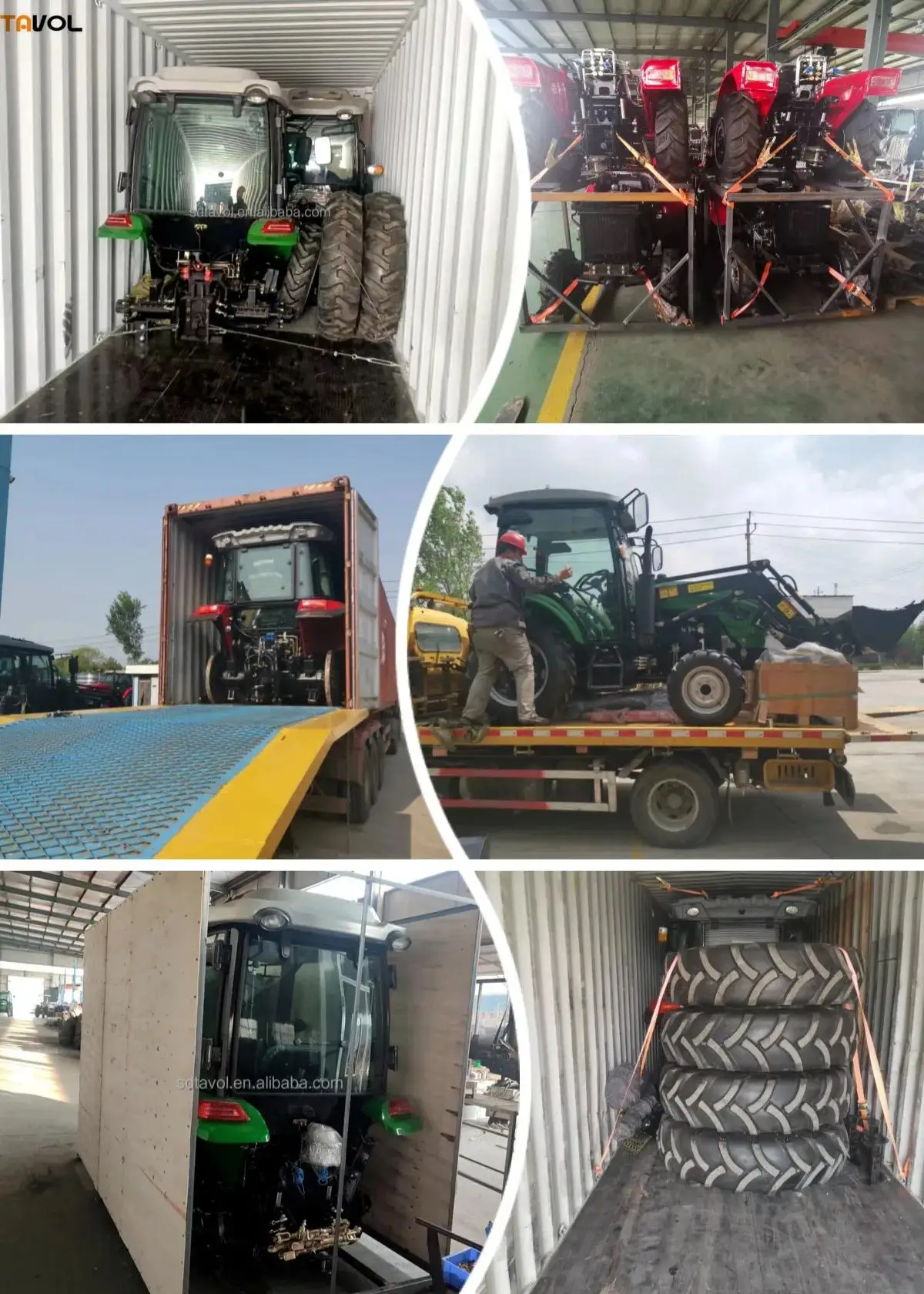

Packing photo
Company information

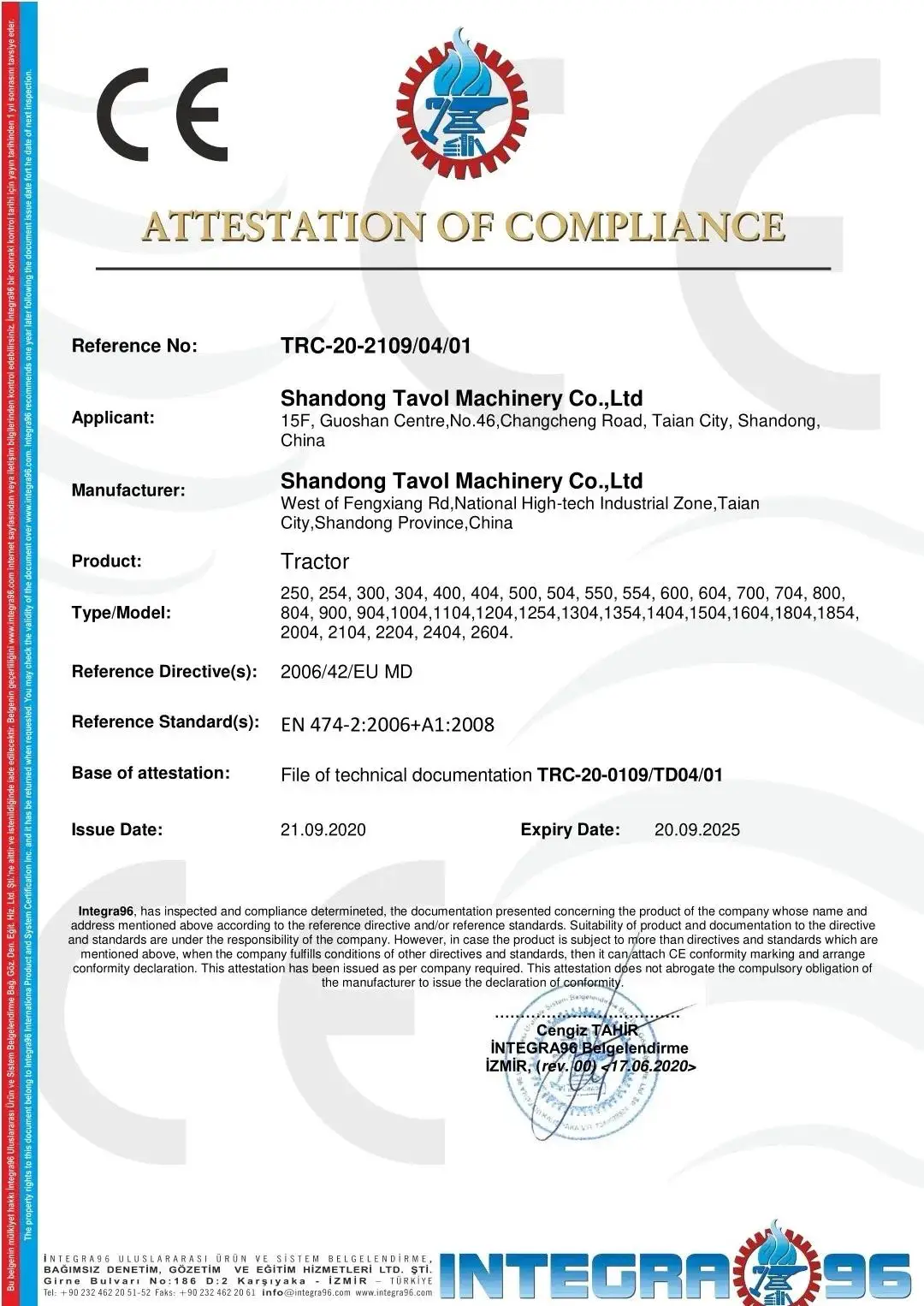

CE

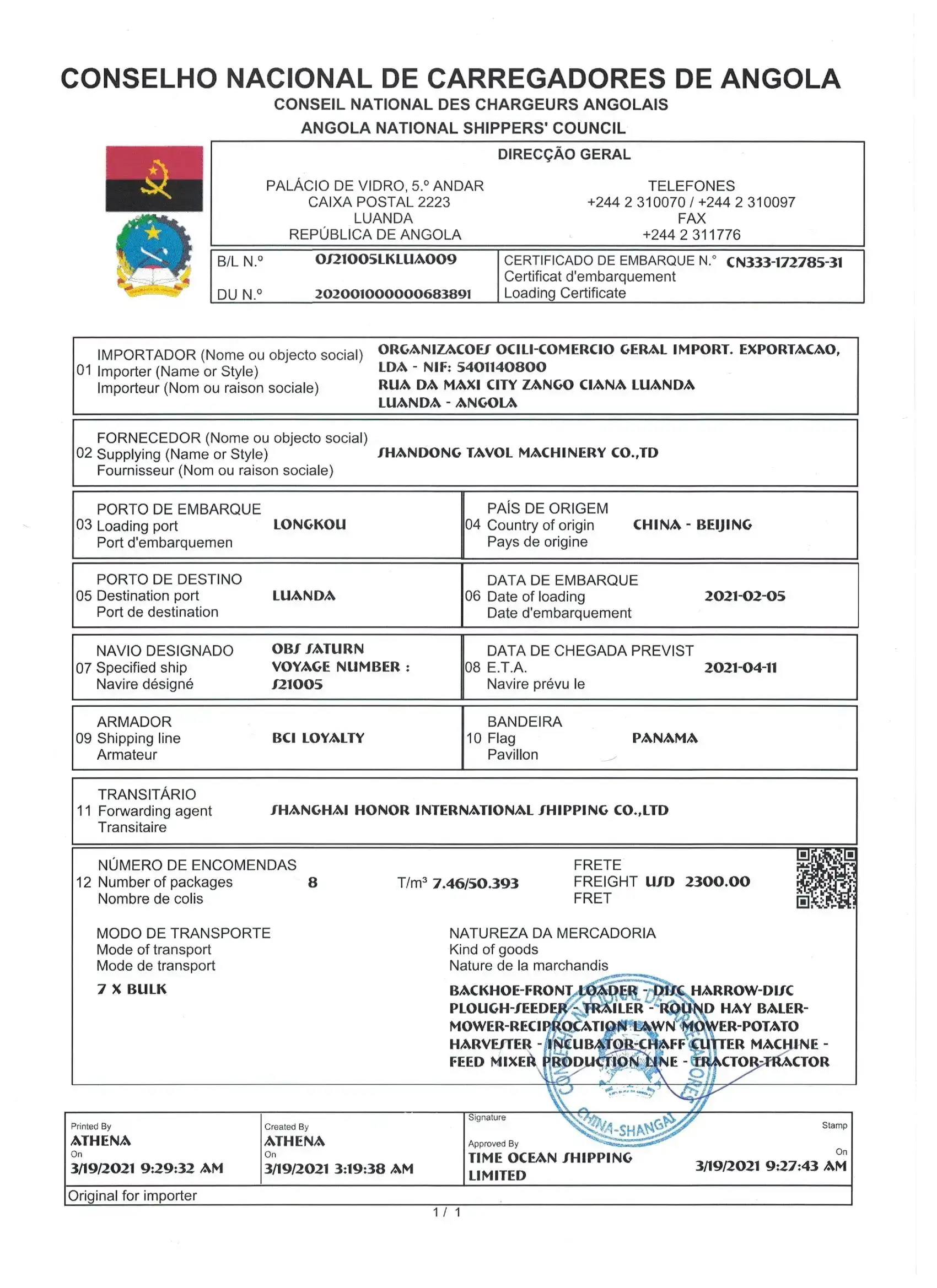

Angola CNCA
Madrid Trademark
Shandong Tavol Agricultural Machinery Co., Ltd
Shandong Tavol Agricultural Machinery Co., Ltd. are Focused on Development Of the Characteristic Agricultural Machinery, Like Paddy Fields, Mountains, Hills etc; High-end Intelligence, Like Unmanned Driving and Beidou Precision Agriculture; also Automation like CVT and Power Gear Shift etc. Products range: 15hp-200hp Farm Tractors and Other Farm Machines.
FAQ
Q1: Are you the factory or the trading company?
A1: We are the factory,we located in Taian City,Shandong Province,China.
A1: We are the factory,we located in Taian City,Shandong Province,China.
Q2: What after-sales service can your company provide?
A2：We can provide technical support and on-site installation support!
A2：We can provide technical support and on-site installation support!
Q3: Can you provide spare parts for free?
A3: Of course.
A3: Of course.
Q4:Can you provide OEM?
A4: Yes,we can.
A4: Yes,we can.
Q5:How about the delivery time?
A5:5-15 days according to the different quantity.
A5:5-15 days according to the different quantity.
