Viscous dampers are an essential component in modern structural engineering, designed to reduce vibrations and enhance the stability of buildings, bridges, and other infrastructure subjected to dynamic forces. These devices work by dissipating the kinetic energy of oscillating systems, converting this energy into heat through a viscous fluid, usually oil or a specialized liquid. In doing so, they help control motion, mitigate structural damage, and improve safety, comfort, and durability.
In essence, a viscous damper absorbs and dissipates the energy associated with vibrations caused by external forces like seismic events, wind, traffic, or machinery. These dampers have found applications across a wide range of industries, from earthquake engineering to high-rise buildings, sports arenas, and even in machinery and aerospace.
How Viscous Dampers Work
The core principle behind viscous damping is relatively simple: it involves the movement of a piston through a viscous fluid. When the piston moves, the fluid’s resistance to the piston’s motion generates a force opposite to the direction of motion. This force is what slows down and eventually dampens the oscillatory motion.

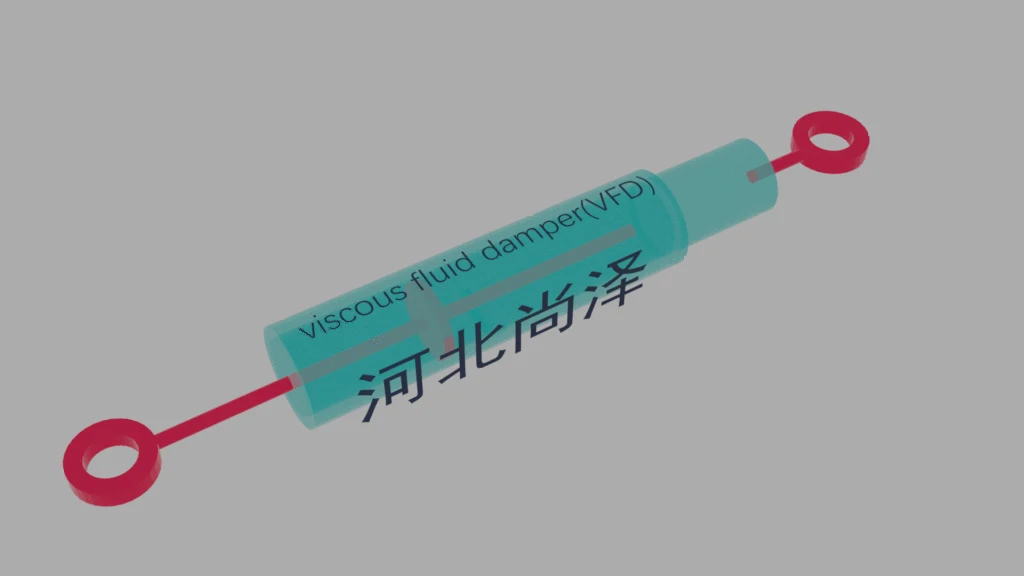

Viscous dampers consist of a cylinder filled with fluid, and inside the cylinder is a piston or vane connected to a moving part of the structure. As the structure moves due to dynamic loads (such as wind or seismic activity), the piston moves through the fluid. The resistance offered by the fluid converts the kinetic energy from the motion into heat, which is then dissipated. This energy dissipation reduces the amplitude of the oscillations, effectively “damping” the vibrations.
The degree of damping depends on the viscosity of the fluid and the speed at which the piston moves. The force exerted by the damper is typically proportional to the velocity of motion, making viscous dampers effective across a wide range of frequencies and displacements.
Types of Viscous Dampers
Viscous dampers come in various designs and types, each optimized for specific applications. The two most common types are:
- Fluid Viscous Dampers: These dampers use a thick, viscous fluid (often silicone-based) to create resistance. The fluid flows through a series of orifices or valves within the damper, and its viscosity determines how much energy is dissipated. Fluid viscous dampers are commonly used in high-rise buildings and bridges to control vibrations caused by wind or seismic activity.
- Viscoelastic Dampers: Viscoelastic dampers combine the principles of both viscous and elastic damping. These dampers use materials that exhibit both viscous and elastic properties. The advantage of viscoelastic dampers is that they can provide significant damping across a broad range of frequencies, making them suitable for structures subjected to diverse dynamic forces.
In addition to these basic designs, some specialized dampers are tailored for specific engineering needs, such as seismic dampers, tuned dampers, and hybrid dampers. Hybrid systems combine the benefits of multiple damping technologies, including viscous, friction, and mass-based damping.
Applications of Viscous Dampers
Viscous dampers are primarily used to mitigate dynamic vibrations in structures, improving their safety, comfort, and longevity. Below are some of the key areas where viscous dampers are commonly employed:
- Seismic Protection: One of the most prominent applications of viscous dampers is in earthquake engineering. Seismic events generate powerful forces that can cause severe damage to buildings and infrastructure. By installing viscous dampers in strategic locations within a structure, such as between floors or at joints, engineers can reduce the amplitude of seismic waves, preventing excessive sway and minimizing structural damage. In some cases, viscous dampers are even integrated into the foundation of buildings to protect against ground motion.
- Wind-Induced Vibrations: Tall buildings and bridges are particularly susceptible to wind-induced vibrations, which can lead to discomfort for occupants and potential structural fatigue over time. Viscous dampers help reduce the sway caused by wind loads, improving occupant comfort and ensuring the long-term stability of the structure. For instance, skyscrapers in windy cities often feature viscous dampers to maintain stability in gusty conditions.
- Bridge Engineering: Bridges are subject to vibrations caused by traffic loads, wind, and seismic forces. The dynamic motion of vehicles, especially trucks or trains, can induce oscillations in the bridge structure. By incorporating viscous dampers into the design, engineers can reduce these vibrations, improving the safety and durability of the bridge while enhancing the comfort of users.
- High-Rise Buildings: High-rise buildings, particularly those in areas with high wind or seismic activity, rely on viscous dampers to maintain structural integrity and comfort. These dampers are often placed between floors or at the base of the building to counteract building sway, reducing the risk of damage to the structure and minimizing the discomfort felt by occupants during strong wind events or minor tremors.
- Industrial Applications: In industrial settings, machinery or equipment that operates under high loads or fluctuating speeds can generate vibrations that affect performance or damage the components. Viscous dampers are used in machinery to control these vibrations, ensuring smoother operation and prolonging the lifespan of the equipment.
- Offshore Structures: Offshore platforms and structures are exposed to dynamic forces from waves, wind, and seismic activity. Viscous dampers are used to mitigate the impact of these forces, ensuring the stability of the structure and preventing excessive motion that could lead to safety issues or operational disruptions.
Advantages of Viscous Dampers
Viscous dampers offer several distinct advantages that make them a popular choice in structural engineering:
- Effective Across a Range of Frequencies: Unlike some other damping systems, such as friction dampers, which are most effective at specific frequencies, viscous dampers work well over a broad range of frequencies. This makes them versatile and applicable in many different contexts, whether it’s mitigating the effects of a low-frequency earthquake or reducing high-frequency vibrations from wind.
- Energy Dissipation: Viscous dampers are highly effective at dissipating energy, converting it into heat that is then safely absorbed by the fluid. This helps reduce the potential for structural damage caused by excessive motion, making them particularly useful in seismic and wind-resilient building designs.
- Minimal Maintenance: Once installed, viscous dampers require minimal maintenance. The sealed nature of the damper, combined with the stability of the fluid used, means that these devices can continue to perform effectively for many years without significant wear or degradation.
- Customizable: The damping force of viscous dampers can be tailored to meet the specific needs of a project. By adjusting the properties of the fluid, the damper can be fine-tuned to provide optimal performance for a given structure or set of dynamic forces.
- Compact Design: Viscous dampers are generally compact and can be incorporated into the existing structural design without requiring significant modifications. This makes them ideal for retrofitting existing buildings and infrastructure, as well as for new construction.
Conclusion
Viscous dampers are an indispensable tool in modern engineering, providing an effective means of controlling vibrations and enhancing the resilience of structures against dynamic forces. Their ability to dissipate energy across a wide range of frequencies, combined with their versatility, low maintenance requirements, and customizable design, makes them a key component in the construction of earthquake-resistant buildings, wind-resistant skyscrapers, and other structures exposed to dynamic loading. As urbanization increases and the demand for resilient infrastructure grows, the role of viscous dampers in ensuring safety and sustainability in engineering will continue to expand, helping to protect both people and buildings from the forces of nature.
